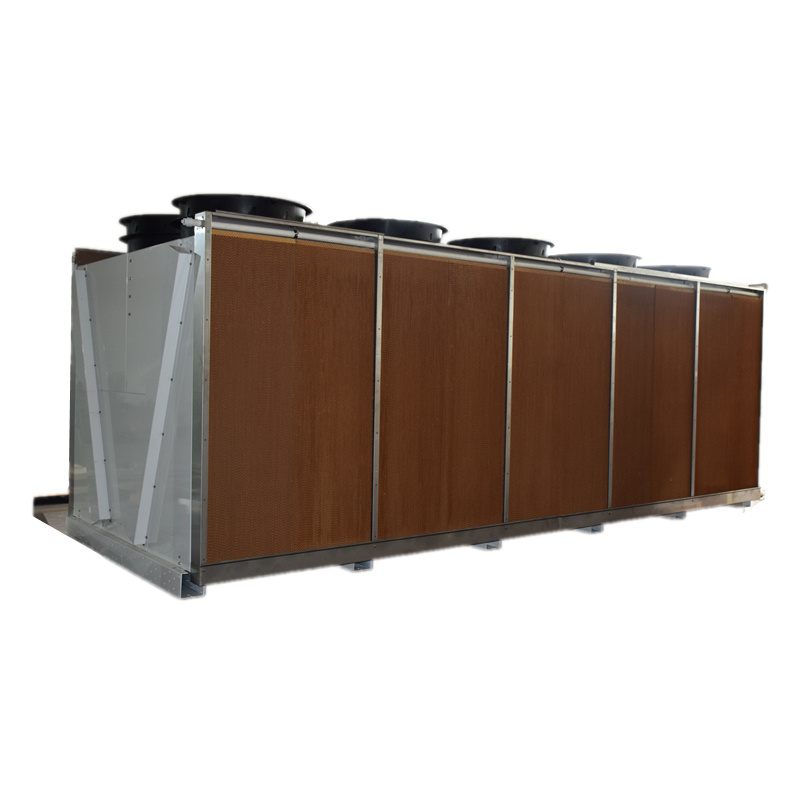

Horizontal Installation Dry Cooler With Adiabatic Cooling System

Horizontal Installation Dry Cooler With Adiabatic Cooling System

FOB Reference Price: Get Latest Price

≥1 Pieces

US $2500

≥5 Pieces

US $2300

≥10 Pieces

US $2000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Shanghai, China

Brand Name:: CST

Weight (KG):: 300 KG

Fin type:: Wave fin, flat fin,windown fin, and so on

Tube diameter::: According to the tube mold (5/8" and so on)

Dimensions:: Customized

After-sales Service Provided:: Free spare parts, Video technical support, Online support

Application:: data center, power plant, sewage treatment plant

Material:: Copper, Stainless steel,Galvanized stee, Aluminum

Quick Details

Type:: Adiabatic cooler

Mounting:: Floor Standing

Airflow:: 3500m³/h

Place of Origin:: Shanghai, China

Brand Name:: CST

Weight (KG):: 300 KG

Fin type:: Wave fin, flat fin,windown fin, and so on

Tube diameter::: According to the tube mold (5/8" and so on)

Dimensions:: Customized

After-sales Service Provided:: Free spare parts, Video technical support, Online support

Application:: data center, power plant, sewage treatment plant

Material:: Copper, Stainless steel,Galvanized stee, Aluminum

Discount/Promotion !!!

How to get Gift cards

or Merchandise voucher ?

1. Contact us in Alibaba website

2. Send us an inquiry

We can't wait to send you a gift !!!

Please kindly contact us!!!

Thank you!!!

Client feedback:

All of customers feedback is that the actual cooling performance is almost the same as the theoretical design value.

Japan data center

New Zealand water plant

Saudi Arabia project

What is a dry cooler?

Our range of Dry Air Coolers and Air Blast Radiators are designed for commercial and industrial fluid cooling applications. We offer a wide range of options enabling us to provide the most cost-effective solution for your cooling requirement.

Standard arrangements include flat-bed vertical or horizontal airflow with V and W configurations to offer the smallest footprint.
Whether your application is cooling water / glycol for water cooled chillers, injection moulding machines, furnace equipment, CHP Engine Cooling or any other process. One or more of our units can be selected to give the most cost-effective solution to suit your space and noise requirement.
Energy saving free cooling is possible for much of the year for many applications.
The wetted surface – Adiabatic Cooling option enables water to be cooled to within 6 °C of ambient wet bulb, water is used to increase the cooling effect when the ambient dry bulb is 3°C above the design wet bulb – for most of the year the unit operates as a conventional air blast cooler.
Specifications can be tailored to suit each application, with different materials, sizes, noises and cooling mediums available.

Tube fin dry coolers

Unique floating coil design avoids leakage caused by thermal expansion and contraction.
Staggered fin pattern design and corrugated fin enhance air flow turbulence.
Inner-grooved copper tube increase heat transfer area and enhance heat transfer.
Optimized flow pass design ensure fully heat exchange with refrigerant.
Equipped with 2nd generation owl-wing fan motor as standard. It features with low noise level, large volume flow and low energy consumption. Ready for dual speed connection.
Outdoor type power coated housing made of galvanize steel and stainless steel bolts providing a high resistance to corrosion.

Optional features:
EC variable speed fan motor-- save lot of energy
ZAplus/ Axi Top for greater volume flow and extreme silence
Adiabatic system significantly reduce energy consumption in summer
Epoxy coated or Hydrophilic aluminum fin suitable for coastal or high corrosion area
Fluid dry cooler
Clean stainless steel tube and aluminum fin coil for cooling deionized water

Perfect raw materials:

Fins

• Material:

Aluminum, Copper, Stainless steel
Hot deep carbon steel, Titanium

• Coating:

Hdrophilic, Epoxy coated, bare, E-coating

• Thickness:

0.1-2 mm

Tubes

• Material：

Aluminium, Copper, Stainless steel, Cu-Ni, Titanium

• DIameter:

9.52mm, 12 mm, 12.7mm, 15.8, 20mm, 25mm

• Wall tnickness:

0.2-5 mm

Frame and Casing:
• Material:

Galvanized steel, Aluminium, Stainless steel, Copper,Brass

• Thickness:

1 – 5 mm

How we design for you?

We promise we use the design software sold by a well-known European HAVC software company.
Through 8 years of cooperation with them, we have designed, processed and exported coils and dry coolers to various countries all around the world.

All of customers feedback is that the actual cooling performance is almost the same as the theoretical design value.

We will send you the 3D drawing, data sheet together with the quotation list as you required.

Case study

Projects name: Dry cooler for Australia waste treatment station

Customer's request: Outdoor temp -20 to +30 driving all year, Water 10000 liters/houer In temp 80dg Out about 40c, Fan power: 400volt 50Hz, Montage on the roof outdoor we have 3” pip up and down, Size inside 20 feet container

Our first solution:

Customer's first feedback: This is a plane cooler, I want v type. I want about 2 meter x 5 meter v type. I want to have as big as possible V type. I’m going to montage more hydraulic pumps now. I don’t know what I need but pleas offer 1 ho fits in 20 feet container and then I fix the rest here in Sweden. To day we have 10 m3/h, But I can have less if you want. We are cooling water and then oil from the water.

Our reply: The cooler we designed is enough to cool the 10m3/h water. Will you increase the flow rate in the future? Of course we can change our design to a V-type cooler.

Customer: Yes we will total have 40m3 Water in the future but maybe its better to take 2pc v type for 20m3 Please offer 2pc v type for 20m3/h.

Our second solution:

Customer's reply: Looks really good, please send me PI.

Our Factory

VRCOOLERTECH CST Company

We specialize in designing , manufacturing and exporting r efrigeration equipments for the varied industries since 2004 .

When it comes to building heat exchanger for any application VRCOOLERTECH CST Company has the capability to meet your requirements. If you need a heat exchanger using water, steam, refrigerant, glycol, ammonia, CO2 or any other medium, CST Company can build it for you. We build heat exchanger for replacement of existing heat exchanger or for new jobs, as well. We make standard copper tube / aluminum fin commercial heat exchanger and we build heavy industrial heat exchanger for process applications. You will be hard-pressed to come up with a job we can't handle.

How to contact and visit us?

Changzhou Vrcoolertech Refrigeration Co.,Ltd
CST Heat Exchanger Co.,Ltd
Address: Xinsheng Road 56, Luoyang, Changzhou, China. （Near Shanghai）
E-mail: totoro@cstheatexchanger.com info@cstheatexchanger.com

Our machines

Certifications

Test Report & Certifications

Leak test report:Before package, we will do the pressure test in the pool to check if the product leak. (Process: Connect the inlet/outlet of the product to the tube s then put nitrogen in it, and put the product in water. If there is no bubbling, there is no leak.)

Pressure Test Report: Under the pressure test, this product has no leakage; no visible abnormal deformation; no abnormal noise; the test conclusion is qualified.

ISO 9001 Certifications

Packing & Delivery

Packaging
Size	According to the product
Weight
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Where our customers come from？

We serve for buyers from all over the world.

We have export our product to moran than 60 countries .

FAQ

Q1: What is your strength ?
A: Design and manufacture.

Q2: How long is your delivery time?
A:Different products' production time is different. Generally, it needs 10 to 40 working days.

Q3: What is your terms of payment ?
A:50% TT deposit in advance, 50% TT balance before delivery.
We provide Alibaba Trade Assurance Service. Welcome for more advise.

Q4: Any other products except charge air cooler ?
A: Yes.
Our 3 main products are: Condenser and Evapotator, Industrial air cooler and Unit cooler and Coil.

Q5. How to contact with you ?
A: 24hours online from TradeManager, quick answer, or email with us, wechat, skype, whatsapp is available.
