Quick Details
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
500*500*600mm - Customized,, depend on the model, 820*900*950mm,
-
Weight:
-
5000 KG
-
Flotation machine Application:
-
Roughing ,scanveging,and cleaning
-
Effective volume(square meter):
-
1.1 m3
-
Impeller Dia:
-
350 mm
-
Sprial speed:
-
0.7 m3
-
Processing capacity:
-
0.2-0.4square meter/min
-
Processing Ability (m3/min):
-
0.2-0.4
-
Application:
-
Gold Ore, cooper, iron, tin
-
Inside dimensions:
-
0.74*0.74*0.75
Quick Details
-
Production Capacity:
-
98%
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hengchang
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
500*500*600mm - Customized,, depend on the model, 820*900*950mm,
-
Weight:
-
5000 KG
-
Flotation machine Application:
-
Roughing ,scanveging,and cleaning
-
Effective volume(square meter):
-
1.1 m3
-
Impeller Dia:
-
350 mm
-
Sprial speed:
-
0.7 m3
-
Processing capacity:
-
0.2-0.4square meter/min
-
Processing Ability (m3/min):
-
0.2-0.4
-
Application:
-
Gold Ore, cooper, iron, tin
-
Inside dimensions:
-
0.74*0.74*0.75
Product Description

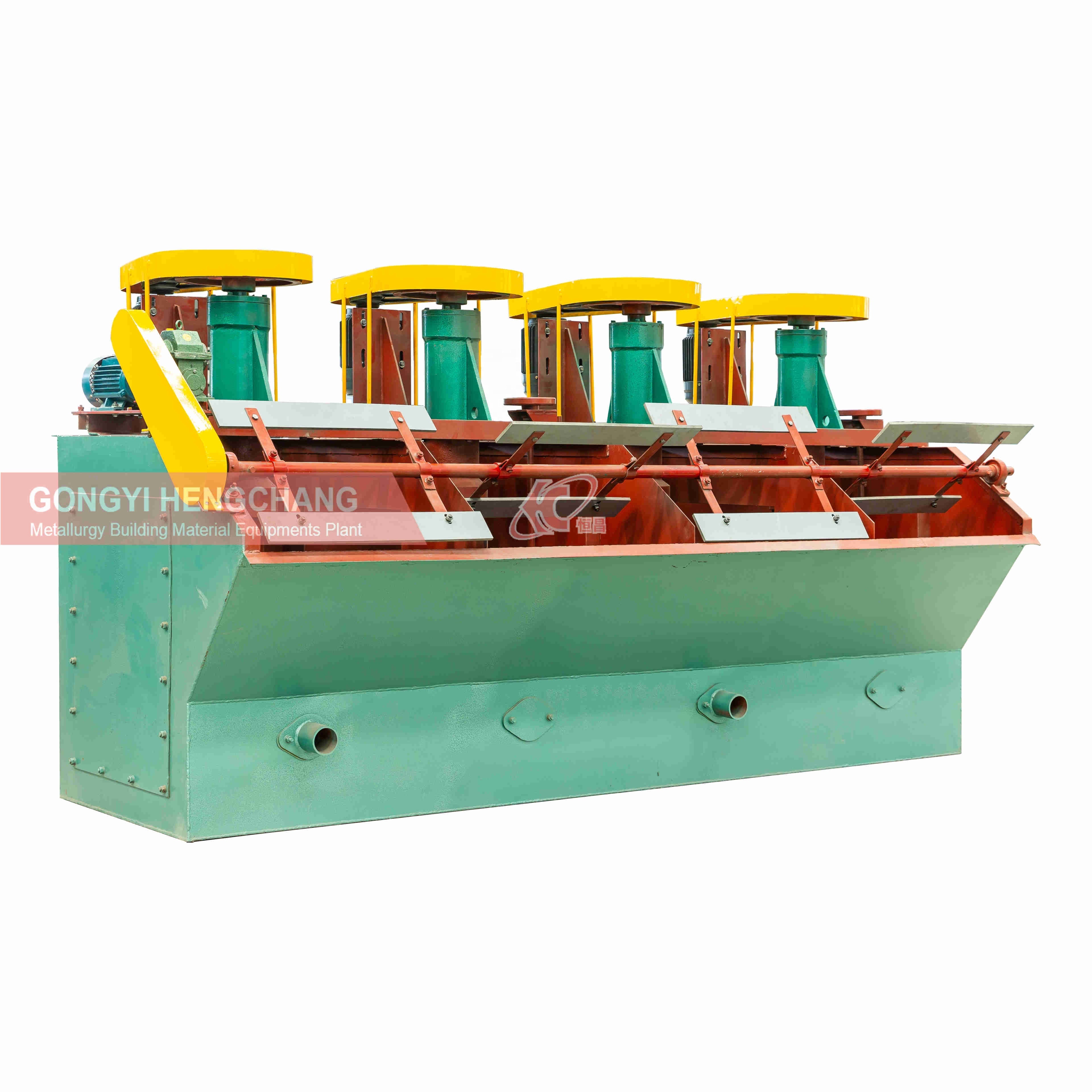

widely used small mini copper ore coal washing flotation machine for sale
Flotation machine, in the ore dressing, mainly used for separating copper, zinc, lead, nickel, gold and other Non-ferrous metal,can also be used for ferrous, non-metallic crude and selected.
After mixing the crushed ore with water and flotation reagent, the ore is mixed into a slurry tank, which is filled with air to form a large number of air bubbles. Some mineral particles which are not easily wet by water attach to the air bubbles and float to the surface of the pulp together with the air bubbles the formation of mineralized bubble layer, some easy to be water wet, hydrophilic mineral particles not attached to the bubble, and stay in the
pulp, will contain specific minerals mineralized bubble discharge, so as to achieve the goal of mineral processing.
pulp, will contain specific minerals mineralized bubble discharge, so as to achieve the goal of mineral processing.
|
Model
|
Volume
|
Cell size
|
Impeller Dia.
|
Impeller speed
|
Capacity
|
Motor Power (kw)
|
|
Single cell weight
|
|
|
|
(m3)
|
(mm)
|
(mm)
|
(r/min)
|
(m3/min)
|
Agitator
|
Scraper Blade
|
(kg)
|
|
|
SF-0.37
|
0.37
|
700×700×750
|
296
|
386
|
0.2-0.4
|
1.5
|
0.55
|
468
|
|
|
SF-0.7
|
0.7
|
820×900×950
|
350
|
400
|
0.3-0.9
|
3
|
1.1
|
805
|
|
|
SF-1.2
|
1.2
|
1100×1100×1100
|
450
|
312
|
0.6-1.2
|
5.5
|
1.1
|
1373
|
|
|
SF-2.8
|
2.8
|
1700×1600×1150
|
550
|
268
|
1.5-3.5
|
11
|
1.5
|
2138
|
|
|
SF-4
|
4
|
1850×2050×1200
|
650
|
220
|
2--4
|
15
|
1.5
|
2582
|
|
|
SF-8
|
8
|
2200×2900×1400
|
760
|
191
|
4--8
|
30
|
1.5
|
4129
|
|
|
SF-10
|
10
|
2200×2900×1700
|
760
|
191
|
5--10
|
30
|
1.5
|
4486
|
|
|
SF-16
|
16
|
2850×3800×1700
|
760
|
191
|
5--16
|
45
|
1.5
|
8320
|
|
|
SF-20
|
20
|
2850×3800×2000
|
760
|
191
|
5--20
|
30x2
|
1.5
|
9828
|
|
Product Application
The flotation machine is mainly used for sorting non-ferrous metals such as copper, zinc, lead nickel and gold, and can also be used for rough selection and selection of ferrous and non-metal.
The motor is driven by the motors V-belt drive to rotate the impeller, which generates centrifugal force to form a negative pressure On the one hand, it absorbs sufficient air to mix with the slurry.
On the one hand, it mixes the slurry with the drug, and refines the foam to make the mineral bond foam Mineralized foam is formed on the slurry surface.
Adjust the height of the shutter and control the liquid level so that the useful foam is scraped off by the scraper.
Product Details
1).Large inhaling capacity and low consumption.
2).Complete flotation circuit with inhaling air and slurry, no auxiliares are needed.
3).Process is easy to be changed.
4).Reasonable circulation of slurry decreases coarse sand sedimentation.
5).Automatic controlling device makes adjustment more convenient.
2).Complete flotation circuit with inhaling air and slurry, no auxiliares are needed.
3).Process is easy to be changed.
4).Reasonable circulation of slurry decreases coarse sand sedimentation.
5).Automatic controlling device makes adjustment more convenient.
Working Principle
When the flotation machine works, the motor drives the impeller to revolve, so the centrifugal effect and negative pressure are
produced. On one hand, ample air is absorbed and mixed with mineral slurry, on the other hand, the mixed mineral slurry is mingled
with additive, meanwhile, the foams are thinning, the mineral is bounded with foams, and floats up to the surface of mineral
slurry and the mineralized foam is formed. The liquid surface can be adjusted with the height of adjustment flashboard, so that
the useful foams are scraped with squeegee.
produced. On one hand, ample air is absorbed and mixed with mineral slurry, on the other hand, the mixed mineral slurry is mingled
with additive, meanwhile, the foams are thinning, the mineral is bounded with foams, and floats up to the surface of mineral
slurry and the mineralized foam is formed. The liquid surface can be adjusted with the height of adjustment flashboard, so that
the useful foams are scraped with squeegee.
6 Types of Gold Ore
Gold exists in quartzite. Usually, quartz appears as small stones in large cracks in riverbeds or mountain slopes and has crystals in different colors such as white, yellow, pink, purple, gray, or black.The most common types of quartz with gold ore are rose
quartz gold ore and rainbow gold ore.
Gold exists in quartzite. Usually, quartz appears as small stones in large cracks in riverbeds or mountain slopes and has crystals in different colors such as white, yellow, pink, purple, gray, or black.The most common types of quartz with gold ore are rose
quartz gold ore and rainbow gold ore.
A high gold-quartz ore contains 25% gold by mass, and it occurs in areas where the bedrock is fractured by tectonic and volcanic activity.
Flotation beneficiation plant:
Flotation beneficiation is a sorting method based on different physical and chemical properties of the mineral particles.
Flotation is widely used in fine-grained disseminated metallic minerals, nonmetallic minerals, chemicals and other mineral soring. Another important area which widely use flotation is to reduce ash and fine-grained pyritein the coal .
Process of flotation beneficiation:
1.Ore crushing;
2.The crushed material was sent to ball mill for grinding;
3.Classified:Granule with unsuitable size will be sent back to the ball mill , while suitable ones will be sent to the flotation system;
4.Some medicament agent will be added to separate target material from others;
5.After going through the flotation system , they will be concentrated and filter pressed, and then get the final products 6.The whole process is finished.
