Manual Insertion Kiosk IC RF Magnetic Card Reader Writer

Manual Insertion Kiosk IC RF Magnetic Card Reader Writer

FOB Reference Price: Get Latest Price

≥1 Pieces

US $75

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Supported Cards:: Chip/RFID card read/write, Magnetic card read only

Chip Card Standard:: ISO7816 standard certified, EMV2000 Level1, PBOC3.0

RF Card Standard:: ISO14443 Type A & Type B compliant

Magnetic Card Standard:: ISO7810 and 7811 compliant

Interface:: RS-232 / USB

Power supply:: DC5V±5%

Net Weight:: 240g

Quick Details

Place of Origin:: China

Brand Name:: PROVA

Name:: Kiosk Card Reader/Writer CRT-284

Supported Cards:: Chip/RFID card read/write, Magnetic card read only

Chip Card Standard:: ISO7816 standard certified, EMV2000 Level1, PBOC3.0

RF Card Standard:: ISO14443 Type A & Type B compliant

Magnetic Card Standard:: ISO7810 and 7811 compliant

Interface:: RS-232 / USB

Power supply:: DC5V±5%

Net Weight:: 240g

General View:

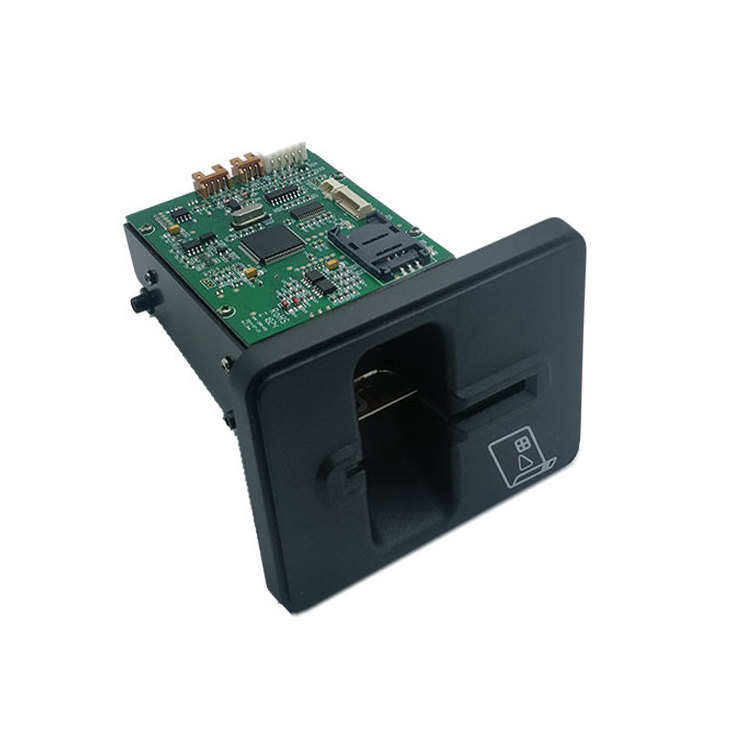

CRT-288-K is a manual insertion card reader with controlled card latch. CRT-288-K can read /write chip card and 13.56Mhz RFID card, and also read magnetic card. It can be use in many fields such as:

ATM Terminal

Multimedia kiosk Terminal

Access control system

Vending machine

Gaming machine

Main Features:

1. Read magnetic stripe cards, read/write ISO standard RFID cards and chip cards.
2. Electric lock and release function. Card can be latched after insertion unless the user pull with force over 25N.

3. RS232/USB interface can be automatically detected.
4. Agile magnetic card reading method: Read when insert and withdraw the card. Data is uploaded actively.

5. Life time: >500,000 times for the reading of each components.
6. Customization service is available

Specification	Description
Card standard	IC card standard: ISO7816 standard certified, EMV2000 Level1, PBOC3.0 e.g.(AT24C01, 24C02, 24C256, SLE4447, SLE4428, CPU T=0/T=1) Magnetic card standard : Physical characteristics: ISO7810 and 7811 standards compliant Card dimensions: ISO7810ID-1- type card compliant Embossing: ISO7811-1, ISO7811-3 compliant Recording format: ISO7811-2, ISO7811-4, ISO7811-5, ISO7811-6 complaints RFID card standard: ISO14443-3 compliant (TYPE A:e.g. S50,S70,UL etc ) ISO14443-4 compliant(TYPE A CPU, TYPE B CPU e.g. Mifare plus,Mifare DesFire etc)
Card Dimension	Width: 53.92~54.18 mm Length: 85.47~85.90 mm Thickness: 0.76mm ± 0.08 mm
Life time	Magnetic head: >500,000 times reading. IC card contact slot: >500,000 times insertion. Latch Mechanism: 500,000 times Min
Error Rate	Magnetic card: <1/1,000(15~25°C, 35~60%RH, perfect and standard card) IC card: <1/1,000(15~25°C, 35~60%RH, perfect and standard card) RFID card: <1/10,000 (15~25°C,35~60%RH,perfect and standard card)
Abnormal Card	Allowance of card warp: 2mm max.
Reliability	A.Vibration: No negative effort on all functions under normal condition after exposed 15 mins.Each on X, Y and Z directions of 2mm amplitude, from 5 to 50Hz/min vibrate and acceleration is 2m/S² (0.2G). B.Shock: No negative effort on all functions under normal condition after shock one time on X, Y and Z directions of 294M/S², 11ms peak acceleration shock.
Communication	RS232 or USB Interface (Automatically detect)
Power supply	DC 5V ±5%
Power Consumption	Working current: <200mA
Net Weight	Approx. 240g(Excluding accessory and package)
Temperature/Humidity	Operation:0~50℃ , 0~90%RH(No condensing) Storage: -25~80 ℃, 0~95%RH(No condensing) Normal Environment: 15~25℃, 35%~60%RH
