Quick Details
-
Voltage:
-
380V 50HZ
-
Power:
-
2.6KW
-
Weight:
-
350 KG
-
Dimension(L*W*H):
-
1100*1700*1700mm
-
Function:
-
Automatic Vacuum Meat Tumbler Machine
-
Material:
-
SUS304 Stainless Steel
-
Advantage:
-
Easy Operation High Efficiency
-
MOQ:
-
1 Set
-
After Warranty Service:
-
Online Technical Support
-
Certification:
-
ISO 9001
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
DARIBO
-
Production Capacity:
-
120KG~220KG
-
Voltage:
-
380V 50HZ
-
Power:
-
2.6KW
-
Weight:
-
350 KG
-
Dimension(L*W*H):
-
1100*1700*1700mm
-
Function:
-
Automatic Vacuum Meat Tumbler Machine
-
Material:
-
SUS304 Stainless Steel
-
Advantage:
-
Easy Operation High Efficiency
-
MOQ:
-
1 Set
-
After Warranty Service:
-
Online Technical Support
-
Certification:
-
ISO 9001
Products Description

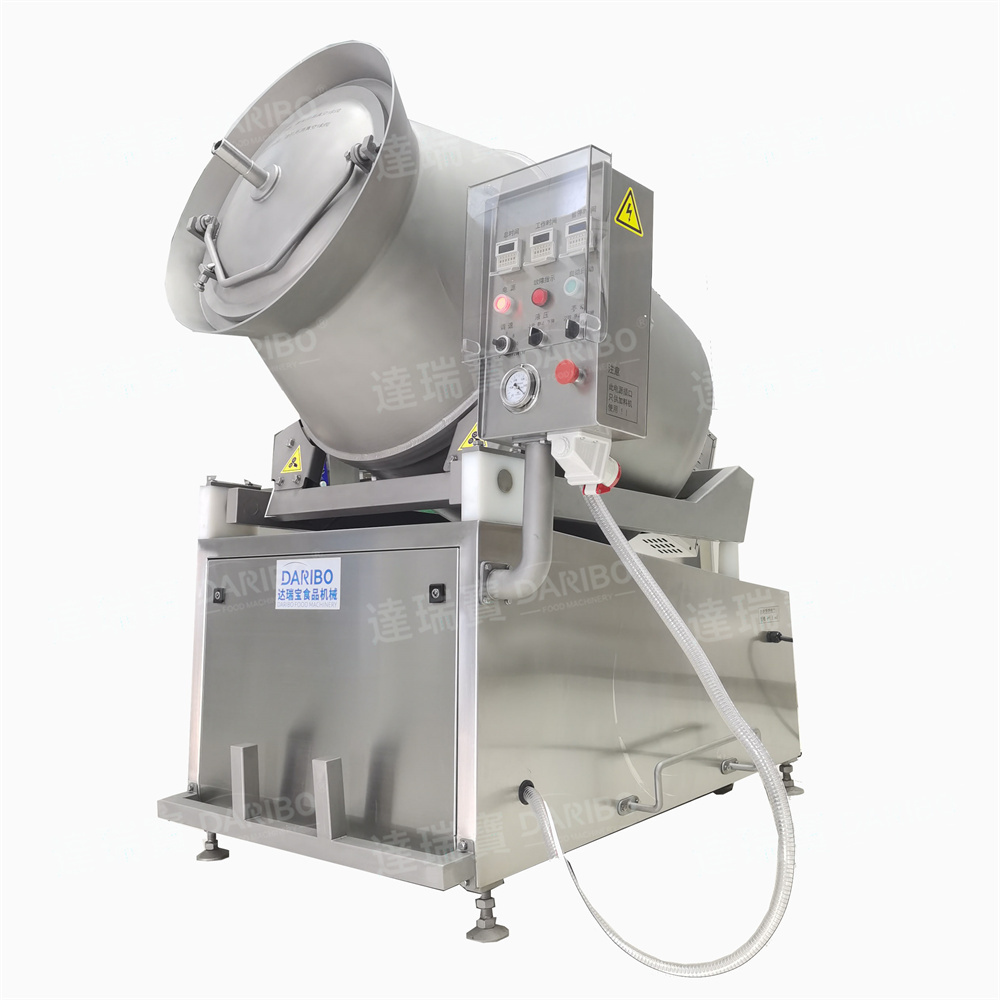

Hydraulic Vacuum Tumbler
Tilted drum
30% larger load compared to horizontal,classic tumblers,adjustable slope as an additional parameter,for controlling ,technological
parameters,possibility of work automation.
Hydraulic system
hydraulic drum lifting and lowering system,automatic work programing,high reliability and long life,easy service access to all system components
Vacuum system
oil vacuum pumps as standard
DRB-GRY series is for meat to marinade and curing, processing by the vacuum function, it could shorten the marinade time than traditional ways, it also the one of fashion meat processing machine for meat plant. This suitable for all kind of fresh meat like beef, mutton, chicken ,seafood and pork meat ...
With different tumbler volume, what you get is different capacity. the speed of vacuum tumbler with constant speed and frequency conversion are optional(more please confirm with us), the machine controlled panel langauge supported Chinese and English version.
Also, the machine with touching panel, easy to operate and setting value.
Easy operation and cleaning, the machine is made of full SUS 304.
|
Model
|
DRB-GRY800L
|
|
Voltage
|
380V50HZ
|
|
Power
|
3.3KW
|
|
Dimension
|
2240*1405*1710mm
|
|
Net weight
|
690kg
|
|
Max Vacuum Degree
|
- 0.085Mpa
|
|
Capacity
|
450KG/Time
|
|
Volume
|
800L
|
|
Drum Speed
|
1-12 rpm/min
|
|
Model
|
DRB-GRY350L
|
|
Voltage
|
380V50HZ
|
|
Power
|
2.6KW
|
|
Dimension
|
1100*1700*1700mm
|
|
Net weight
|
350kg
|
|
Max Vacuum Degree
|
- 0.085Mpa
|
|
Capacity
|
220KG/Time
|
|
Volume
|
350L
|
|
Model
|
DRB-GRY750L
|
|
Voltage
|
380V50HZ
|
|
Power
|
3.7KW
|
|
Dimension
|
1260*1950*1680mm
|
|
Net weight
|
600kg
|
|
Max Vacuum Degree
|
- 0.085Mpa
|
|
Capacity
|
450KG/Time
|
|
Volume
|
750L
|
|
Model
|
DRB-GRY1200L
|
|
Voltage
|
380V50HZ
|
|
Power
|
4.8KW
|
|
Dimension
|
1350*2450*1730mm
|
|
Net weight
|
900kg
|
|
Max Vacuum Degree
|
- 0.085Mpa
|
|
Capacity
|
720KG/Time
|
|
Volume
|
1200L
|
Details Images
The Drums Inside
Cover of Vacuum Tumbler
warning icon
filter
Material car interface
The Panel
Automatic Lifter
vacuum pipe
Finished Product
Suitable for all kind of meat, such as pork, beef, lamb and so on.
package packing
Certifications
Customer Feedback & Delivery
Our product with a good reputation in both domestic and oversea market , what we got is base on our quality and service, for delivery, we support ship by sea, transfer by air and express by DHL, FedEx , TNT and so on. or you can let your forwarder to contact us as well.
