Quick Details
-
Warranty:
-
36 Months
-
Loading Capacity:
-
2700kg
-
Color:
-
Blue.Red.Grey
-
Certification:
-
ce
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XPROMISE
-
Model Number:
-
XP-1127
-
Warranty:
-
36 Months
-
Loading Capacity:
-
2700kg
-
Color:
-
Blue.Red.Grey
-
Certification:
-
ce
Product Description

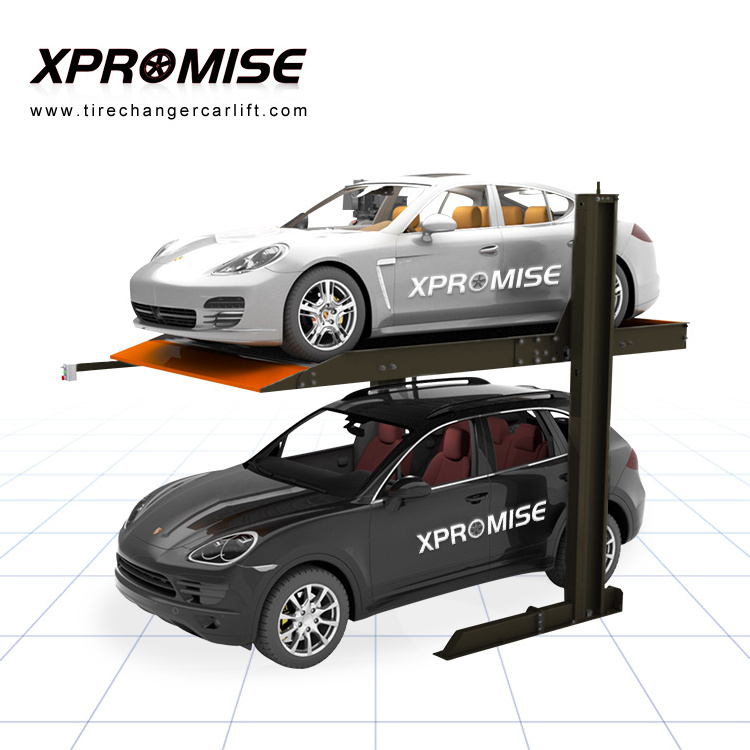

HE-1127 are the most popular parking stackers. quality proven by more than 20,000 users in past 10 years. They provide a simple and greatly cost-effective way to create 2 dependent parking spaces above each other. suitable for permanent parking. valet parking. car storage. or other places with attendant. Operation can be easily made by a key switch panel on control arm.
Specification
|
Vehicles parked per unit
|
2
|
Power supply
|
100-480V. 1/3P. 50/60Hz
|
|
Rated capacity
|
2700kg
|
Finishing
|
Power coating with Akzo Nobel powder
|
|
Available car length
|
5000mm
|
Pump motor power
|
2.2Kw
|
|
Available car width
|
1850mm
|
Pump flow
|
2.6ML/r
|
|
Available car height
|
2050mm
|
Pump working pressure
|
16-17MPa
|
|
Drive mode
|
Hydraulic cylinder+chains
|
Hydraulic cylinder
|
Italian Aston seals
|
|
Operation
|
Key switch
|
Hydraulic oil
|
L-HV 46#
|
|
Lifting speed
|
<50s
|
Lifting chain
|
LH1266
|
|
Descending speed
|
>35s
|
Balance chain
|
LH1066
|
Product Feature
1.Lifting capacity 2700 kg.
2.Car heights on ground up to 2050 mm.
3.Platform width up to 2500 mm.
4.Lifting height adjustable by limit switch
5.Electric auto lock release enables easier operation .
6.24 V control voltage avoids electric shock .
7.Galvanized platform, high-heel friendly.
8.Bolts & nuts passing 48 hrs Salt Spray Test.
9.Driven by hydraulic cylinder + Korean lifting chain.
10.Synchronization chain keeps platform level under all conditions.
11. Akzo Nobel powder coating provides long lasting superficial protection.
12.Proven high end quality with CE certificate tested by TUV.
2.Car heights on ground up to 2050 mm.
3.Platform width up to 2500 mm.
4.Lifting height adjustable by limit switch
5.Electric auto lock release enables easier operation .
6.24 V control voltage avoids electric shock .
7.Galvanized platform, high-heel friendly.
8.Bolts & nuts passing 48 hrs Salt Spray Test.
9.Driven by hydraulic cylinder + Korean lifting chain.
10.Synchronization chain keeps platform level under all conditions.
11. Akzo Nobel powder coating provides long lasting superficial protection.
12.Proven high end quality with CE certificate tested by TUV.
Width Calculation:
Unit A
|
Total width required
|
Clear platform width
|
|
2547
|
2100
|
|
2647
|
2200
|
|
2747
|
2300
|
|
2847
|
2400
|
|
2947
|
2500
|
Unit A+B
|
Total width required
|
Clear platform width
|
|
4929
|
2100
|
|
5129
|
2200
|
|
5329
|
2300
|
|
5529
|
2400
|
|
5729
|
2500
|
Unit A+B+B
|
Total width required
|
Clear platform width
|
|
7311
|
2100
|
|
7611
|
2200
|
|
7911
|
2300
|
|
8211
|
2400
|
|
8511
|
2500
|
Product Details
Notes
1.Do lubrication on guide rail and guide pulley once per month.
2.Do lubrication on balance chain once per month.
3.Change all the hydraulic oil three months after first operation;and change oil every nine months after first changing.
4.Frequently check the screw nuts of bolts fixing the electromagnet and locking plate, if any screw nut is loosening please fasten it asap.
5.If any noise comes out from electromagnet, please replace it asap
6.The seal in hydraulic cylinder should be replaced every two years.
7.The roller and sliding block should be replaced every two years.
8.The valve element in solenoid valve and filter in power unit should be cleaned every half year.
9.Before operation, please check the connector of electromagnet if it's loosening please fasten it; then do testing on top limit switch and photocell sensor, if it cannot work please fix the problem, and if cannot fix it please replace it.
2.Do lubrication on balance chain once per month.
3.Change all the hydraulic oil three months after first operation;and change oil every nine months after first changing.
4.Frequently check the screw nuts of bolts fixing the electromagnet and locking plate, if any screw nut is loosening please fasten it asap.
5.If any noise comes out from electromagnet, please replace it asap
6.The seal in hydraulic cylinder should be replaced every two years.
7.The roller and sliding block should be replaced every two years.
8.The valve element in solenoid valve and filter in power unit should be cleaned every half year.
9.Before operation, please check the connector of electromagnet if it's loosening please fasten it; then do testing on top limit switch and photocell sensor, if it cannot work please fix the problem, and if cannot fix it please replace it.
