Quick Details
-
Application:
-
Mortar cement putty spraying
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YUGONG
-
Dimension(L*W*H):
-
1650*550*1200mm
-
Weight:
-
320kg 310kg
-
Power:
-
220V 380V
-
Product Name:
-
Mortar Spraying Machine
-
Production Capacity:
-
3-6m3/h
-
Volume:
-
50L-130L
-
Particle Diameter:
-
Below 5mm
-
Transmission Distance:
-
Horizontal 60m Vertical 30m
-
Air Compressor Exhaust:
-
3-6m3/h
-
Pressure:
-
2-5MPa
-
Main Motor Power:
-
5.5kw
-
Applicable Material Ratio:
-
0.7-1:1:3
-
Color:
-
Customizable
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support, Online support
-
Certification:
-
CE ISO
Quick Details
-
Max. vertical conveying distance:
-
50M
-
Max. horizontal conveying distance:
-
100M
-
Hopper Capacity:
-
100L
-
Application:
-
Mortar cement putty spraying
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YUGONG
-
Dimension(L*W*H):
-
1650*550*1200mm
-
Weight:
-
320kg 310kg
-
Power:
-
220V 380V
-
Product Name:
-
Mortar Spraying Machine
-
Production Capacity:
-
3-6m3/h
-
Volume:
-
50L-130L
-
Particle Diameter:
-
Below 5mm
-
Transmission Distance:
-
Horizontal 60m Vertical 30m
-
Air Compressor Exhaust:
-
3-6m3/h
-
Pressure:
-
2-5MPa
-
Main Motor Power:
-
5.5kw
-
Applicable Material Ratio:
-
0.7-1:1:3
-
Color:
-
Customizable
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support, Online support
-
Certification:
-
CE ISO
Mini spraying pump shotcrete machine concrete mortar plaster spraying machine
Mortar spraying machine , a kind of spraying machine can be called mortar sprayer, mortar spray equipment, cement mortar spraying machine, stucco machine which has a wide range of uses.
It is commonly used for indoor and outdoor wall spraying , cement mortar grouting , bridge grouting and waterproof, fireproof, ceiling, wall, paint, garden spraying , as well as relief effect coating , sound-absorbing material spraying, waterproof plugging and filling .
The mortar spraying machine is very easy to operate which don’t need scaffolding, mobile equipment, even the small corners and roof can be freely spray. The use of this equipment can greatly shorten the construction period, improve work efficiency and save the expense of shelf materials.
Specification of the Spraying Machine:
|
Electric Mortar Spraying Machine |
|
|
Model |
YG-MS3 |
|
Production Capacity |
3m3/h |
|
Pressure |
3MPa |
|
Applicable Material Ratio(Water,Ash,Sand) |
0.7-1:1:3 |
|
Voltage |
380v |
|
Main Motor Power |
5.5kw |
|
Particle Size |
Below 4mm |
|
Transmission Distance |
Horizontal 30m Vertical 15m |
|
Bucket Volume |
50L |
|
Air Compressor Exhaust |
0.3m3/min |
|
Max Aggregate Size |
Below 4mm |
|
Feed Pipe Diameter |
32mm |
|
Weight |
320kg |
|
Diesel Mortar Sprayer |
|
|
Model |
YG-MSD8 |
|
Power |
8 Hp |
|
Pressure |
2-5 MPa |
|
Particle Diameter |
below 5mm |
|
Flow |
3-6 m3/h |
|
Volume |
50 L |
|
Transmission Distance |
Horizontal 60m Vertical 30m |
|
Dimension |
1650*550*1200 mm |
|
Weight |
310 kg |
Wide Application of the Mortar Spraying Machine
The spraying machine for sale in YUGONG can be applied to wall and ceiling painting work, road painting, highways and railways painting, tunnels painting, etc. And materials like putty powder, paint, latex paint, dry mortar, cement mortar, insulation mortar, waterproof and fireproof materials, real stone paint, sound-absorbing materials, and others which are water-soluble materials are suitable materials for a mortar spray machine. So buy one set of mortar sprayer can bring many convenience for you.
Five Top Features of YUGONG Mortar Spraying Machine
1. High-Efficiency;
2. Smooth and Fine Coating;
3. Strong Coating Adhesion;
4. High Utilization;
5. Customization Service.

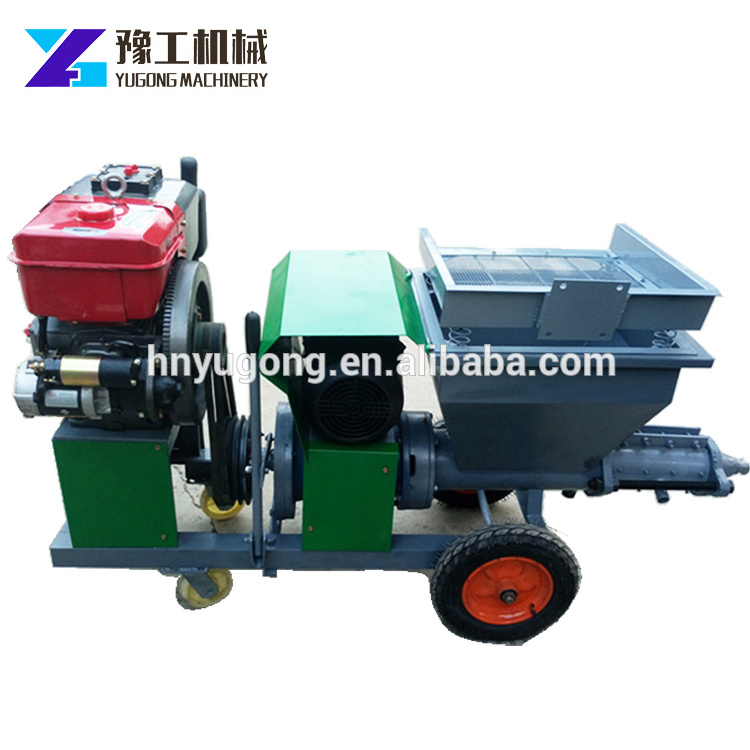

Main Parts of the Mortar Sprayer for Sale
A cement spray machine mainly consists of a grouting pipe, stator, rotar, spraying gun, vibrating motor, vibrating sieve, oil pump, air hose, and electric control box. The motor provide strong power for the mortar pump machine, and you can operate the cement spraying machine easily under the instructions on the electric control box. For those vulnerable parts, we will ship another set for you along with the machine.
