Quick Details
-
Type:
-
Mobile seed cleaning sorting machine
-
Use:
-
Remove dust; impurities, infected seeds
-
Key Selling Points:
-
All-in-One Combine Cleaner
-
Production Capacity (kg/h):
-
5000 - 10000
-
Sieve Size(mm):
-
2400*1500
-
Marketing Type:
-
All-in-One Combine Cleaner
-
Power (kW):
-
17.35
-
Weight:
-
2600 KG
-
Product Name:
-
5XFZ-10 Sesame Screening Cleaning Sorting Machine
-
Rated Capacity:
-
10 t/h (wheat)
-
Selection Rate:
-
98%
-
Cleanness Rate:
-
99%
-
Gravity Table Area:
-
3.7m2
-
Broken Rate:
-
≤0.5%
-
Screen Dimension (L*W*Layer):
-
2400*1500*3 mm
-
Size(LxWxH):
-
5600*2340*3560 mm
-
Supply Scope:
-
We supply complete seed cleaning plant
-
Certification:
-
ISO9001:2015, CE
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hyde-Maosheng
-
Dimension(L*W*H):
-
5600*2340*3560mm
-
Type:
-
Mobile seed cleaning sorting machine
-
Use:
-
Remove dust; impurities, infected seeds
-
Key Selling Points:
-
All-in-One Combine Cleaner
-
Production Capacity (kg/h):
-
5000 - 10000
-
Sieve Size(mm):
-
2400*1500
-
Marketing Type:
-
All-in-One Combine Cleaner
-
Power (kW):
-
17.35
-
Weight:
-
2600 KG
-
Product Name:
-
5XFZ-10 Sesame Screening Cleaning Sorting Machine
-
Rated Capacity:
-
10 t/h (wheat)
-
Selection Rate:
-
98%
-
Cleanness Rate:
-
99%
-
Gravity Table Area:
-
3.7m2
-
Broken Rate:
-
≤0.5%
-
Screen Dimension (L*W*Layer):
-
2400*1500*3 mm
-
Size(LxWxH):
-
5600*2340*3560 mm
-
Supply Scope:
-
We supply complete seed cleaning plant
-
Certification:
-
ISO9001:2015, CE
5XFZ Agricultural Grains Seeds Corn Bean Rice Sesame Combine Screening Cleaning Sorting Machine
Hyde Machinery (Maosheng Group)
- Seed processing plant: 1~15 t/h
- Flour mill plant: 40~1000 t/d
- Manufacturer since 1976

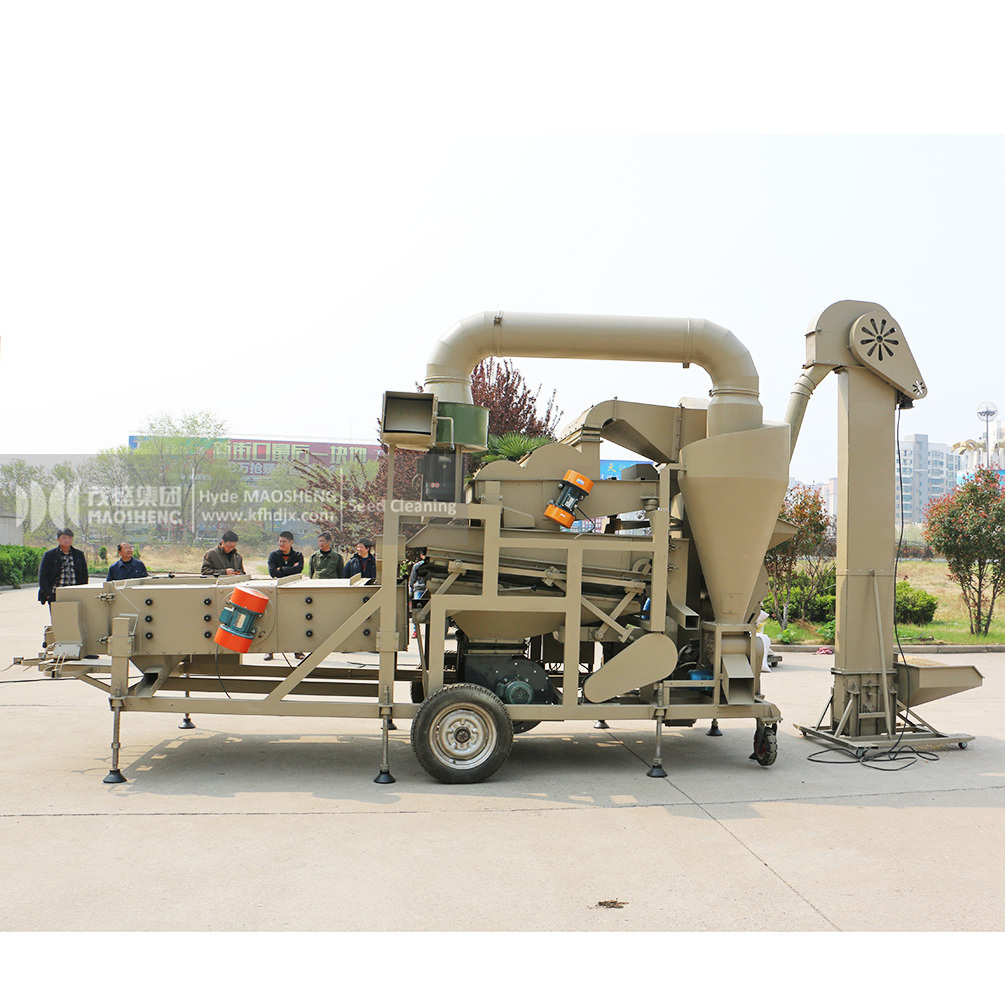

5XFZ Moblie Combine Seed Cleaner
1) Function: fine cleaning to remove impurities, broken and infected grains; grading seeds according to sizes.
2) Application: cereal grains and seeds.
3) Capacity: 7.5-20t/h (wheat).
5XFZ mobile combine seed cleaner integrates with necessary and popular seed cleaning and grading equipment huller, air sifter, gravity table, vibration cleaner, no- broken bucket elevator and dust collector, to remove dust, stem, awn, husk, bran, light impurites, blighted, geminated, smut scab diseased, moldy and insect damaged seeds, classify and discharge seeds by sizes to different product outlets.
Application of 5XFZ Moblie Combine Seed Cleaner
Hyde 5XFZ mobile combine seed cleaner is used for processing seeds and grains such as wheat, rice, maize, rice sunflower seed, beans, oil seeds, melon seeds, vegetable seeds and other smail particle products, with the advantages of impact structure, flexible movement, low energy consumption, wide application, high efficiency, and excellent selection effect.
De-Awner: remove awns, some husks on wheat. Feed other grains to the feeding hopper to skip the de-awner.
Air Sifting Chamber together with cyclone: remove dust and light impurities by aspiration, and collected by cyclone for environmental-friendly discharging;
Gravity table: remove lighter-density blighted, geminated, smut scab diseased, moldy and insect damaged hollow seeds;
Vibration cleaner: remove oversized big impurities such as stems straws and small impurities such as undersized broken seeds, small stones, grass seeds to select the good seeds; also can classify good seeds by sieve hole sizes.
Workshop of Mobile type combine seed cleaners
Technical Specification of 5XFZ Moblie Combine Seed Cleaner
| Model | 5XFZ-7.5 | 5XFZ-10 | 5XFZ-20 | |
| Rated Capacity |
7.5t/h wheat 5t/h rice |
10t/h wheat |
20t/h wheat 15t/h maize |
|
| Overall Dimension(L*W*H) | 5200*2340*3560mm | 5600*2340*3560mm | 6000*2350*3560mm | |
| Total Weight | 2100kg | 2600kg | 3500kg | |
| Power | Huller Motor | 7.5(optional) | 7.5(optional) | 7.5(optional) |
| Total Power | 15.35kw | 17.35kw | 17.55kw | |
| Screen | Size(L*w*Layer) | 2400*1500*3 | 2400*1500*3 | 2400*1500*3 |
| Amplitude | 4~4.5mm | 4~4.5mm | 4~4.5mm | |
| Gravity Table Area | 3.7 | 3.7 | 3.7 | |
| Selection Rate | ≥98% | ≥98% | ≥98% | |
| Cleanness Rate | ≥99% | ≥99% | ≥99% | |
| Broken Rate | ≤0.5% | ≤0.5% | ≤0.5% | |
| Travel Speed | <10km/h | <10km/h | <10km/h | |
Mobile combine seed cleaner in mobile seed cleaning plants.
Combine seed cleaning sorting machine at working site
Grain and seed cleaning machines:
Pre-cleaners, fine cleaners, rotary cleaners, seed graders, seed gravity separators, indented cylinder, wheat paddy de-awner, destoner, vibration cleaner, rotary cleaner, air aspirator, cyclone dust collector, seed treater, seed dryers, elevators and conveyors, auto-packing scales.
Air Screen Fine Cleaner Seed Gravity Separator Indented Cylinder Separator
Stone Separator Vibration Screen Cleaner Separator Rotary Cleaner
