Quick Details
-
Mounting Type:
-
Flush
-
Description:
-

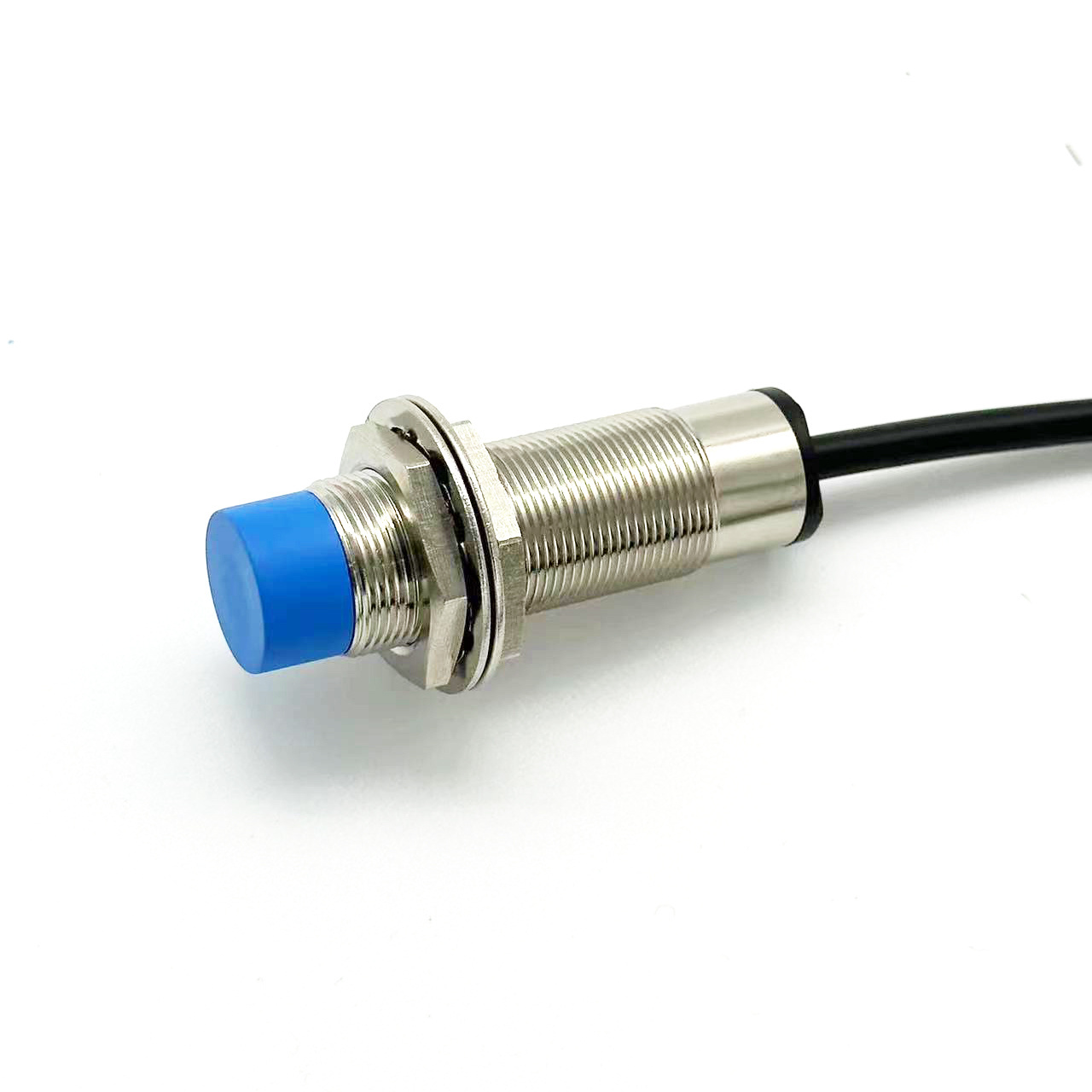

Inductive Proximity Sensor, Inductive Proximity Sensor
-
Model Number:
-
ITC18-F08DPO
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DINGGAN
-
Theory:
-
Inductive Proximity Sensor
-
Output:
-
NPN/PNP NO/NC(Digital Sensor)
-
Installation Mode:
-
Flush/Non-Flush
-
Power Supply:
-
12-24VDC
-
Sensing range:
-
8mm/12mm/customizable
-
Ambient temperature:
-
-20~70℃
-
size:
-
M18*50 cylinder
-
Housing material:
-
Nickel-copper alloy
-
Induction surface material:
-
PBT
-
Protection class:
-
IP67
-
Electrical connection:
-
2m PVC Cable
Quick Details
-
Use:
-
Metal position detection
-
Series:
-
ITC18 Series
-
Features:
-
Metal position detection
-
Mounting Type:
-
Flush
-
Description:
-
Inductive Proximity Sensor, Inductive Proximity Sensor
-
Model Number:
-
ITC18-F08DPO
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DINGGAN
-
Theory:
-
Inductive Proximity Sensor
-
Output:
-
NPN/PNP NO/NC(Digital Sensor)
-
Installation Mode:
-
Flush/Non-Flush
-
Power Supply:
-
12-24VDC
-
Sensing range:
-
8mm/12mm/customizable
-
Ambient temperature:
-
-20~70℃
-
size:
-
M18*50 cylinder
-
Housing material:
-
Nickel-copper alloy
-
Induction surface material:
-
PBT
-
Protection class:
-
IP67
-
Electrical connection:
-
2m PVC Cable
Product Description
Specification
|
Part number
|
|
|
||
|
Non-Flush
(16mm)
|
NPN NO
|
ITC18-N12DNO
|
||
|
|
PNP NO
|
ITC18-N12DPO
|
||
|
|
NPN NC
|
ITC18-N12DNC
|
||
|
|
PNP NC
|
ITC18-N12DPC
|
||
|
Flush
(10mm)
|
NPN NO
|
ITC18-F08DNO
|
||
|
|
PNP NO
|
ITC18-F08DPO
|
||
|
|
NPN NC
|
ITC18-F08DNC
|
||
|
|
PNP NC
|
ITC18-F08DPC
|
||
|
Technical specifications
|
|
|
|
Dimensions
|
M18*50mm(Refer to the size diagram below)
|
|
|
Output
|
NO/NC(Depends on above part number)
|
|
|
Supply voltage
|
12~24 VDC
|
|
|
Standard target
|
Fe 27*27*1t
|
|
|
Switch point drifts(%/Sr)
|
≤±10%
|
|
|
Hysteresis range(%/Sr)
|
3...15%
|
|
|
Repeat accuracy(R)
|
≤1%
|
|
|
Load current
|
≤200mA
|
|
|
Leakage current
|
≤1.7mA
|
|
|
Protection circuit
|
Short-circuit, overload, reverse polarity
|
|
|
Indicator
|
Red LED
|
|
|
Ambient temperature
|
-20ºC...70 ºC
|
|
|
Switching frequency(F)
|
300Hz(Non-Flush)/2000Hz(Flush)
|
|
|
Insulation resistance
|
≥500MΩ(500VDC)
|
|
|
Vibration resistance
|
10...50Hz(1.5mm)
|
|
|
Protection degree
|
IP67
|
|
|
Connection type
|
2m PVC cable
|
|
|
Housing material
|
Nickel-copper alloy
|
|
