Quick Details
-
Model Number:
-
AHC10
-
Max. Current:
-
16 A
-
Item:
-

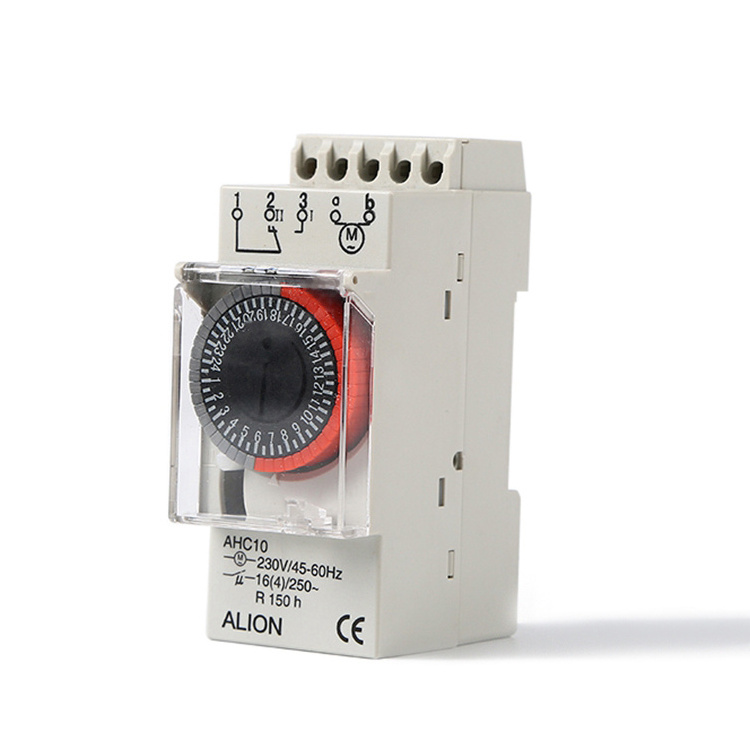

Analogue Time Switch AHC10
-
Operating Voltage:
-
230-240VAC / 110VAC / 24VDC / 12VDC
-
Frequency:
-
50-60Hz
-
Shortest Switching Time:
-
30 min
-
Program:
-
Daily program
-
Installation type:
-
DIN-rail
-
Width:
-
2 modules
-
Type of:
-
IP 20
-
Certificates:
-
CE ROHS
-
Power Reserve:
-
7 days
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
240VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ALION
-
Model Number:
-
AHC10
-
Max. Current:
-
16 A
-
Item:
-
Analogue Time Switch AHC10
-
Operating Voltage:
-
230-240VAC / 110VAC / 24VDC / 12VDC
-
Frequency:
-
50-60Hz
-
Shortest Switching Time:
-
30 min
-
Program:
-
Daily program
-
Installation type:
-
DIN-rail
-
Width:
-
2 modules
-
Type of:
-
IP 20
-
Certificates:
-
CE ROHS
-
Power Reserve:
-
7 days
-
Certification:
-
CE
240v Industrial 24 Hour Cyclic Timer Switches For Mechanical Light switch
On Time Control For 24 Years
The AHC10 daily program analog time switch is programmed pushing on switching segments, it's quickly read and easy to change. The shortest switching time is 30 minutes and it can switching with Permanent ON/ OFF.
Description
- Analog time switch
- Daily program
- 1 channel
- With power reserve (NiMH rechargeable battery)
- 48 switching segments
- Shortest switching time: 30 minutes
- Screw terminals
- Switching preselection
- Permanent ON/OFF switch
- Switching status display
- Operating indication
- Simple summer/winter time correction
Applications
- Billboard or Showcase lighting
- Air-condition
- Pumps/Motor/Geyser/Fan Control
- Boilers / Heater Control
- Lighting Panel Control
- Landscape Lighting
- Pool & Spa
- General Electrical Circuits
Technical data
| Type | AHC10 |
| Operating voltage | 230-240VAC / 110VAC / 24VDC / 12VDC |
| Frequency | 50-60Hz |
| Number of channels | 1 |
| Width | 2 modules |
| Installation type | DIN-rail |
| Type of connection | Screw terminals |
| Drive | Quartz-controlled stepper motor |
| Program | Daily program |
| Power reserve | 7 days |
| Max. switching capacity at 250 V AC, cos φ = 1 | 16 A |
| Max. switching capacity at 250 V AC, cos φ = 0.6 | 4 A |
| Incandescent/halogen lamp load | 1000W |
| Energy saving lamps | 150W |
| LED lamp < 2 | 30W |
| LED lamp 2-8 | 90W |
| LED lamp > 8 | 100W |
| Shortest switching time | 30 min |
| Programmable every 30 min | 30 min |
| Number of switching segments | 48 |
| Time accuracy at 25 °C | ≤ ± 2 s/day(Quartz) |
| Type of contact | Changeover contact |
| Switching output | Potential-free and phase-independent |
| Power consumption | 1.5VA |
| Test approvals | CE |
| Housing and insulation material | High-temperature resistant, self-extinguishing thermoplastic |
| Type of | IP 20 |
| class | II in accordance with EN 60730-1 |
| Ambient temperature | –10 °C … +50 °C |
Connection Example
Scale Drawings
