Quick Details
-
Brand Name:
-
AOL
-
Weight (KG):
-
1500 KG
-
Product name:
-
Jinan AOL rubber polyurethane foam cutting machine
-
Working area:
-
1600*2500mm
-
Cutting speed:
-
0-1600mm/s(according to different cutting materials)
-
Cutting thickness:
-
≤22mm(according to different cutting materials)
-
Safety device:
-
Infrared sensors
-
Repeated accuracy:
-
≤0.1mm
-
Drive system:
-
Servo
-
Transmission system:
-
HIWIN linear guide, synchronous belt, ball screw
Quick Details
-
Laser Type:
-
CO2
-
Cutting Area:
-
1600mm*2500mm
-
Place of Origin:
-
China
-
Brand Name:
-
AOL
-
Weight (KG):
-
1500 KG
-
Product name:
-
Jinan AOL rubber polyurethane foam cutting machine
-
Working area:
-
1600*2500mm
-
Cutting speed:
-
0-1600mm/s(according to different cutting materials)
-
Cutting thickness:
-
≤22mm(according to different cutting materials)
-
Safety device:
-
Infrared sensors
-
Repeated accuracy:
-
≤0.1mm
-
Drive system:
-
Servo
-
Transmission system:
-
HIWIN linear guide, synchronous belt, ball screw

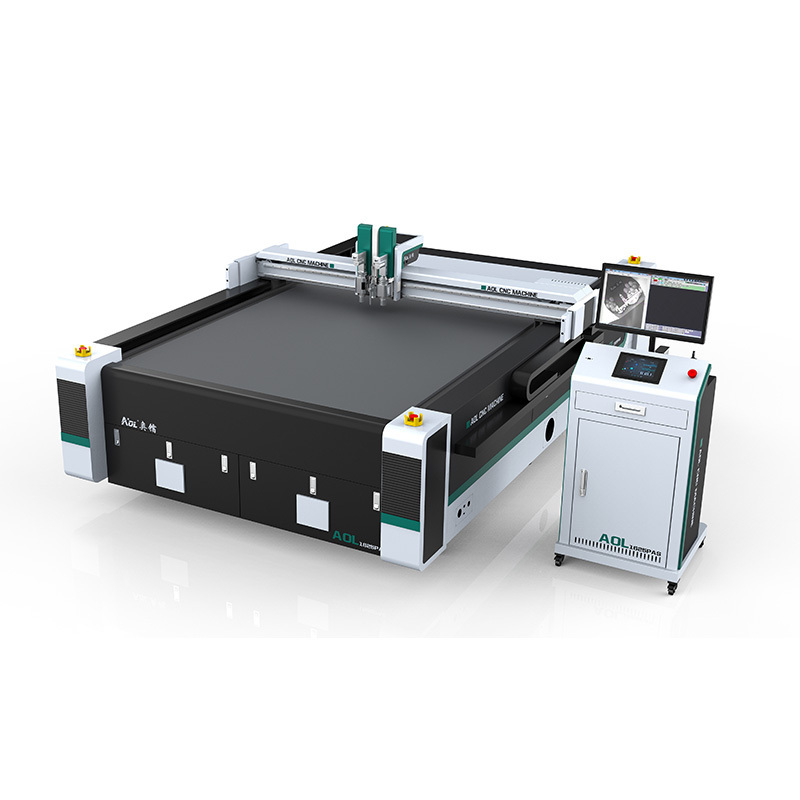

Jinan AOL rubber polyurethane foam cutting machine
AOL Cutters, with a special configuration, appeal particularly to the demands of the textile processing branch, where it is a matter of low-cost manufacture of exact templates for single and multi-layer patterns.
The drawing- , cutting- and cutting edge quality of the manufactured items meet up to the highest technical requirements, the dimensional accuracy of the items lies within hundredth millimeter.
using servo drive and pneumatic pressure. On top of various cutting blades for different materials, marking pens can also be fitted to this tool head. Cutting and marking can be carried out in one work process.
Jinan AOL rubber polyurethane foam cutting machine
|
Model |
AOL1625 |
AOL1825 |
AOL2125 |
Customized |
||
|
Working area |
1600x2500mm |
1800x2500mm |
2100X2500 |
|
||
|
Multi heads for choose |
Dual-head, dual-gantry |
|||||
|
Multifunctional tools |
Oscillation Knife, Circle Knife, Pneumatic Knife, Punching tool etc |
|||||
|
Safety device |
Infrared sensors, responsive, safe and reliable |
|||||
|
Cutting speed |
200-2000mm/s |
|||||
|
Cutting thickness |
≤50mm (according to different cutting materials) |
|||||
|
Cutting materials |
PVC, leather, sponge composite skin, XPE material, soft glass , silicone, rubber materials and other composite flexible materials |
|||||
|
Fixed mode |
Vacuum suction table (auto feeding table for optional) |
|||||
|
Transfer file |
Network port |
|||||
|
Transmission system |
Panansonic servo motor, Linear guide rail, synchronous belt, ball screw |
|||||
|
Rated power |
11kw |
|||||
|
Voltage |
220V/50HZ |
|||||
|
Control system |
LCD touch screen |
|||||
|
Working environment |
Temperature 0-40 degree, humidty 20%-80% RH |
|||||
|
Software |
Automatic marker software, template entry software (for optional) |
|||||
|
Support file format |
AI,PLT,DXF,CDR etc |
|||||
|
Machine size |
3570x2290x1165mm |
3570x2500x1165mm |
3570x25800x1165mm |
|||
1. We have more than 13 years of experiences.
2. We are professional.
3. We have great after-sale team, we are responsible for every customers and the machines we have sold.
4. We have strong technique team.
5. Our machines are well sold around all the world
6. All machines have three years warranty
Packaging Details:
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity.
We can package according to your requests.
