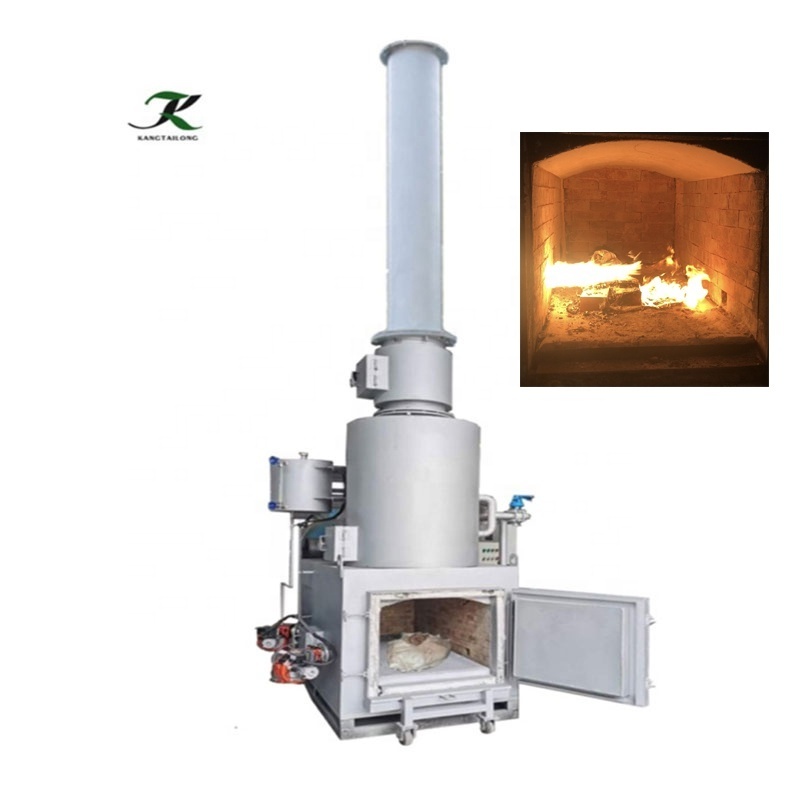

Incinerator from inside to outside is composed of refractory brick and refractory cement, insulation material and carbon steel. Make sure the furnace body is not hot when burning, and the surrounding workers will not feel very hot.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Kangtailng
-
Model Number:
-
KTL-50
-
Power:
-
0.25kw
-
Material:
-
Wooden box
-
Marketing Type:
-
New Product 2024
-
Weight (KG):
-
2500 kg
-
Fuel:
-
Diesel/Natural gas/LPG
-
Certification:
-
CE
-
Final product:
-
Ashes
-
Advantage:
-
Smokeless
-
Voltage:
-
380v/220v
-
Size:
-
1460*1000*2590 mm
-
Technology:
-
Secondary combustion technology
-
Service life:
-
8 - 10 Years
-
After sales:
-
Video Technical
-
Feature:
-
Eco-friendly
Quick Details
-
Production Capacity:
-
30-50 kg/times
-
Applicable Industries:
-
Pet Hospital, Pet store, Breeding center, Farm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Kangtailng
-
Model Number:
-
KTL-50
-
Power:
-
0.25kw
-
Material:
-
Wooden box
-
Marketing Type:
-
New Product 2024
-
Weight (KG):
-
2500 kg
-
Fuel:
-
Diesel/Natural gas/LPG
-
Certification:
-
CE
-
Final product:
-
Ashes
-
Advantage:
-
Smokeless
-
Voltage:
-
380v/220v
-
Size:
-
1460*1000*2590 mm
-
Technology:
-
Secondary combustion technology
-
Service life:
-
8 - 10 Years
-
After sales:
-
Video Technical
-
Feature:
-
Eco-friendly
Products Description
Technical characteristics of incinerators KTL series of refuse incinerators adopt the most advanced incineration mode of primary pyrolysis gasification + ambient air mixed combustion + secondary incineration + burnout treatment.The design of the primary combustion chamber of the incinerator adopts the gasification incineration technology to make the temperature in the incinerator move from 200℃ to 400℃, so that
the waste will not produce frit, slag block, sintering and other problems in the incineration process, and the dust production is very small
.
Application
Animal /Pet cremation
:
dead animal body and pets carcass, Eg. dog,cat,chicken,duck,fish,birds,cattle,etc.
Advantages of our incinerator：
1. It's
easier to operate
than other manufactures' incinerators. There is an
automatic air blower
inside of burner.It's for protection burner, no need to operate it.When you close the burner,the air blower will be stop automatically at a certain time.
2. Low running&maintenance cost .The first burner of first consumption more longer than general burner,it's specially made of save fuel .
3. Environment friendly,Duel chamber design,there is no smoke,no smell,no pollution after waste burning.
4. The highest temperature can reach 1100-1300 degrees Celsius ,which can achieve the effect of sterilization and disinfection.
5. Long service time .Material of construction-Heavy duty steel ,Insulated and refractory lined chambers.
6. Be portable and cover a small area .
2. Low running&maintenance cost .The first burner of first consumption more longer than general burner,it's specially made of save fuel .
3. Environment friendly,Duel chamber design,there is no smoke,no smell,no pollution after waste burning.
4. The highest temperature can reach 1100-1300 degrees Celsius ,which can achieve the effect of sterilization and disinfection.
5. Long service time .Material of construction-Heavy duty steel ,Insulated and refractory lined chambers.
6. Be portable and cover a small area .
7.The animal incinerator uses an
automatic push-pull cart
.
A combustion chamber inside the furnace chamber
Electric Control Box
Lock the device and stop the process in sequence, power off protection device, overload protection (electrical), alarm function. The electronic control system not only performs the closed-loop control of the combustion temperature in the combustion chamber, but also performs the closed-loop control of the oxygen supply time, and coordinates the control between them so that the control system and the control results of each process can meet the requirements, so the entire system of closed-loop control.
Specification
|
Type
|
Burning ability
（Kg/Batch）
|
Size
(mm
)
|
Chimney
|
Total power
(KW)
|
Voltage
(V)
|
Weight(Kg)
|
|
KTL-30
|
20~30
|
L:1300
W:800
H:2300
|
OD219
|
0.55
|
220
|
2000
|
|
KTL-50
|
30~50
|
L:1460
W:1000
H:2590 |
OD280
|
0.55
|
220
|
2300
|
|
KTL-100
|
50~100
|
L:1700
W:1150
H:3000 |
OD280
|
0.55
|
220
|
4000
|
|
KTL-150
|
100~150
|
L:1800
W:1300
H:3200 |
OD280
|
055
|
220
|
5500
|
|
KTL-200
|
150~200
|
L:1900
W:1400
H:3500
|
OD300
|
0.8
|
220
|
7000
|
|
KTL-300
|
200~300
|
L:2100
W:1550
H:3800
|
OD400
|
0.98
|
220
|
8000
|
|
KTL-400
|
300~400
|
L:2600
W:1750
H:4270
|
OD400
|
1.05
|
220
|
11000
|
|
KTL-500
|
400~500
|
L:3000
W:2000
H:4800
|
OD500
|
1.05
|
220
|
13000
|
Our service
Pre-Sales Service
1.Recommend equipment suitable for customers.
2.View the factory and provide inspection reception.
3.Provide sample test and demo operation.
After-Sales Service
1.Video technical support and online support.
2.Field installation,commissioning and training.
3.Field maintenance,free spare parts and repair service.
Shipment
Company introduction
Shandong Kangtailong Intelligent Equipment Co., Ltd. is a modern enterprise focusing on the production and manufacturing of all kinds of waste incineration equipment.The company is located in Zhucheng, Shandong Province. Our company mainly produces all kinds of waste incinerator equipment, focusing on the solution of municipal solid waste, waste produced by the medical industry to sick and dead animals, industrial waste and other various types of waste produced in all walks of life.The product adopts the principle of thermal incineration of organic waste gas, which decomposes organic matter into inorganic matter and achieves standard discharge of flue gas.
For a long time, the company always adhere to the "science and technology for development, quality for survival" policy, to "pay close attention to quality for credibility, strengthen management for the upper echelon" as the goal, forge ahead, and strive to open up the market.All the employees of the company are willing to excellent products, good service, sincere attitude, and sincerely hope to cooperate with new and old friends closely, hand in hand to forge ahead, a total of grand exhibition.
For a long time, the company always adhere to the "science and technology for development, quality for survival" policy, to "pay close attention to quality for credibility, strengthen management for the upper echelon" as the goal, forge ahead, and strive to open up the market.All the employees of the company are willing to excellent products, good service, sincere attitude, and sincerely hope to cooperate with new and old friends closely, hand in hand to forge ahead, a total of grand exhibition.
