Port Size:
3/4" Female Thread
Liquid:
140°F [60 °C] Max
Self-priming:
8feet [about 2.5M]
Max pressure：
200psi
Run Dry:
Yes (within 30 second)
Motor:
Permanent Magnet, Intermittent
Duty Protection:
Automatic Restart
Volts:
12 VDC motors standard
Approved Certificate:
CE and RoHS
Explore More Products
- Product Details
- {{item.text}}

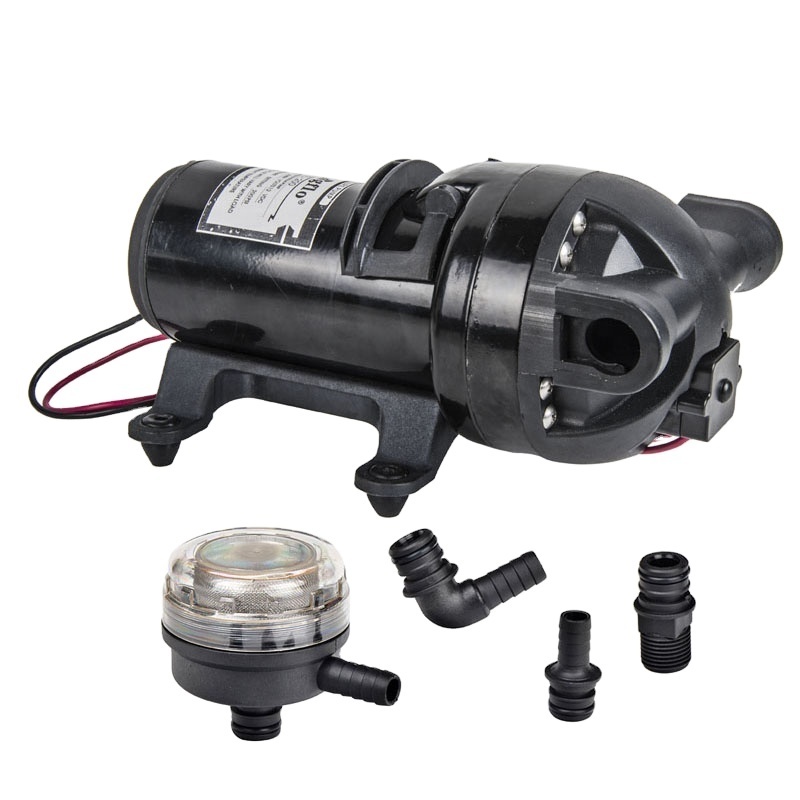

Quick Details
-
Brand Name:
-
Singflo
-
Model Number:
-
FL-200
-
Place of Origin:
-
Fujian, China
-
Outlet Size:
-
3/4''
-
Fuel:
-
Diesel
-
volt:
-
12vdc
-
max flow:
-
10L/min
-
max pressure:
-
200PSI
-
amps:
-
15.0A
-
Liquid:
-
60C max
-
self-priming:
-
8 feet /2.5M sunction lift
-
pump design:
-
5 chamber diaphragm
-
port size:
-
3/4''(19mm) Quick attach
Quick Details
-
Application:
-
Irrigation and Agriculture, Marine, Washing and Cleaning
-
Pressure:
-
200psi, High Pressure
-
Warranty:
-
1year
-
Brand Name:
-
Singflo
-
Model Number:
-
FL-200
-
Place of Origin:
-
Fujian, China
-
Outlet Size:
-
3/4''
-
Fuel:
-
Diesel
-
volt:
-
12vdc
-
max flow:
-
10L/min
-
max pressure:
-
200PSI
-
amps:
-
15.0A
-
Liquid:
-
60C max
-
self-priming:
-
8 feet /2.5M sunction lift
-
pump design:
-
5 chamber diaphragm
-
port size:
-
3/4''(19mm) Quick attach
Products Description
Feature:
Type:
5 Chamber Diaphragm
|
Model
|
Volts(V)
|
Flow(lpm/gpm)
|
Max. Pressure
|
Amp Draw(A)
|
Max Draw(A)
|
Packing Size(mm)
|
N.W/G.W(kg)
|
|
FL-200
|
12V
|
10/2.6
|
200PSI/13.8Bar
|
13A
|
15A
|
240*135*138
|
3.5/3.7kg
|
|
FL-55
|
12V
|
20/5.2
|
55PSI/3.8Bar
|
12A
|
13A
|
240*135*138
|
3.5/3.7kg
|
