Pcr Fluorescence Analyzer Filters Laser Instrument Light Collection Optical Glass Filter

Pcr Fluorescence Analyzer Filters Laser Instrument Light Collection Optical Glass Filter

FOB Reference Price: Get Latest Price

≥5 Pieces

US $21

≥200 Pieces

US $6.3

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: NMOT

Model Number:: PCR Band pass filter

Product name:: BP525nm filter

Material:: Optical Grade Glass

CWL:: 525+/-5nm or custom

FWHM:: 40+/-2nm or custom

Transmittance:: T>90%@525+/-2nm

Cut off wavelength:: 200-495nm&580-800nm

Blocking:: OD6@200-495nm&580-800nm

Surface Quality:: 60/40

Size:: 4-80mm or customized

Thickness:: 1-3.0mm or customized

Quick Details

Warranty:: 3 years

Use:: Optical/medical/others

Place of Origin:: Guangdong, China

Brand Name:: NMOT

Model Number:: PCR Band pass filter

Product name:: BP525nm filter

Material:: Optical Grade Glass

CWL:: 525+/-5nm or custom

FWHM:: 40+/-2nm or custom

Transmittance:: T>90%@525+/-2nm

Cut off wavelength:: 200-495nm&580-800nm

Blocking:: OD6@200-495nm&580-800nm

Surface Quality:: 60/40

Size:: 4-80mm or customized

Thickness:: 1-3.0mm or customized

Product Description

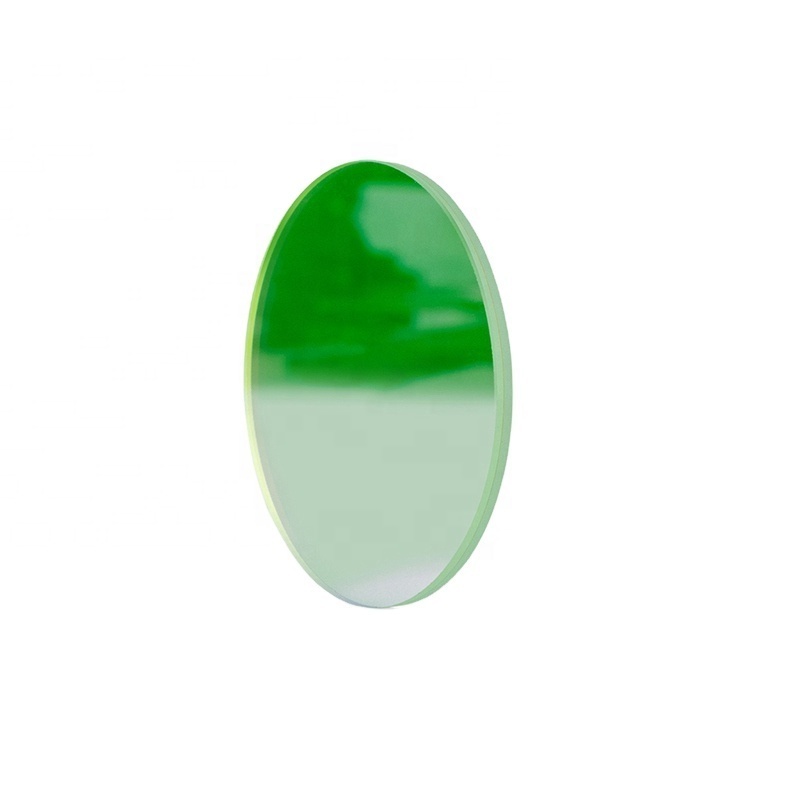

PCR fluorescence analysis filters

is a key optical component in fluorescence analysis instrument, which mainly analyzes and separates the characteristic band spectrum of fluorescence.

1. Product size and shape can be custom cut as per your requirements. 2. The price will be different for various product size. 3. Welcome to contact us for more details!

Specification

item	value
Warranty	1 year
Certification	ISO
Customized support	OEM
Place of Origin	China
Province	Guangdong
Brand Name	NMOT
Use	Biochemical analyzer, IR Scanner,Iris Recognition
Product name	BP525nm filter
CWL	525+/-5nm or custom
Transmittance	T>90%@525+/-2nm
Cut off wavelength	200-495nm&580-800nm
Blocking	OD6@200-495nm&580-800nm
FWHM	40+/-2nm or custom
Material	Optical Grade Glass
Surface Quality	60/40
Size	2-120mm or customized
Thickness	1-3.0mm or customized
