Custom Technology Good Price Membrane Switch Graphic Overlay Membrane Keypad Keyboard Button Panel

Custom Technology Good Price Membrane Switch Graphic Overlay Membrane Keypad Keyboard Button Panel

FOB Reference Price: Get Latest Price

≥5 Pieces

US $9.9

≥1000 Pieces

US $2.9

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Cross Reference:: Standard

membrane switch:: membrane switch,membrane keypad,membrane sticker,membrane panel

Actuation force::: Flat: 57 to 284g (2 to 10oz),Tactile: 170 to 397g (6 to 14oz)

Switch height::: Flat: 0.1 to 0.5mm,Tactile: 0.6 to 1.5mm

Environment::: Operating temperature: -40 to 80°C,Storage temperature: -40 to 80°C

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Smart

Model Number:: Membrane Switch

Cross Reference:: Standard

membrane switch:: membrane switch,membrane keypad,membrane sticker,membrane panel

Actuation force::: Flat: 57 to 284g (2 to 10oz),Tactile: 170 to 397g (6 to 14oz)

Switch height::: Flat: 0.1 to 0.5mm,Tactile: 0.6 to 1.5mm

Environment::: Operating temperature: -40 to 80°C,Storage temperature: -40 to 80°C

Products Description

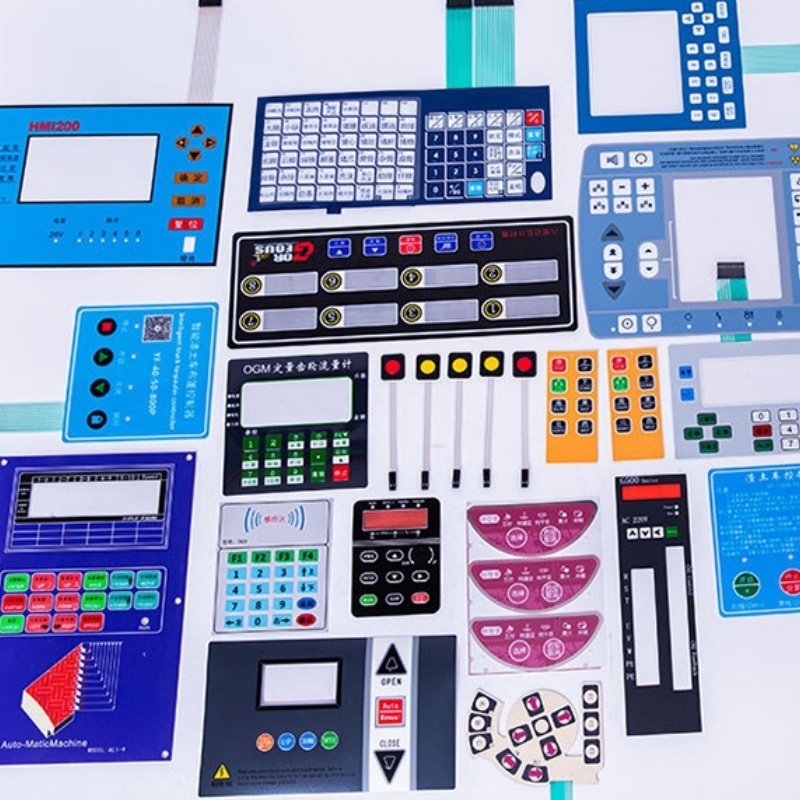

Factory cheap Customized Push button membrane switch membrane keypad

What Can We Do

Including but not limited to the following

Technology Capability

1.Material：Polycarbonate/PET/PVC/Rubber/Glass 2.Matt/Glossy Surface 3.With/Without Embossing Metal dome 4.Assembly LED/FFC Cable 5.Clear/Transparent/Color Window 6.Adhesive:3M 467, 468, 9448A etc 7.Connector:1.0mm pitch, 2.54mm pitch

If you need to custom the panel you designed, please provide the following information

1. Required files: CAD, CDR, AI, Corel Draw, etc. (preferably CDR and AI, with color) 2. Size: Size of panel and cable 3. Color: Pantone color card 4. Buttons: number, emboss or not, metal dome or not 5. LED: number, color, type 6. Window: clear window or transparent window 7. Surface treatment: glassy or matte

8. Pitch: ordinary 1.0mm, 2.54mm

9. Connector type: flat cable (Please specify the type you need）
