Quick Details
-
Brand Name:
-
Shuguang
-
Dimension(L*W*H):
-
910*750*990mm
-
Weight:
-
7000 KG
-
Name:
-

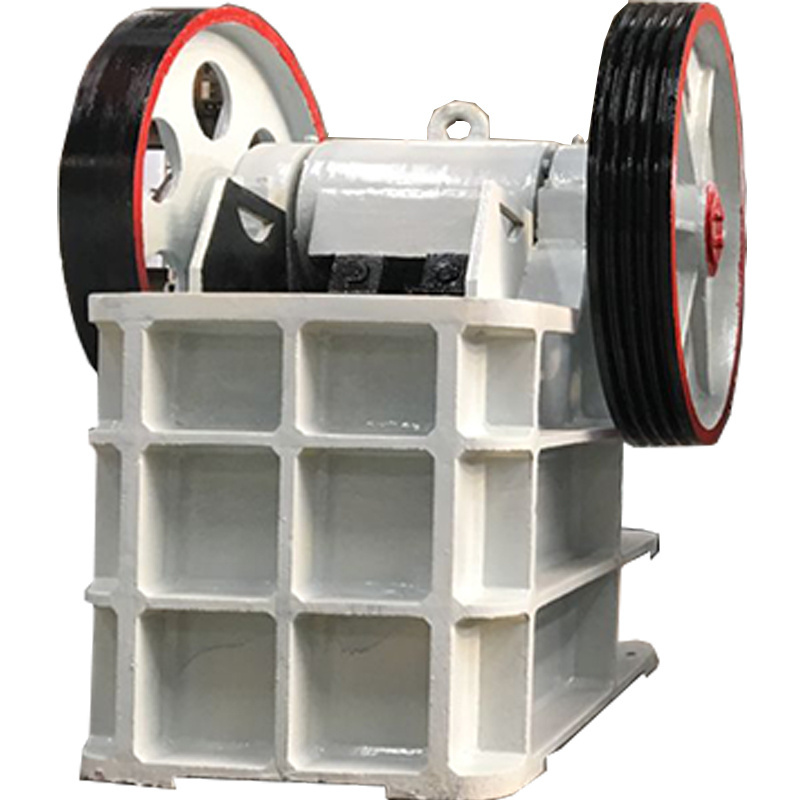

Used small jaw crusher for sale laboratory
-
Keyword:
-
lab jaw crusher for sale
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
Customizable
-
Max feeding size:
-
180mm
-
The Machines classification:
-
Stone Crushing Machine
-
After sale Service:
-
Technology Support
-
Installation:
-
Guidance
-
Spare parts supply:
-
Anytime
-
Quality:
-
Advanced Technology
Quick Details
-
Application:
-
ore,stone,quarry,rock etc
-
Capacity(t/h):
-
16-60
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Shuguang
-
Dimension(L*W*H):
-
910*750*990mm
-
Weight:
-
7000 KG
-
Name:
-
Used small jaw crusher for sale laboratory
-
Keyword:
-
lab jaw crusher for sale
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
Customizable
-
Max feeding size:
-
180mm
-
The Machines classification:
-
Stone Crushing Machine
-
After sale Service:
-
Technology Support
-
Installation:
-
Guidance
-
Spare parts supply:
-
Anytime
-
Quality:
-
Advanced Technology
Products Description
Jaw Crusher is ideally suitable for primary and secondary crushing. The highest anti-pressure strength of crushed material is 350MPa. construction equipment jaw crusher It is widely used in mining, metallurgy, construction, highway, railroad, and chemistry industries and etc. Many models are available according to your different fineness requirements.In the ore dressing process, jaw crusher is the key role in the beginning of ore crushing stages, it is the key equipment of coarse crushing and find crushing before ore grinding.
Suitable material that can be crushing :
such as barite, calcite, zeolite,potassium feldspar, talc, marble, limestone,dolomite,fluorite and lime, activated clay, activated carbon, bentonite, kaolin, cement, phosphate rock, gypsum, glass and thermalinsulation material in mine, metallurgy, chemistry and building industry.
Jaw crusher machie made up of frame, eccentric shaft, grooved wheel, flywheel, moving jaw, side guard plate, toggle plate, toggle backseat, adjusting screw, returning spring, fixed jaw plate and moving jaw plate. Toggle plate is of safety function.
Working Principle
The motor drives pulley of jaw crusher, making the movable jaw do periodic movement through eccentric shaft. The angle between toggle plate and movable jaw increases when movable jaw moves up. So the movable jaw moves to the fixed jaw. The stones are crushed in this process in jaw crusher. The angle between toggle plate and movable jaw decreases when movable jaw moves down, the movable jaw moves away from fixed jaw by the pulling of rod and spring, the crushed stones are discharged from the outlet.
Main Features and Working Principle
Our Advantage
Deep cavity crushing, energy saving
Optimized deep cavity crushing, no dead zone, greatly improved feed and crushing efficiency, single machine energy saving 15% -30%, system energy saving more than double.
Centralized lubrication system, easy maintenance
The uniquely designed centralized lubrication system makes component lubrication faster and requires less maintenance.
Strong carrying capacity and high stability
The larger forging blank processing heavy-duty eccentric shaft, high-manganese steel plate and high-alloy cast steel assembly, the equipment bearing capacity is stronger and the stability is higher.
Advanced technology and long service life
Drawing on advanced manufacturing processes, digitally analyzing the operation of various components, the internal structure is precise, and the service life of the equipment is greatly extended.
Simple structure and easy maintenance
Under the basic principle of compound pendulum, the redundant components are simplified, the overall structure of the device is simple, the crushing ability is strong, the operation and maintenance are convenient, and the operating cost is low.
Large discharge adjustment range
Multi-purpose multi-purpose gasket type discharge adjustment device, the discharge adjustment range is large, which increases the flexibility of the equipment when used, and can meet various processing requirements of customers.
Low noise and less dust
The equipment refers to environmental protection standards, the noise is low, the equipment can be dusted.
Technical Data
|
Type
|
Feed Opening(mm)
|
Capacity(t/h)
|
Motor Power
|
Total weight(t)
|
|
PE150*250
|
150*250
|
1-3
|
5.5
|
0.8
|
|
PE200*300
|
200*300
|
2-6
|
7.5
|
1.2
|
|
PE200*350
|
200*350
|
3-10
|
11
|
1.5
|
|
PE250*400
|
250*400
|
5-20
|
15
|
2.8
|
|
PE400*600
|
400*600
|
16-60
|
30
|
7
|
|
PE500*750
|
500*750
|
40-110
|
55
|
12
|
|
PE600*750
|
600*750
|
80-240
|
55
|
15.8
|
|
PE600*900
|
600*900
|
50-180
|
55
|
17
|
|
PE800*1060
|
800*1060
|
130-330
|
110
|
29.8
|
|
PE900*1200
|
900*1200
|
230-390
|
110
|
33
|
|
PE250*1200
|
250*1200
|
30-78
|
37
|
8
|
Packing & Delivery
Generally,we adopt standard containers, bare main machine, motors and small parts are packed in wooden cases.Or depend on your demands.
Customer Site
Our service
Pre-sales
Answer customers'doubts within 24 hours.
Help customers select more suitable equipment;
Customize the equipment to meet the specific needs of customers.
On-sales
Check every part of the equipment carefully to make sure there is no problem.
Delivery before the specified delivery date and delivery to the customer's required location
After-sales
Provide on-site guidance for engineers to install equipment.
Provide replacement parts;
Provide 12-month warranty service;
Engineers regularly visit the site to inspect the equipment and provide guidance for production and maintenance;When you encounter any problems in the production process, contact us online or send an email,we will provide solutions within 24 hours.
Answer customers'doubts within 24 hours.
Help customers select more suitable equipment;
Customize the equipment to meet the specific needs of customers.
On-sales
Check every part of the equipment carefully to make sure there is no problem.
Delivery before the specified delivery date and delivery to the customer's required location
After-sales
Provide on-site guidance for engineers to install equipment.
Provide replacement parts;
Provide 12-month warranty service;
Engineers regularly visit the site to inspect the equipment and provide guidance for production and maintenance;When you encounter any problems in the production process, contact us online or send an email,we will provide solutions within 24 hours.
If you want to know more product information or product price, please contact us!
