Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
StandardeL
-
Supplier Type:
-
in stock
-
Communication:
-
RS485
-
Installation:
-
DIN Rail 35mm
-
Warranty:
-
3 Years
-
Antenna:
-
External
-
Dimensions:
-
2 modules
Quick Details
-
Chipset:
-
SX1278
-
Application:
-
Wireless data transmision
-
Model Number:
-
SC720
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
StandardeL
-
Supplier Type:
-
in stock
-
Communication:
-
RS485
-
Installation:
-
DIN Rail 35mm
-
Warranty:
-
3 Years
-
Antenna:
-
External
-
Dimensions:
-
2 modules
Product Description
- Product Description - |

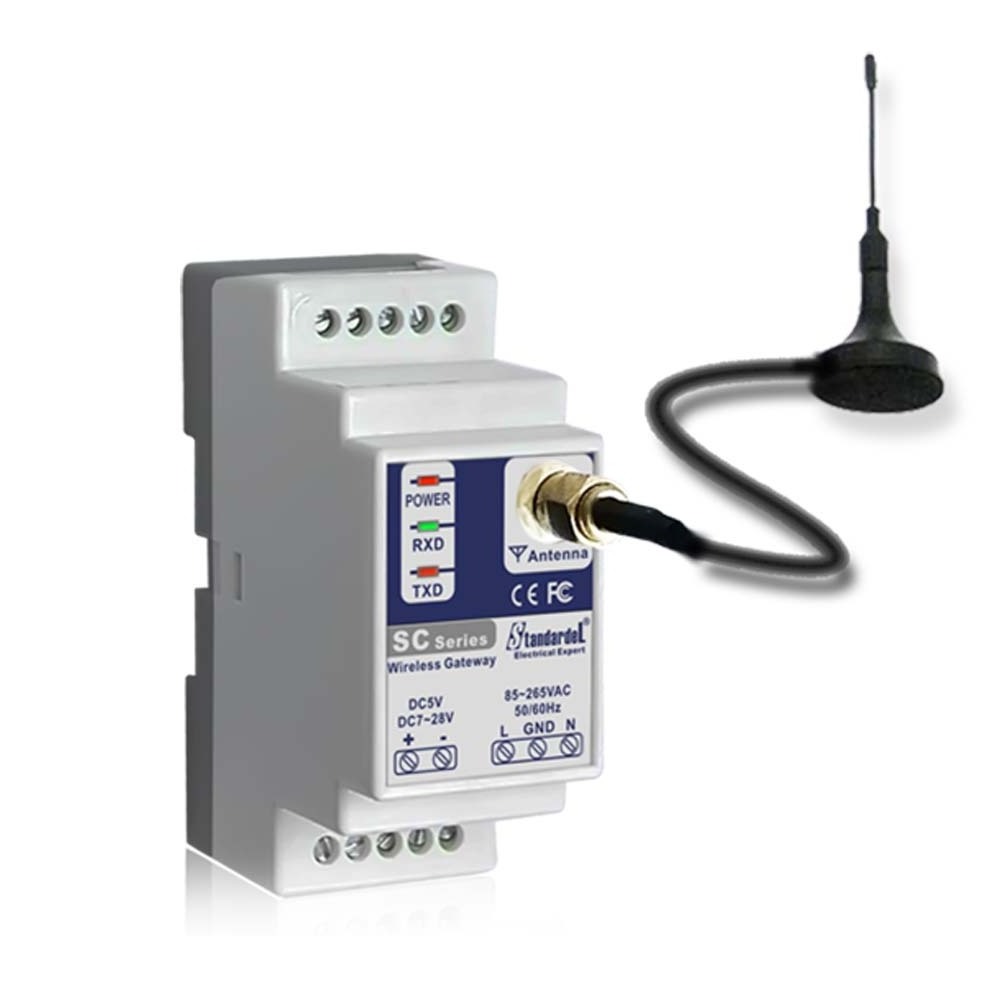

SC720
DIN Rail LoRa-RS485 wireless data converter is a kind of 433M wireless converter based on
LoRa spread spectrum modulation technology
. They make up wireless networks to provide data transmission on wireless. The product adopts high-performance industrial-grade LoRa transceiver scheme and forward error correction mechanism to ensure the reliability and stability of wireless transmission. It has a RS485 interface to connect to tranditional serial devices.
It has a big and high visible LCD display and it may be installed in any industrial space. It also has 4 front keys and users may easily change display page and set network parametersIt is only 2 modules size and is mounted on the standard 35mm DIN rail for most compact space; And it can be powered by AC110V/220V directly.
It has a big and high visible LCD display and it may be installed in any industrial space. It also has 4 front keys and users may easily change display page and set network parametersIt is only 2 modules size and is mounted on the standard 35mm DIN rail for most compact space; And it can be powered by AC110V/220V directly.
Advantages Functions
- Advantages & Functions - |
-
LoRa Wireless:
band(410~441MHz), Subnet ID(1-9999), channel(0-31);
- Visible transmision distance: 5 km(SC720), 5km(SC720L);
- RS485 interface: 2 cables isolated RS485 interface 1200-115200bps;
- Networking: point to point, the same subnet is with same band and ID, every terminal will receive the same data;
- Power Supply: default AC/DC85-265V and DC5V (Optional DC9-36V);
- Setting: by software from RS485 interface;
- Antenna: with sma 3m magnetic gain antenna;
- Visible transmision distance: 5 km(SC720), 5km(SC720L);
- RS485 interface: 2 cables isolated RS485 interface 1200-115200bps;
- Networking: point to point, the same subnet is with same band and ID, every terminal will receive the same data;
- Power Supply: default AC/DC85-265V and DC5V (Optional DC9-36V);
- Setting: by software from RS485 interface;
- Antenna: with sma 3m magnetic gain antenna;
Technical Features
- Technical Features - |
Technical Features | Parameters | |
LoRa Wireless | Band | 410~441MHz (Def. 433MHz) |
Visible Distance | SC720: 3km / SC720L: 8km | |
Channel | 0~31 (Def. 23) | |
Subnet ID | 1~9999 (Def. 7201) | |
Antenna | 3m 3dBi SMA gain antenna | |
RS485
interface |
Wiring | 2 cables RS485 |
Baud rate | 1200~115200bps | |
Parity | n81,n82,e81,o81 | |
Environment | Work Temperature: | -20C ~ +65C |
Storage Temperature | -40C ~ +70C | |
Relative humidity | 5% ~ 95% (no condensation) | |
Altitude | < 2500m | |
Dimension | 36x87.5x60(mm) | |
Weight | 200g | |
Power Supply |
Def. AC/DC85-265V and DC5V
Optional DC9-36V |
|
Isolation | 2kVAC/min ( input / output / power supply) | |
input / housing and output / housing >50Mohm |
Integration Solution
- Integration & Solution - |
Dimension & Wiring
- Dimension & Wiring - |
FAQ
- FAQ - |
Q: Can I ask for sample ?
A: Yes, for sample orders, please order from our online shop.
Q: Are you trading company or manufacturer ?
A: We are factory located in Shanghai.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 10-15 days for the items out of stock.
Q: What is your terms of payment ?
A: Order amount less than $5000, 100% paid before shipment; order amount more than $5000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
Q: Do you provide software ?
A: We have the free testing software for every model device. In the meantime, we also provide detection software to manage the device data, and charge of these software, you may demand our salers.
A: Yes, for sample orders, please order from our online shop.
Q: Are you trading company or manufacturer ?
A: We are factory located in Shanghai.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 10-15 days for the items out of stock.
Q: What is your terms of payment ?
A: Order amount less than $5000, 100% paid before shipment; order amount more than $5000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
Q: Do you provide software ?
A: We have the free testing software for every model device. In the meantime, we also provide detection software to manage the device data, and charge of these software, you may demand our salers.
