Quick Details
-
Place of Origin:
-
Jiangsu China
-
Brand Name:
-
CX
-
Model Number:
-
SLA06
-
Torque:
-
requests
-

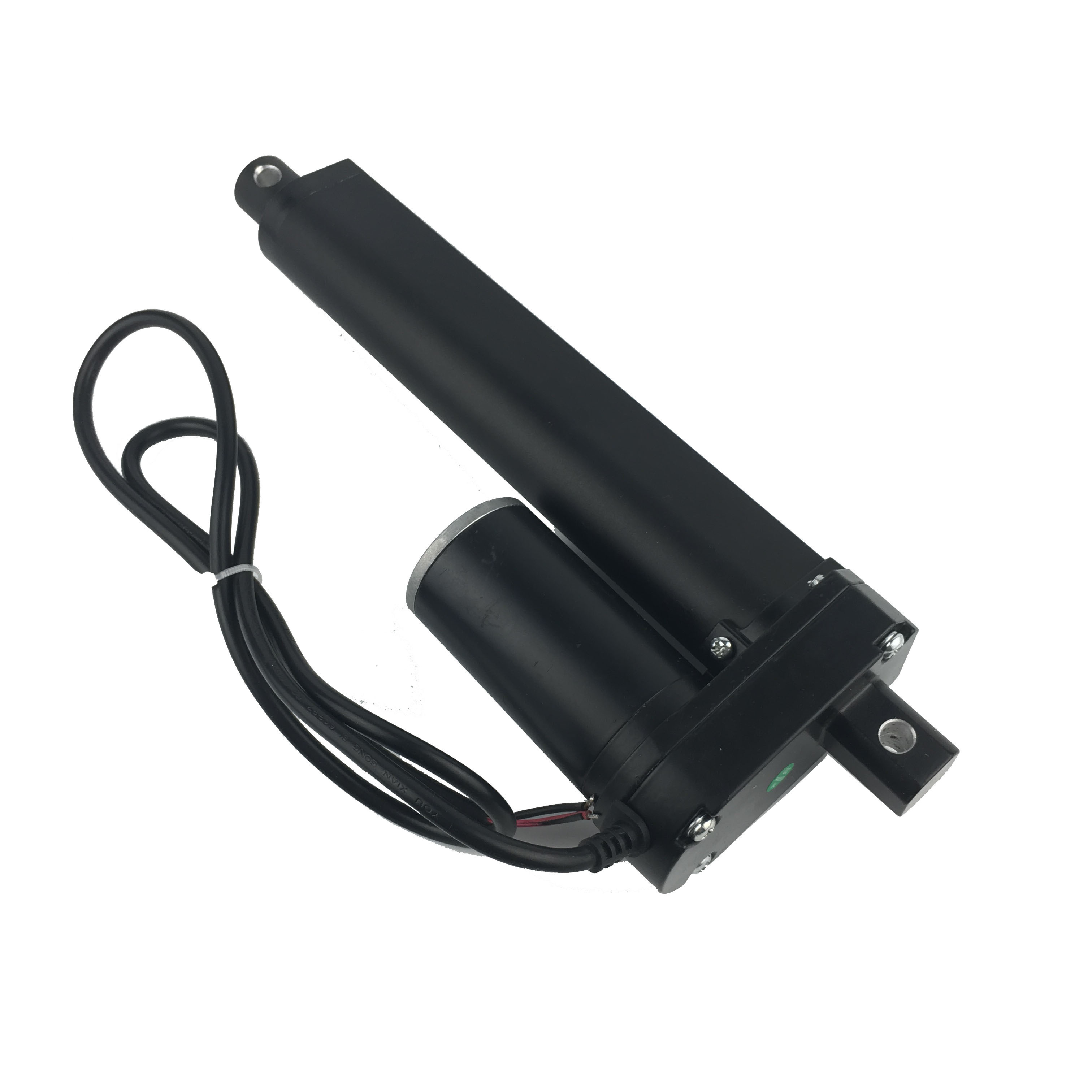

Product Name:
-
Linear Actuator
-
Color:
-
Black
-
Stroke:
-
50~300mm Customized
-
Retracted Length:
-
stroke+120mm
-
Speed:
-
3mm/s~20mm/s customized
-
IP Grade:
-
IP54
-
Max Load:
-
4000N
-
Input Voltage:
-
12v/24v/36v/48vdc
-
Duty Cycle:
-
20%(4mins Continuous Work)
-
Material:
-
Aluminum Alloy
Quick Details
-
Speed(RPM):
-
2600RPM
-
Continuous Current(A):
-
2.5A
-
Efficiency:
-
IE 1
-
Place of Origin:
-
Jiangsu China
-
Brand Name:
-
CX
-
Model Number:
-
SLA06
-
Torque:
-
requests
-
Product Name:
-
Linear Actuator
-
Color:
-
Black
-
Stroke:
-
50~300mm Customized
-
Retracted Length:
-
stroke+120mm
-
Speed:
-
3mm/s~20mm/s customized
-
IP Grade:
-
IP54
-
Max Load:
-
4000N
-
Input Voltage:
-
12v/24v/36v/48vdc
-
Duty Cycle:
-
20%(4mins Continuous Work)
-
Material:
-
Aluminum Alloy
Product Description
Product Parameters:
Driving voltage: 12V/24VDC
Maximum thrust: 350KG/3500N
Minimum installation size (fully retracted in the middle of the distance between two holes)
L1=Stroke+120mm
Maximum mounting size (fully retracted around the middle of the distance between two holes): L = 2xS (stroke) + 120mm
Ambient temperature: -26 to +65 degrees
Protection class: IP 54
Built-in limit switch (linear actuator stops automatically when stroke is completed!)
Low noise design, noise below 42 dB
Operating rule: 10%. 10% work rule required to load rated thrust. 20 minutes, 2 minutes work 18 minutes rest.
The working time can be extended if lower loads.
Color: Black
12V/24V electric actuator motor, there are travel limit switches at both ends of the actuator, the telescopic rod runs to the bottom or to the top, it will stop automatically.
The actuator is DC motor driven and screw driven. The telescopic rod can only stretch but not rotate.
The motor is positive and negative. Such as positive extension, negative contraction. Change the direction of the rod can be changed.
Note: The bracket and controller are to be purchased separately, please contact us if you need them.
Product function: push other objects for push, pull, up and down action
Application: TV lift massage bed, electric bed, medical chair, electric equipment, micro equipment.
|
Item
|
|
SLA06
|
|
|
|||
|
Max Load
|
|
3500N
|
|
|
|||
|
Max Speed
|
|
80mm/s
|
|
|
|||
|
Voltage
|
|
12V/24V/36V/48VDC
|
|
|
|||
|
Stroke
|
|
50-1000mm customized
|
|
|
|||
|
Feedback
|
|
Hall sensor
|
|
|
|||
|
IP Grade
|
|
IP54
|
|
|
|||
|
Color
|
|
Black
|
|
|
|||
