Quick Details
-
Warranty:
-
30 years warranty
-
Brand Name:
-
Bluesun
-
Model Number:
-
BSM440M10-54HNH
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1722*1134*30mm
-
Dimensions:
-
1722*1134*30mm
-
Weight:
-
22kg
-
Front Glass:
-
2.0mm high transmittance, AR coated tempered Glass
-
Frame:
-
Anodized Aluminium Alloy
-
Cells:
-
108 (6*18)
-
Packing Configuration:
-
36pcs/carton, 936pcs/40hq
-
Static Loading:
-
Snow Loading: 5400Pa/ Wind Loading: 2400Pa
-
Operating Temperature:
-
-40°C~ +85°C
-
Maximum Series Fuse:
-
30A
-
Maximum System Voltage:
-
1500V DC(IEC)
Quick Details
-
Cell size:
-
108 (6*18)mm
-
Type:
-
Bifacial, Double-glass, All Black, HJT, N-TYPE, TOPCON
-
Panel Efficiency:
-
22.53%
-
Warranty:
-
30 years warranty
-
Brand Name:
-
Bluesun
-
Model Number:
-
BSM440M10-54HNH
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1722*1134*30mm
-
Dimensions:
-
1722*1134*30mm
-
Weight:
-
22kg
-
Front Glass:
-
2.0mm high transmittance, AR coated tempered Glass
-
Frame:
-
Anodized Aluminium Alloy
-
Cells:
-
108 (6*18)
-
Packing Configuration:
-
36pcs/carton, 936pcs/40hq
-
Static Loading:
-
Snow Loading: 5400Pa/ Wind Loading: 2400Pa
-
Operating Temperature:
-
-40°C~ +85°C
-
Maximum Series Fuse:
-
30A
-
Maximum System Voltage:
-
1500V DC(IEC)
Products Description
|
SPECIFICATIONS
|
|
|
|
|
|
|||||
|
Module Type
|
BSM425M10-54HNH
|
BSM430M10-54HNH
|
BSM435M10-54HNH
|
BSM440M10-54HNH
|
BSM445M10-54HNH
|
|||||
|
Maximum Power (Pmax/W)
|
STC
|
STC
|
STC
|
STC
|
STC
|
|||||
|
|
425
|
430
|
435
|
440
|
445
|
|||||
|
Operating Voltage (Vmp/V)
|
31.69
|
31.87
|
32.06
|
32.25
|
32.44
|
|||||
|
Operating Current (Imp/A)
|
13.42
|
13.5
|
13.58
|
13.66
|
13.74
|
|||||
|
Open-Circuit Voltage (Voc/V)
|
38.29
|
38.48
|
38.67
|
38.86
|
39.05
|
|||||
|
Short-Circuit Current (Isc/A)
|
14.16
|
14.24
|
14.32
|
14.40
|
14.48
|
|||||
|
Module Eficiency
|
21.76
|
22.02
|
22.28
|
22.53
|
22.79
|
|||||
|
STC: Irradiance 1000W/m2 , Cell Temperature 25°C, Air Mass AM1.5
NMOT: Irradiance at 800W/m2 , Ambient Temperatue 20°C, Air Mass AM1.5, Wind Speed 1m/s
|
|
|
|
|
|
|||||
|
|
|
|
|
|
||||||

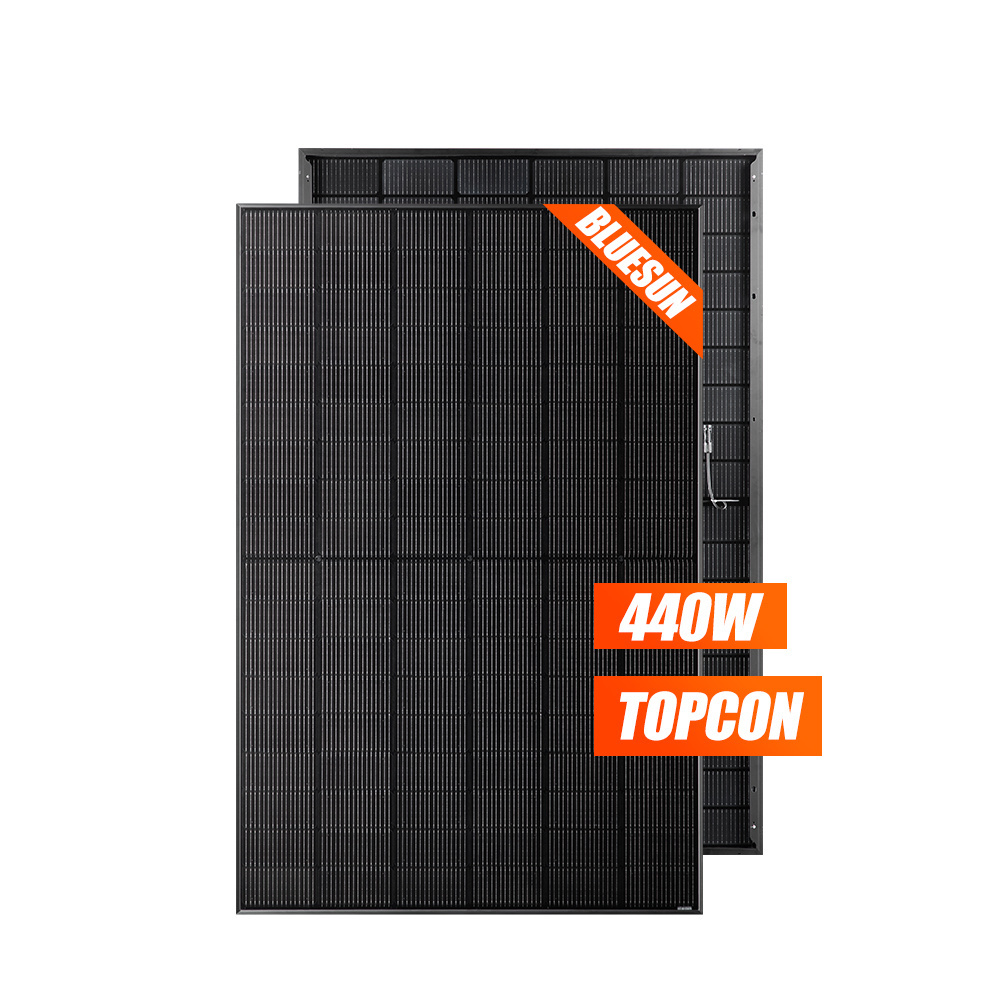

Bluesun Topcon Solar Panel
Our Exhibitions
2023 SOLARTECH INDONESIA
2023 INTERSOLAR MEXICO
SOLAR & STORAGE LIVE UK 2023
2023 INTER SOLAR NORTH AMERICA
.
2023 SOLARTECH
COLOMBIA
SOLAR SOLUTIONS INT AMSTERDAM
.
Projects
Bluesun‘s export volume is as high as
22GW
, with projects in more than
185
countries around the world.
Our Company
Bluesun Solar---is one of the solar power solution leading companies in China. Specializing in research and development of solar panel, lithium battery and BMS. Bluesun product has exported to more than 185 countries and regions since 2022. We devote ourselves to
provide excellent solar solution.
Payment
|
Payment Term
|
T/T
|
EXW
|
30% T/T in advance, paid the balance before shipment
|
|
|
|
|||||
|
|
|
FOB
|
|
|
|
|
|||||
|
|
|
CFR(C&F)
|
30% T/T in advance, paid the balance against copy of B/L
|
|
|
|
|||||
|
|
|
CIF
|
|
|
|
|
|||||
|
|
L/C
|
L/C amount above 50,000 usd, we can accept L/C at sight
|
|
|
|
|
|||||
|
|
West Union
|
Amount lower than 5000usd
|
|
|
|
|
|||||
|
|
West Union
|
|
|
|
|
|
|||||
|
Delivery Time
|
7~10days after receiving payment for one container
|
|
|
|
|
|
|||||
We welcome use Trade Assurance, you'll enjoy:
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount
