Quick Details
-
Model Number:
-
BK-CA04
-
Place of Origin:
-
Shandong, China
-
Model:
-
BK-CA04
-
Test Principle:
-
Optical Colorimetry
-
Test Items:
-
PT,APTT,TT,FIB
-
Test Channel:
-
4
-
Wavelength:
-
470nm
-
Sample Incubation Position:
-
12
-
Reagent Incubation Position:
-
5
-
lncubation Time:
-
1~999s
-
Reaction Time:
-
1~99s
-
Reagent Dosage:
-
Minimum dosage 20μl
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Onsite Training
-
Brand Name:
-
BIOBASE
-
Model Number:
-
BK-CA04
-
Place of Origin:
-
Shandong, China
-
Model:
-
BK-CA04
-
Test Principle:
-
Optical Colorimetry
-
Test Items:
-
PT,APTT,TT,FIB
-
Test Channel:
-
4
-
Wavelength:
-
470nm
-
Sample Incubation Position:
-
12
-
Reagent Incubation Position:
-
5
-
lncubation Time:
-
1~999s
-
Reaction Time:
-
1~99s
-
Reagent Dosage:
-
Minimum dosage 20μl
Product Description

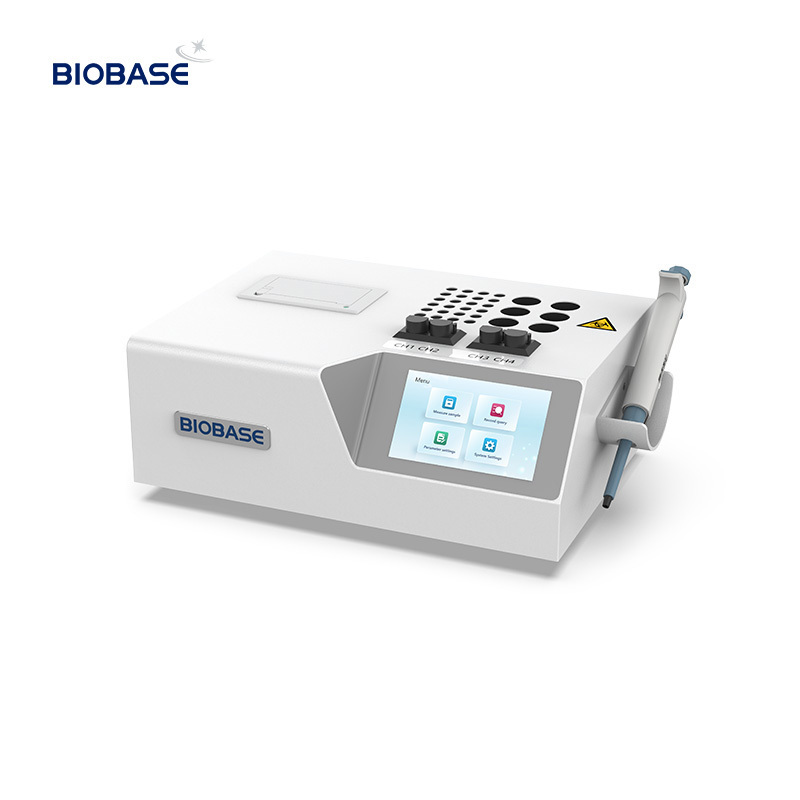

Blood Coagulation Analyzer
Features
●Dual-channel independent detection, can analyze different items at the same time
●5-inch high-definition touch screen, easy to operate
●Open system, good compatibility, Supports reagents of various specifications
●20,000 results storage
●Equipped with multiple pre-temperature positions to improve detection efficiency
●Built-in thermal printer
●The pipette automatically triggers the measurement, and the measurement time can be accurate to tenths of a second
●Less reagent consumption
●5-inch high-definition touch screen, easy to operate
●Open system, good compatibility, Supports reagents of various specifications
●20,000 results storage
●Equipped with multiple pre-temperature positions to improve detection efficiency
●Built-in thermal printer
●The pipette automatically triggers the measurement, and the measurement time can be accurate to tenths of a second
●Less reagent consumption
Product Paramenters
|
Model
|
BK-CA02
|
BK-CA04
|
|
|
Test Principle
|
Optical Colorimetry
|
|
|
|
Test Items
|
PT, APTT, TT, FIB
|
|
|
|
Test Channel
|
2 (can test different projects at the same time)
|
4 (can test different projects at the same time)
|
|
|
Wavelength
|
470nm
|
|
|
|
Detection Time
|
Normal sample detection time is 20 to 40 seconds, and can be set arbitrarily from 20 to 99 seconds
|
|
|
|
Sample Incubation Position
|
12
|
24
|
|
|
Reagent Incubation Position
|
5
|
6
|
|
|
Detection Position Temperature
|
37.0±1.0°C
|
|
|
|
Incubation Position Temperature
|
37.0±1.0°C
|
|
|
|
Incubation Time
|
1-999s
|
|
|
|
Reaction Time
|
1-99s
|
|
|
|
Reagent Dosage
|
Minimum dosage 20μl
|
|
|
|
Sample Volume
|
20μl~40μl
|
|
|
|
Display
|
5-inch high-definition color touch screen
|
|
|
|
Storage
|
20,000 results storage, automatically save measurement data when power off
|
|
|
|
Communication Interface
|
RS232 serial interface, support LIS system
|
|
|
|
Printer
|
Built-in thermal printer
|
|
|
|
Power Supply
|
AC100~240V, 50/60Hz
|
|
|
|
Consumption
|
70VA
|
|
|
|
Ambient Temperature
|
10℃～30℃
|
|
|
|
Relative Humidity
|
≤80%
|
|
|
|
Atmospheric Pressure
|
86kPa~106kPa
|
|
|
|
External Size (W* D*H)
|
360*210*120mm
|
390*250*135mm
|
|
|
Net Weight
|
3.5kg
|
4.96kg
|
|
|
Package Size (W* D*H)
|
376*246*316mm
|
445*305*265mm
|
|
|
Gross Weight
|
5Kg
|
7kg
|
|
