Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YUTON
-
Model Number:
-
GW9-63A
-
Voltage:
-
220V/380V
-
Fan Housing Material:
-
Cast Iron with Thick Powder Coating
-
Material of Blade:
-
Cast Iron
-
Certificate:
-
Ce, CCC
-
Feature:
-
High Efficiency, Low Noise
-
Original:
-
Foshan, Guangdong, China
-
Installation:
-
Free Standing
-
Motor:
-
Standard Motor with Pure Copper
-
Packing Detail:
-
Carton, Bubble, Wooden Plate
-
Brand:
-
Yuton
Quick Details
-
Applicable Industries:
-
Hotels, Garment Shops, Building Material Shops
-
Electric Current Type:
-
AC
-
After-sales Service Provided:
-
Video technical support
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YUTON
-
Model Number:
-
GW9-63A
-
Voltage:
-
220V/380V
-
Fan Housing Material:
-
Cast Iron with Thick Powder Coating
-
Material of Blade:
-
Cast Iron
-
Certificate:
-
Ce, CCC
-
Feature:
-
High Efficiency, Low Noise
-
Original:
-
Foshan, Guangdong, China
-
Installation:
-
Free Standing
-
Motor:
-
Standard Motor with Pure Copper
-
Packing Detail:
-
Carton, Bubble, Wooden Plate
-
Brand:
-
Yuton

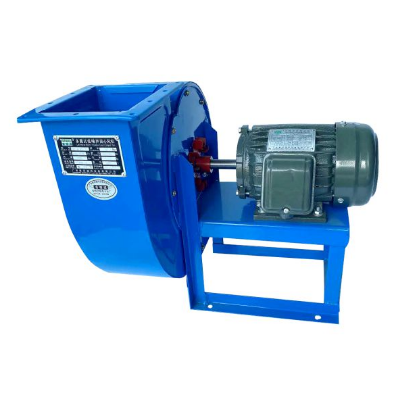

Hot Air Centrifugal Ventilating Fan Blower
1.Typical Feature and Application
| This kind of multi-blades centrifugal fan is specific designed for purification of industrial and environmental noise. The impellers are adjusted strictly by static balance and dynamic balance ,so it runs stably with low noise and big air volume, less vibration and long-life service. They are widely used for exhausting, air ventilation, fume extraction in the kitchen of canteen, hotel, restaurant. The transited medium is air and other non-spontaneous combustion air, and the air with no harm to people. The medium can not contain any adhesive material, temperature no higher than 80 centigrade ,dust or particulate no larger than 150 cube meter per mg. |
2. Performance Range
|
Fan Type |
High Temperature Centrifugal Fan |
|
Certificate |
CE,CCC |
|
Electricity Current Type |
AC(Alternating Current) |
|
Voltage |
220V/380V |
|
Frequency |
50HZ |
|
Power |
0.55KW-2.2KW |
|
Speed |
1450-2900 RPM |
|
Air Volume |
900m³/h up to 6300 m³/h |
|
Static Pressure |
343 Pa up to 1275 Pa |
|
Motor |
Standard Motor |
3.Applications
|
Hotel |
|
Apartment |
|
Lampblack purifying |
4.Composition
|
Fan Housing |
Cast Iron Material with Powder coating |
|
Impeller |
Cast Iron Material,adjusted to static and dynamic balance,low noise,high efficiency,stable function |
|
Inlet and Outlet Ducts |
Connect with flanges |
|
Motor |
Standard Motor, cast Iron with pure copper |
|
Motor Support |
Cast Iron with powder coating |
5.Fan Operation
|
Before set up the fan,check gap sizes of all parts of the fan to make sure the rotating parts will not hit the fixed parts. |
|
When the fan is rotating,check the temperature of the bearing after the impellers reach normal speed. If there is no special request for the temperature of the bearing,it can not higher than ambient temperature 40 °c |
|
If the fan has very severe shock,hitting ,and bearing temperature rise rapidly,please stop the fan right away. |
6.Fan Certificate and Quality Control
|
By our efforts,our company Gaoze was selected as the member of China Gneral Machinery Industry Association Ventilation Fan Branch. Our products enjoy good reputation among our customers . Our Products were awarded as "Brand-name and High Quality Products" by "China Quality Evaluation Center" &"Guangdong Branch of Social Servey Institure China"; Furthermore,a number of products are applied patents,which are up to the advanced standard. We are "Guangdong Private Scientific and Technological Enterprise" and past the "National Industrial Products License Certificate". Energy saving axial duct fan and multi-blade centrifugal fan developed by our company obtained the standard certification,most of our products past the certificate of "CCC" and "CE". We are fully implementing ISO 9001:2008 Quality System.
|
7.Fan Maintain
|
Periodically clean the inner dust, dirt and other impurities |
|
Periodlically check the fan to avoid rusting |
|
Change the lubricating oil after opening the fan .The lubricating oil shall be changed according to the actual situation. |
8.Technical Specification
| Model (No.) | Impeller Diameter | Voltage | Power | Revolution | Air Flow | Pressure | Product Size |
| (V) | (KW) | (rpm) | (m 3 /h) | Pa | (cm) | ||
| 2A | 200mm | 220/50Hz | 0.55 | 1450 | 900-1000 | 342-294 | 39X39X35 |
| 380/50Hz | 0.55 | 1450 | 900-1000 | 342-294 | 39X39X35 | ||
| 380/50Hz | 1.1 | 2900 | 1900-2500 | 1128-932 | 39X39X35 | ||
| 2.5A | 250mm | 220/50Hz | 0.75 | 1450 | 2000-3000 | 550-460 | 47X42X41 |
| 380/50Hz | 0.75 | 1450 | 2000-3000 | 550-460 | 47X42X41 | ||
| 380/50Hz | 2.2 | 2900 | 4200-6300 | 1147-1275 | 47X42X41 | ||
| 3A | 300mm | 380/50Hz | 1.1 | 1450 | 3200-3800 | 600-500 | 54X46X50 |
| 380/50Hz | 1.5 | 1450 | 3800-4000 | 780-500 | 54X46X50 |
9.Packing Detail
|
Bubble Packing: a cost-effective packing method, it is suggested if order is one full container |
|
Carton Packing: standard packing ,it is suggested if order is one full container |
|
Wooden pallet: more safe packing, it is suggested if order is not enough one full container |
