● Engine
● Meet the environmental temperature 40 ℃
water tank radiator,Driving belt cooling
fans, with fan safety shield
● 24 V charging generators
● Generator:Single bearing generator,IP23
Grading Protection, H Insulation degree
● Shock absorber
● Dry air filter,Fuel filter,Oil filter
● Power output circuit breaker
● Standard control panel
● 12 V battery and battery connection cables
● Exhaust pipe,Bellows,Flange,Muffler set
● Documents and Manuals
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Rayming
-
Model Number:
-
LMYD-50
-
Speed:
-
1500/1800rpm
-
Product Name:
-
50KW Yangdong Wholesale one year warranty diesel generator engine
-
Engine:
-
Yangdong/Weichai/Yuchai/Volvo/Perkins
-
Alternator:
-
Rayming/Stamford/Leroy Somer
-
Cooling method:
-
Water-cooling System
-
Color:
-
Customers' Requirement
-
Control panel:
-
Deepsea/ Harsen / Smartgen
-
Options:
-
Automatic Transfer Switch
-
Installing:
-
Provied
Quick Details
-
Rated Voltage:
-
220v/380v/230v/400v
-
Rated Current:
-
90A
-
Frequency:
-
50/60hz
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Rayming
-
Model Number:
-
LMYD-50
-
Speed:
-
1500/1800rpm
-
Product Name:
-
50KW Yangdong Wholesale one year warranty diesel generator engine
-
Engine:
-
Yangdong/Weichai/Yuchai/Volvo/Perkins
-
Alternator:
-
Rayming/Stamford/Leroy Somer
-
Cooling method:
-
Water-cooling System
-
Color:
-
Customers' Requirement
-
Control panel:
-
Deepsea/ Harsen / Smartgen
-
Options:
-
Automatic Transfer Switch
-
Installing:
-
Provied
Product Description

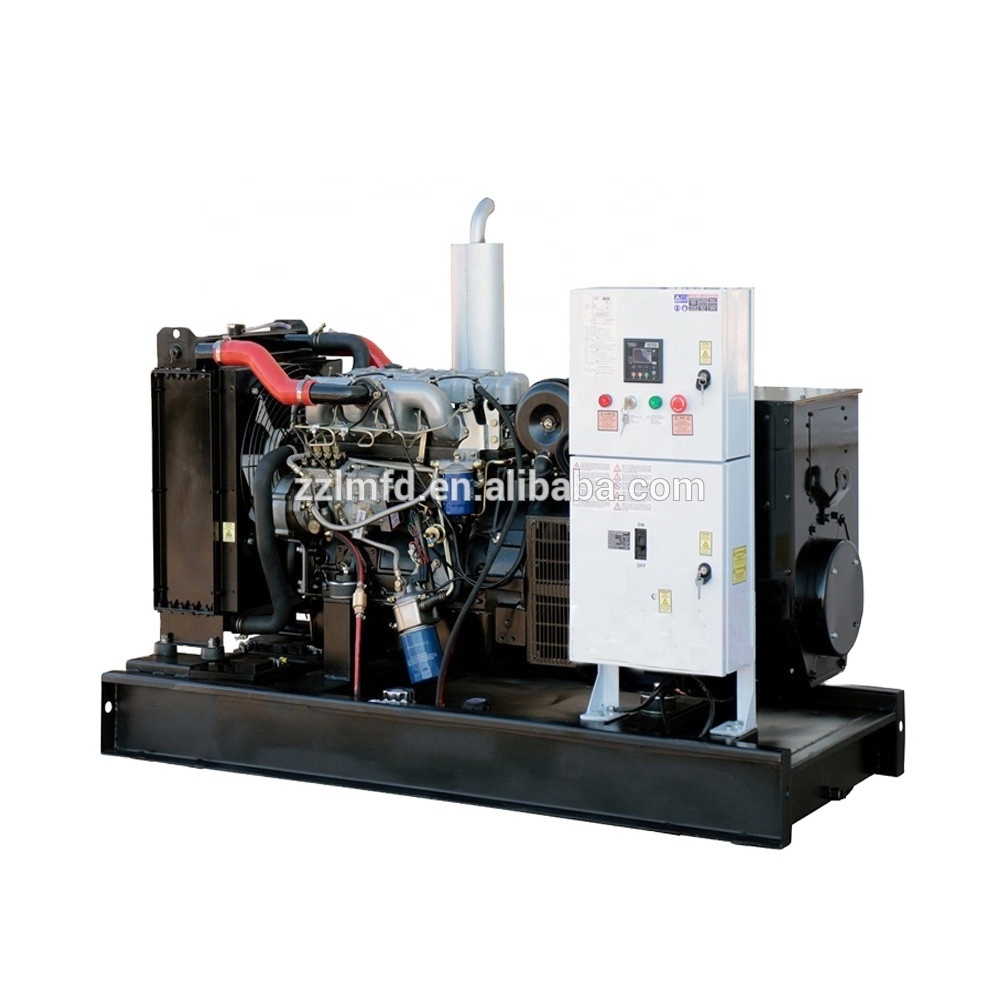

AC 3 Phase 50kw Power Yangdong Diesel Generator Engines Powered By Engine Y4105ZLD For Sale
Our factory has CCEC, DCEC, , VOLVO, Deutz, Daewoo, Shangchai, Weichai Deutz,Jichai etc World and Chinese famous engine for genenrators set. We have specialized in synchronous 100% copper wire alterantor for more than 20 years. LM brand alternator has been expanded all over the world. The power range of our generator is from 6.5KW~2000KW.
Standard configuration
Overall description:
|
Optional Accessories
|
|
|
|
|||
|
♦Auto startup control panel
|
|
|
|
|||
|
♦Automatic control panel(ATS)
|
|
|
|
|||
|
♦Split type daily fuel tank;Integrated base fuel tank
|
|
|
|
|||
|
♦Rainproof enclosure;Soundproof enclosure
|
|
|
|
|||
|
♦Mobile power station
|
|
|
|
|||
|
♦Mute power station
|
|
|
|
|||
|
Unit parameters
|
|
|
|
|||
|
Power:
|
50kw/60kva
|
|
|
|||
|
Rated voltage:
|
400V/230V
|
|
|
|||
|
Rated current:
|
90A
|
|
|
|||
|
Rated frequency:
|
50/60Hz
|
|
|
|||
|
The factor of rated power:
|
0.8
|
|
|
|||
|
The regulating rate of instantaneous voltage:
|
≤±15%
|
|
|
|||
|
The regulating rate of steady voltage:
|
≤±0.5%
|
|
|
|||
|
The waving rate of voltage:
|
≤0.5%
|
|
|
|||
|
Voltage waveform distortion degree:
|
≤5%
|
|
|
|||
|
The time of steady voltage:
|
≤1.5sec
|
|
|
|||
|
The regulating rate of steady frequency:
|
≤±2%
|
|
|
|||
|
The regulating rate of instantaneous frequency:
|
≤±5%
|
|
|
|||
|
The time of steady frequency:
|
≤3sec
|
|
|
|||
|
The waving rate of frequency:
|
≤±0.5%
|
|
|
|||
|
The waste of fuel with full load:
|
215g/kw.h
|
|
|
|||
|
Size(mm):
|
1800*750*1200mm
|
|
|
|||
|
Weight(kg):
|
910KG
|
|
|
|||
|
The main parameters of the engine
|
|
|
|
|||
|
Brand:
|
Yangdong
|
|
|
|||
|
Model:
|
Y4105ZLD
|
|
|
|||
|
Standby power:
|
55KW
|
|
|
|||
|
Type:
|
four strokes, waste gas turbine boost,direct spurting type
|
|
|
|||
|
Cooling way:
|
water cooling
|
|
|
|||
|
With type:
|
Inline type
|
|
|
|||
|
Bore*Trip:
|
105*125mm
|
|
|
|||
|
Cylinder:
|
4
|
|
|
|||
|
Displacement:
|
4.33L
|
|
|
|||
|
Lubricating Capacity：
|
12L
|
|
|
|||
|
Speed adjustment way:
|
Electronic speed governor
|
|
|
|||
|
Rotating speed:
|
1500/1800rpm/min
|
|
|
|||
|
Starting way:
|
starting with electricity
|
|
|
|||
|
The main parameters of the generator
|
|
|
|
|||
|
Brand:
|
RAYMING
|
|
|
|||
|
Model:
|
RM-50
|
|
|
|||
|
Type:
|
brushless (AVR automatic voltage regulating)
|
|
|
|||
|
The connecting way of the phase:
|
three phases four lines
|
|
|
|||
|
Insulation degree:
|
H degree
|
|
|
|||
|
TIF:
|
<50
|
|
|
|||
|
THF:
|
<2%
|
|
|
|||
|
The factor of rated power:
|
≤±1%
|
|
|
|||
|
Grading Protection:
|
IP23
|
|
|
|||
Genset Product Process
FAQ:
Q:What are the payment terms?
A:T/T,L/C and trade assurance are acceptable,T/T will be more appreciated,30% deposit before production,70% balance before shipment.
Q:What is the delivery time?
A:At least 10-15days after the deposit for most machines.
Q:How to pack the machine?
A:Standard packaging.
Q:What's the capacity you can do?
A:We always produce any capacity depend on customer needs.
