Quick Details
-
Power:
-
3-4kw
-
Min. Lifting Height:
-
2105mm
-
Table Size:
-
2.27*1.12m
-
Overall Dimensions:
-
2480*1450*1765mm
-
Weight:
-
2760 kg
-
After-sales Service Provided:
-
Overseas service center available
-
Feature:
-
self-propelled scissor lift
-
Height:
-
12m
-
Platform size:
-
2270*1120
-
Power supply:
-
battery
-
Lifting speed:
-
84/38sec
-
Control power:
-
48V
-
Control methods:
-
DTC
-
Material:
-
High Strength Steel
-
Application:
-
Aerial Construction Work
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XINJUXIN
-
Power:
-
3-4kw
-
Min. Lifting Height:
-
2105mm
-
Table Size:
-
2.27*1.12m
-
Overall Dimensions:
-
2480*1450*1765mm
-
Weight:
-
2760 kg
-
After-sales Service Provided:
-
Overseas service center available
-
Feature:
-
self-propelled scissor lift
-
Height:
-
12m
-
Platform size:
-
2270*1120
-
Power supply:
-
battery
-
Lifting speed:
-
84/38sec
-
Control power:
-
48V
-
Control methods:
-
DTC
-
Material:
-
High Strength Steel
-
Application:
-
Aerial Construction Work

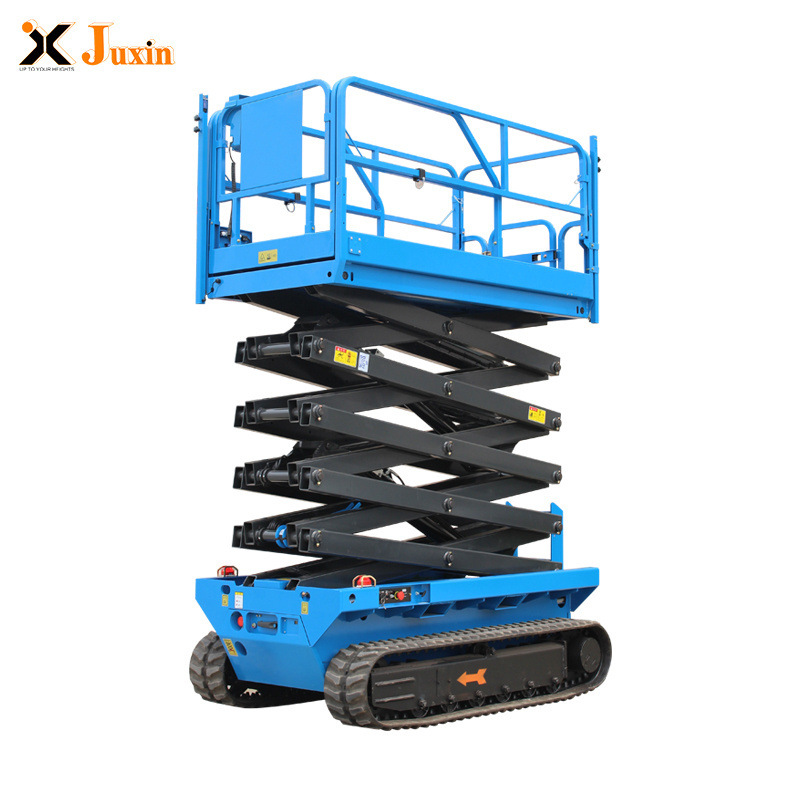

Crawler Lifting Work Platform from 4m to 12m
Products Description
Self-propelled Track Crawler Scissor Lifts are electric drive, 24v or 48v optional. Our tracked scissor lifts are construction•oriented, and can increase operator productivity on demanding outdoor worksites, having advantages such as strong capacity, convenient operation, safety, reliability and good quality.
Our electric powered scissor Lifts are energy-saving and environmentally-friendly with less noise and no emission. With the maximum working height of 6m to 12m, it is suitable for rough terrain outdoor working environment. Crawler self propelled scissor lift can work without being limited by the road conditions. This kind of scissor lift is perfectly suitable for bad road conditions, such as muddy, snowy, sandy road. With stable and secure structure, it is widely used for wild jungle, prairie, field...
Specification
|
Model
|
Platform Height(m)
|
Working Height(m)
|
Platform Size(m)
|
Load
(kg) |
Overall Dimension
(l*w*h) |
Lifting Motor
(V/kw) |
Weight
(kg) |
|
GTJZ0610LDN
|
6
|
8
|
1.859*0.81
|
230
|
2.056*1.03*1.815
|
24/1.2
|
1680
|
|
GTJZ0613LD
|
6
|
8
|
2.27*1.11
|
450
|
2.47*1.39*1.75
|
48/4
|
2520
|
|
GTJZ0813LD
|
8
|
10
|
2.27*1.11
|
450
|
2.45*1.34*1.905
|
48/4
|
2670
|
|
GTJZ1013LD
|
9.75
|
12
|
2.27*1.12
|
320
|
2.47*1.39*1.995
|
48/4.5
|
2840
|
Product Details
Related products
Product Application
•Rough-terrain capability
•6-14m working height
•450/320kg load capacity
•24V DC or 48V power source with long working cycles
•Zero inside turning radius
•Derivable and functional at full height
•Outriggers (optional)
•Emergency stop at both platform and ground controls
•Proportional controls for drive functions
•6-14m working height
•450/320kg load capacity
•24V DC or 48V power source with long working cycles
•Zero inside turning radius
•Derivable and functional at full height
•Outriggers (optional)
•Emergency stop at both platform and ground controls
•Proportional controls for drive functions
