Quick Details
-
Material:
-
Aluminum, copper
-
Power:
-
/
-
Voltage:
-
1.7A
-
Transmmision ratio:
-
180:1
-
Repeatability:
-
0.005°
-
Standard motor:
-
42 stepping motor(1.8°)
-
Maximum static torque:
-
0.4N.m
-
Rated working current:
-
1.7A
-
Maximum speed (2 subdivsion):
-
25°/s
-
Resolution (8 subdivision):
-
0.00125°
-
Standard zero position:
-
Yes
-
Central load:
-
50kg
-
Weight:
-
1.8kg
Quick Details
-
Place of Origin:
-
Chengdu,China
-
Brand Name:
-
BRTE
-
Model Number:
-
BRTE7SRA1100(T)
-
Material:
-
Aluminum, copper
-
Power:
-
/
-
Voltage:
-
1.7A
-
Transmmision ratio:
-
180:1
-
Repeatability:
-
0.005°
-
Standard motor:
-
42 stepping motor(1.8°)
-
Maximum static torque:
-
0.4N.m
-
Rated working current:
-
1.7A
-
Maximum speed (2 subdivsion):
-
25°/s
-
Resolution (8 subdivision):
-
0.00125°
-
Standard zero position:
-
Yes
-
Central load:
-
50kg
-
Weight:
-
1.8kg

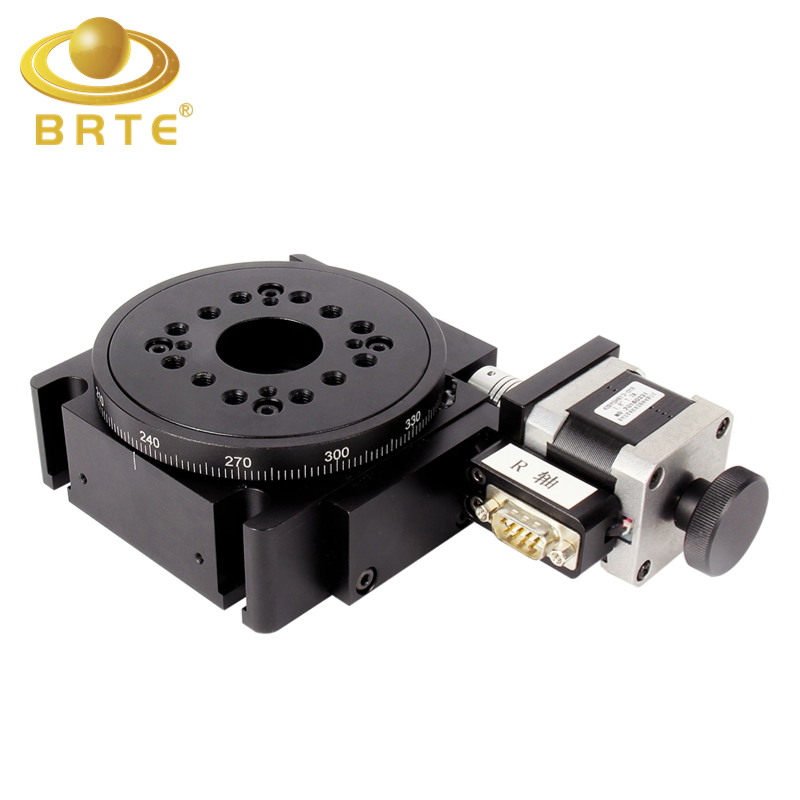

Products Description
-Precision machining bearing steel for shafting, high precision, big load, and long life
-Precision grinding worm and worm gear, the stage rotate reversible and comfortable with little backlash
-Eliminating clearance structure for long-term using
-The center of tolerance holes and rotation is coincide with each other, convenient for positioning
-High quality elastic coupling for connecting motor and worm, synchronous transmission and little noise
-The outer ring of the stage is graduated by laser sculpturee, convenient for reading and initial positioning
-Servo motor can be replaced for industry
-The stage of 7SRA1100T is with positioning rim
-
BRTE7SRA1100 and BRTE7SRA1100T specifications are the same, The difference is the material and shape on the top of the table, BRTE7SRA1100T's countertop material is copper. You can choose different models according to your actual needs.
|
Model
|
BRTE7SRA1100/BRTE7SRA1100T
|
|
Table diameter
|
Ø100mm
|
|
Transmmision ratio
|
180:1
|
|
Repeatability
|
0.005°
|
|
Standard motor
|
42 stepping motor (1.8°)
|
|
Maximum static torque
|
0.4N.m
|
|
Rated working current
|
1.7A
|
|
Maximum speed (2 subdivision)
|
25°/s
|
|
Resolution (8 subdivision)
|
0.00125°
|
|
Standard zero position
|
Yes
|
|
Central load
|
50kg
|
|
Weight
|
1.8kg
|
