Standard Test Method for High Strain Dynamic Testing of Deep Foundations ASTM D4945-17
Standard Test for Low Strain Impact Integrity Testing of Deep Foundations ASTM D5882-16
Technical Code for Detection of Building Foundation Pile JGJ 106-2014
Dynamic Testing Technology Regulations on Highway Engineering Foundation Pile JTG/T F81-01-2004
Nondestructive Detection Code for Railway Engineering Foundation Pile TB 10218-2019
Technical Specification for Foundation Piles Testing of Highway Engineering JTG/T 3512-2020
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
RSM-PDT(D)
-
Display:
-
8.4-inch true-color LCD screen
-
Operation method:
-
touch screen
-
Frequency bandwidth:
-
Speed channel: 2~12000Hz; Strain channel: 0~12000Hz
-
Number of channels:
-
PDA: four channels PIT: one channel
-
Protection level:
-
IP65
-
Continuous Wroking Hours:
-
over 10 hours
Quick Details
-
Warranty:
-
1 YEAR
-
Place of Origin:
-
China
-
Brand Name:
-
BOND TEST
-
Model Number:
-
RSM-PDT(D)
-
Display:
-
8.4-inch true-color LCD screen
-
Operation method:
-
touch screen
-
Frequency bandwidth:
-
Speed channel: 2~12000Hz; Strain channel: 0~12000Hz
-
Number of channels:
-
PDA: four channels PIT: one channel
-
Protection level:
-
IP65
-
Continuous Wroking Hours:
-
over 10 hours
Produict Details

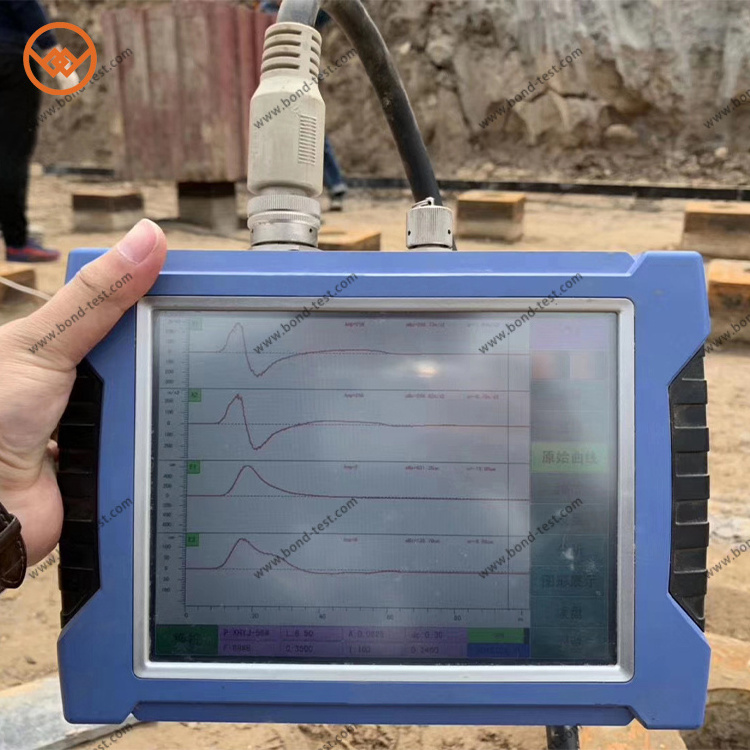

RSM-PDT(D) High-Strain Pile Bearing Tester
RSM-PDT(D) High-Strain Pile Bearing Tester is mainly used for the testing of high strain bearing capacity of foundation piles, and is compatible with continuous pile driving monitoring and low strain integrity testing. The device is compatible with two test methods,economical and practical, has multiple functions, user-friendly,true and reliable data sampling.
Application
1. High strain bearing capacity detection of pile
2. Low strain pile integrity detection by reflected wave method (optional)
1. Original instant floating-point amplification technology, large dynamic range, high signal-to-noise ratio, taking into account strong and weak signal acquisition without distortion;
2. The balance of strain bridge can be adjusted automatically to reduce the impacts of initial deformation of strain ring on signal acquisition and eliminate the signal zero drift;
3. With fast signal acquisition pace, the 60 hammers/min signal acquisition can be completed and the piling monitoring testing can be carried out in real time;
4. Self-test for sensor installation status can be conducted in the field in real time;
5. Analysis results by Case method, F-ZV curves and upper and lower traveling wave curves are displayed in the field;
6. The three-dimensional correction function for shallow defect can be located accurately;
7. Industrial-grade touch screen, smooth and precise operation, adapt to strong light environment;
2. The balance of strain bridge can be adjusted automatically to reduce the impacts of initial deformation of strain ring on signal acquisition and eliminate the signal zero drift;
3. With fast signal acquisition pace, the 60 hammers/min signal acquisition can be completed and the piling monitoring testing can be carried out in real time;
4. Self-test for sensor installation status can be conducted in the field in real time;
5. Analysis results by Case method, F-ZV curves and upper and lower traveling wave curves are displayed in the field;
6. The three-dimensional correction function for shallow defect can be located accurately;
7. Industrial-grade touch screen, smooth and precise operation, adapt to strong light environment;
8. High Grade Engineered plastic ABS+PC.Flame retardant material, high temperature resistant design;
9.IP65 Dustproof and waterproof design, fearless of the extreme;
11.Built-in 4G module, can realize software online one-key upgrade;
12.9mm ultra-thin large-capacity battery, removable, ensuring uninterrupted work in the field;
13.Newly upgraded software, User-friendly control interface;
14.Bilingual operation in both Chinese and English is supported.
9.IP65 Dustproof and waterproof design, fearless of the extreme;
11.Built-in 4G module, can realize software online one-key upgrade;
12.9mm ultra-thin large-capacity battery, removable, ensuring uninterrupted work in the field;
13.Newly upgraded software, User-friendly control interface;
14.Bilingual operation in both Chinese and English is supported.
Applicable standards
Specification
|
Display method
|
8.4-inch true-color LCD screen
Resolution: 800×600 |
Frequency
bandwidth |
Speed channel: 2～12000Hz
Strain channel: 0～12000Hz |
|
Operation mode
|
Capacitive touch
|
Trigger level
|
Four-level selectable
|
|
Storage capacity
|
16G electronic hard disk
|
Number of channels
|
PDA: four channels
PIT: one channel |
|
Signal acquisition method
|
Wired
|
Sampling mode
|
2 accelerometers
+ 2 strain transducers |
|
Data export method
|
USB
|
Sensor
|
Piezoelectric accelerometer, strain transducer
|
|
Master control system
|
Low power embedded system Basic frequency≥1GHz
Memory: 512M |
Sampling interval
|
PDA:50～500μs adjustable in stages
PIT:5～1000μs continuously adjustable |
|
Floating point magnification
|
1～256
|
Protection level
|
IP65
|
|
Dynamic range
|
≥100 dB
|
Weight
|
2.0 kg (including battery)
|
