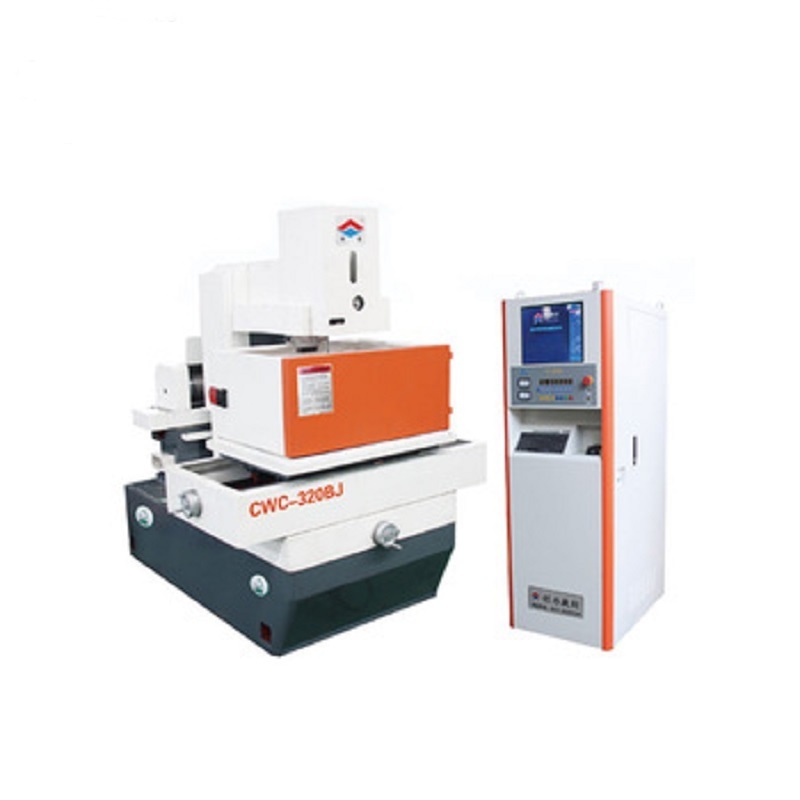

Low price cnc Edm wire Cutting Machine DK7732C(Desktop computer control cabinet)
Low price cnc Edm wire Cutting Machine DK7732C(Desktop computer control cabinet)

Low price cnc Edm wire Cutting Machine DK7732C(Desktop computer control cabinet)

FOB Reference Price: Get Latest Price
≥1 Sets
US $17367.14
≥10 Sets
US $17350
≥20 Sets
US $17340
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Voltage:
custom
Dimension(L*W*H):
1600*1320*1840
Weight (KG):
1800
Power (kW):
2
After-sales Service Provided:
No after-sales service
Product name:
cnc Edm wire Cutting Machine DK7732C(Desktop computer control cabinet)
Workbench size (mm):
631*360
X/Y axis travel (mm):
400*320
Maximum straight cut thickness (mm):
280-300
Maximum load weight (kg):
400
Optimum surface roughness:
Ra≤2.0um
Precision:
JB-T 1199.1-2014
Machine size (mm):
1600*1320*1840

Quick Details

Place of Origin:
Jiangsu, China
Year:
2019
Brand Name:
CHUANGWEI
Voltage:
custom
Dimension(L*W*H):
1600*1320*1840
Weight (KG):
1800
Power (kW):
2
After-sales Service Provided:
No after-sales service
Product name:
cnc Edm wire Cutting Machine DK7732C(Desktop computer control cabinet)
Workbench size (mm):
631*360
X/Y axis travel (mm):
400*320
Maximum straight cut thickness (mm):
280-300
Maximum load weight (kg):
400
Optimum surface roughness:
Ra≤2.0um
Precision:
JB-T 1199.1-2014
Machine size (mm):
1600*1320*1840

Low price cnc Edm wire Cutting Machine DK7732C(Desktop computer control cabinet)

Product Description

Model

Worktable size (mm)

Worktable travel (mm)

Max. cutting thickness (mm)

Processing taper

Max. load weight (kg)

Machine weight (kg)

Machine dimension(mm)

Power consumption

DK7720

500×350

200x250

250

80mm

100

800

1070×610×1200

AC380V  /220V 50HZ  ≤2kw

DK7725

580×410

250×320

300

6°/80mm

120

1200

1120x950x1240

DK7732

630x360

320*400

400

6°/80mm

400

1400

1240x1170x1400

DK7740

690x460

400x500

400

6°/80mm

500

1800

1600x1240x1400

DK7763

1040x650

630x800

600

6°/80mm

1200

3200

2100x1940x1780

DK7780

1350x980

800x1000

600

6°/80mm

1800

5000

3000x2400x1800

DK7740J

940X540

400X630

500

6°/80mm

500

2200

1700x1600x1600

DK7750J

1140x650

500x800

500

6°/80mm

800

2800

2000x1900x1700

DK763J

1350x750

630x1000

600

6°/80mm

1200

3500

2300x2200x1800

DK7780J

1660x1000

800x1200

600

6°/80mm

2500

5500

3000x2400x1800

DK77100

1180x1700

1000x1200

600

6°/80mm

2800

6500

3000 × 2800 × 2500

DK77120

1300x1900

1200x1600

600

6°/80mm

4000

10000

4200×3700×2000

DK77100J

1180x1700

1000x1400

600

6°/80mm

2800

6500

3000x2800x2500

DK77120J

1350x2030

1200x1600

900

6°/80mm

3000

7600

3300x3000x2300
