Quick Details
-
Display Type:
-
Digital Only
-
Operating Temperature:
-
0-50
-
Accuracy Class:
-
0.3%
-
Measuring Range:
-
-1999~9999
-
Supply Voltage:
-
90-265VAC/DC
-
Dimensions:
-
96*48*80mm
Quick Details
-
Place of Origin:
-
Guangdong, China, Guangdong, China (Mainland)
-
Size:
-
48*96*100
-
Sensor Meter:
-
Sensor Meter
-
Display Type:
-
Digital Only
-
Operating Temperature:
-
0-50
-
Accuracy Class:
-
0.3%
-
Measuring Range:
-
-1999~9999
-
Supply Voltage:
-
90-265VAC/DC
-
Dimensions:
-
96*48*80mm

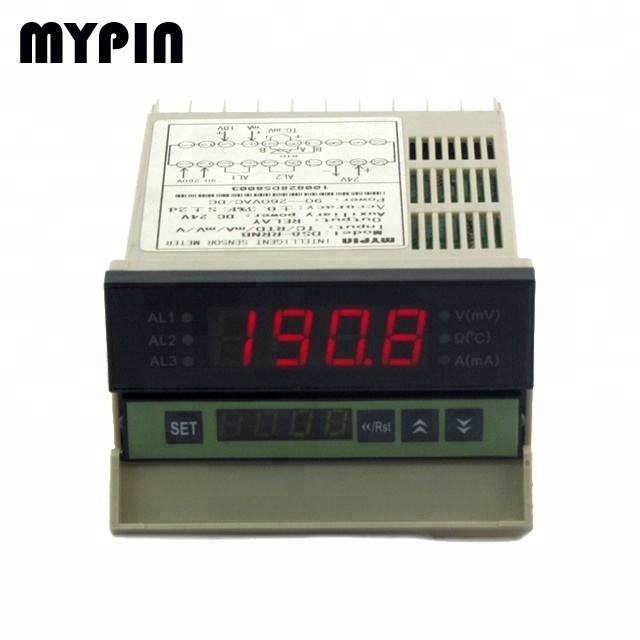

DS8-RRRRB Intelligent Sensor Meter Pressure Meter Sensor Indicator
Features:
1. Universal input: 4-20mA, 0-10V, 0-75mV, 0-400Ω, Pt100, K, E, J, R, S, T, B or others;20 segments of customized linear input. (Configurable by software) .
2. 4 alarms relays, high, low, interval, etc. alarms adjustable by user.
contact capacity: AC 250V/3A or DC 30V/3A (resistance load).
3.Transmitter power supply: DC 24V or DC12V / 30mA max..
4.Product power supply: AC 90~260V 50/60Hz, power consumption<5VA .
5. Optional: a. Isolated analog output: 0~10mA or 4~20mA, configurable by software.
b. RS485 or RS232 interface.
Applications:
DS series multi-function indicator can measure voltage/current signals of any ranges; Can select data holding or peak & vale holding function; Applied for 2-wire transformer, pressure sensor, 4- wire weighing sensor, remote pressure meter and other sensor measuring devices; For non-linear input, can provide 20 segments of costomized linear process; Can measure AC / DC voltage/ current and resistance, isolated input /output and external supply; Can link to PC through communcation interface..
Diagram & Mounting:
