Quick Details
-
Model Number:
-
ATHC15T, ATHC15T
-
Max. Current:
-
16A
-
Switch Contact:
-
1 changeover switch
-
Certifications:
-
CE/CB/IEC
-
Switch Power:
-
16A 250VAC/10A 250VAC
-
Display:
-
LCD
-
Function:
-
7 Days 24hrs Programmable Time Switch
-
Frequency:
-
50-60Hz
-
Voltage Rating:
-
AC220V 50/60Hz
-
Power Consumption:
-
5VA(MAX)
Quick Details
-
Max. Voltage:
-
250VAC, 220VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Ourtop
-
Model Number:
-
ATHC15T, ATHC15T
-
Max. Current:
-
16A
-
Switch Contact:
-
1 changeover switch
-
Certifications:
-
CE/CB/IEC
-
Switch Power:
-
16A 250VAC/10A 250VAC
-
Display:
-
LCD
-
Function:
-
7 Days 24hrs Programmable Time Switch
-
Frequency:
-
50-60Hz
-
Voltage Rating:
-
AC220V 50/60Hz
-
Power Consumption:
-
5VA(MAX)
| AHTC15T | ||||
| Technical data | ||||
|
Voltage rating:AC220V 50/60Hz
|
Switching power:16A 250VAC(cosφ=1) | |||
| 10A 250VAC(cosp=0.6) | ||||
|
Incandescent lamp load:2300W
Halogen lamp load:2300W |
||||
|
ON/OFF operation:8 ON & 8 OFF
Power consumption:5VA(max) |
||||
| Dispaly:LCD | 1000VA,Parallel compensated 400VA(42μf) | |||
|
Switching contact:1 changeover switch
Power reserve:3 years(lithium battery) |
||||
|
Minimum interval:minute(pulse/cycle 1 s)
|
||||
| Ambient humidity:35~85%rh | ||||
| Ambient temperature:-10~+40℃ | ||||

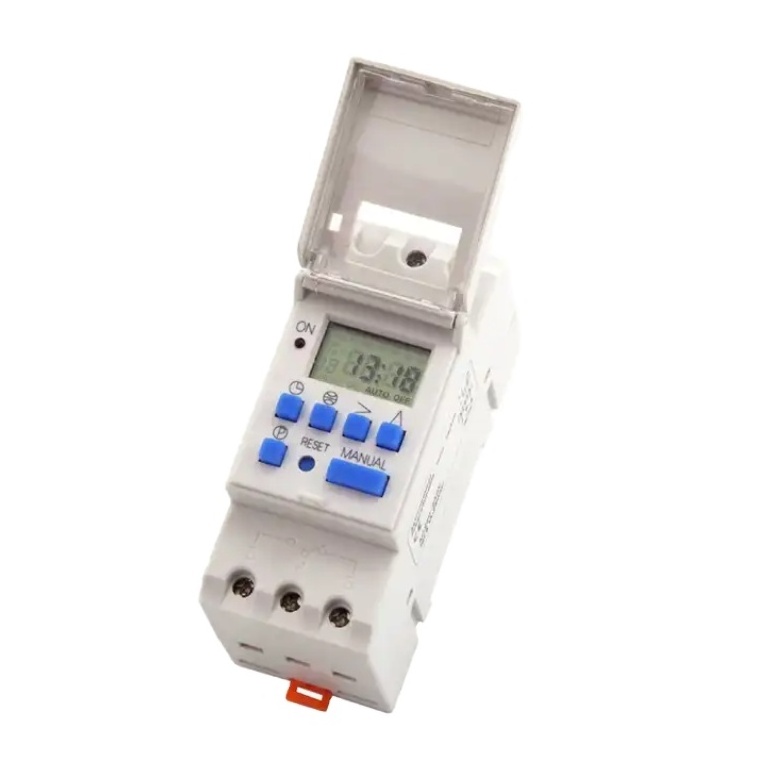

Programmable Timer Switch
The products according to the time set by the user,automatically turn on and turn off the varity of electrical equipment.Control object can lights,light boxes,neon signs,production equipment,agriculture,aquaculture,warehouse exhaust dehumidifier automatically preheat optimal control products,such as radio and television equipment.Lithium battery inside,high-precision,industrial-grade chips,strong anti-jamming
Wenzhou Ourtop Electrical Co.,Ltd produce several series products for you choose,if you are interesting in any of our product, please feel free to contact us or E-mail us,we are happy to give you more details.
