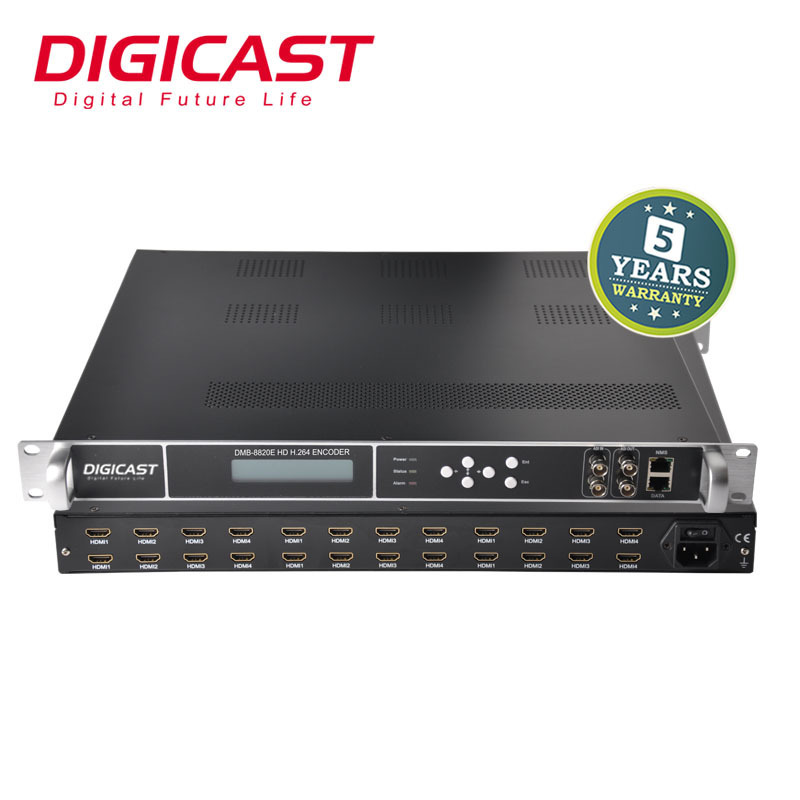

Radio TV Broadcasting HD H.264 MPEG-4 AVC to IP Encoder with 24 HD MI Input and ASI IP RTP RTSP Output

Radio TV Broadcasting HD H.264 MPEG-4 AVC to IP Encoder with 24 HD MI Input and ASI IP RTP RTSP Output

FOB Reference Price: Get Latest Price

≥1 Pieces

US $700

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Output:: 2*ASI+IP (SPTS/MPTS)

Video encoding:: MPEG4 AVC/H.264

Audio encoding:: MPEG-1 Layer 2,AAC

Quick Details

Place of Origin:: China

Nature:: HD H.264 Encoder

Input interface:: 4/8/12/16/20/24*HDMI+2*ASI(one is for backup)

Output:: 2*ASI+IP (SPTS/MPTS)

Video encoding:: MPEG4 AVC/H.264

Audio encoding:: MPEG-1 Layer 2,AAC

Order Guide

Products Description

Main Features

* 2* ASI and IP (UDP/RTP/RTSP) output
* Input interface: 4/8/12/16/24 Channel HDMI, 4 HDMI ports per module
Up to 6 Modules in Back panel
* Built-in PCR capability
* Support multiplexing with external 1*ASI in
* Providing PSI/SI compilation and NIT, LCN insertion

Video Encoding	Video compression: H.264/AVC Video inputs: 4/8/12/16/24*HDMI The Input Resolution: 1920x1080@60P, 1920x1080@60i,1920x1080@50P, 1920x1080@50i, 1280x720@60P, 1280x720@50P ,720x576@50i, 720x480@60i The Output Resolution: 1920×1080@30P, 1920×1080@25P,1280×720@30P, 1280×720@25P, 720×576@25P,720×480@30P Encoding: MPEG-4 AVC/H.264 Bit-rate : 1Mbps~13Mbps Rate Control : CBR,VBR GOP Structure : IPPPP (P Frame adjustment, without B Frame )
Audio Encoding	Encoding : MPEG-1 Layer 2,AAC Resolution : 24-bit Audio Gain : 0-255 Bit-rate: 64kbps, 128Kbps, 192kbps, 224kbps, 256kbps, 320kbps, 384kbps Sampling rate : 48KHz
ASI Input	Connector BNC: female, 75Ω Packet Length: 188 bytes Number of Input Ports : Dual separate ASI ports Signal Level : 200-800mVp-p Maximum bit-rate per port : ≤100Mbps
ASI Output	DVB-ASI 2 Separate ASI (Select from modulation Channels or MPTS channel) MPEG-2 TS over DVB-ASI (EN 50083-9) 75Ω, BNC, 188Bytes
IP Output	RJ45 Port 100/1000M GbE Port Simultaneous output with 4/8/12/16/20/24 SPTS and 1MPTS ,UDP/RTP Filter Null Packet Total Bitrate 1-200Mbps, (Should be More than Encoding bitrate) MPEG-2 TS over UDP/RTP, unicast, and multicast streaming Configurable packet size: (2-7)x188Bytes
Multiplexing Spe.	Maximum PID Remapping 180 input per channel PID remapping by automatically or manually Accurate PCR adjusting PSI/SI SDI/PMT/TOT/PAT/BAT/CAT/TDT/NIT Insert
Gerneral Option	Interface: 1*RJ-45,100/1000M Base-T network interface Local operation: keyboard on front panel, LCD display Remote control: web-based management/NMS
Physical and Power	Voltage: 100 to 120/200 to 240V AC ±10%; 50/60Hz Consumption: 60W Operating temperature: 0 ~ 45℃ Storage temperature: -20 ~ 80℃ Relative humidity: 10%~90%(non-condensing) Dimensions: 482mm(W)×380(D)mm×45mm(H)(19inch,1RU) Weight: 6 KGS

Application & Diagram

Exhibition

Joy Yan (Marketing sales)

Mail: sales008@digicast.cn

Skype:joyyan99

Wechat/Whatapp/Mobile:+86 13336117509

Web site:www.digicast.cn

FAQ

Payment terms: 100% in advance, T/T, Western Union,Paypal,Alibaba Trade Assurance all supported

Lead time: Around 3~15 days after payment received. Confirm with sales engineer with product model number.

Delivery Method : Door to door by international express,UPS/DHL/FEDEX/TNT/EMS,etc.

After sale service : DIGICAST has professional technical service team and customer service team, free to contact us for any questions involved.

Warranty : DIGICAST offers 5 years warranty service,welcome to send your advice and feedbacks on the products to help us improve the service.

OME service: Available according to product quantity,kindly contact sales engineer with product model number for details.
