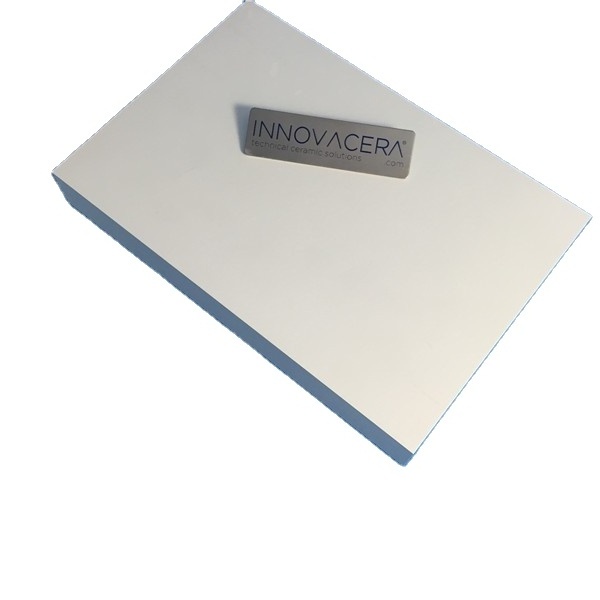

High Temperature Industry Ceramic 99BN Boron Nitride Plate Block

High Temperature Industry Ceramic 99BN Boron Nitride Plate Block

FOB Reference Price: Get Latest Price

≥1 Pieces

US $10

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: INNOVACERA

Density:: 2.2-2.3

Color:: White

Water absorption:: 0

Hardness:: moh's=2

Flexural strength:: 100

Compressive strength:: 287

Thermal Conductivity:: 35

Thermal Shock Resistance:: -

Maximum use temperature:: 2200

Volume resistivity:: 10^8~10^13

Quick Details

Material:: Boron Nitride Ceramic

Place of Origin:: Fujian, China

Model Number:: Boron Nitride Brick

Brand Name:: INNOVACERA

Density:: 2.2-2.3

Color:: White

Water absorption:: 0

Hardness:: moh's=2

Flexural strength:: 100

Compressive strength:: 287

Thermal Conductivity:: 35

Thermal Shock Resistance:: -

Maximum use temperature:: 2200

Volume resistivity:: 10^8~10^13

Boron nitride can be long-term used at 1800 degrees under vacuum atmosphere. With gas protection, Boron Nitride can be used at 2100°. Boron Nitride is with high thermal shock resistance, no cracks under extreme cold & high temperature. If you take out Boron Nitride from 1000 degree furnace and colding it within short minutes. It still won't break even repeat this test with 100 times.

Material Properties：
* High thermal conductivity
* Excellent thermal shock resistance
* Low thermal expansion
* Exceptional heat resistance
* Good Chemical Inertness
* High electrical resistance
* Low dielectric constant and loss tangent
* High volume resistivity
* Excellent machinability

Grades 5 grades of boron nitrides are involved in Boron Nitride product series.
* BN99 ● CABN ● ALBN ● ZRBN ● ZABN ● SB

Boron Nitride Properties:
Thermal Conductivity			(40-50)W/m·k
Thermal expansivity			(6.5-7.5)*10-6 °C
Resistivity			>1012 Ω·m
Puncture voltage			(2.5-4.0)*106 /kv·m
Dielectric constant			3.8-4.3
Bending strength			>35mpa
Compression strength			>200mpa
Density			1.9—2.2 g/cm3
Working Temperature	Oxidizing Atmosphere	850°C
		Vacuum and inertia	2000°C

Applications

1. Electronic parts - heat sinks, substrates, coil forms, prototypes
2. Vacuum melting crucibles
3. CVD crucibles
4. Microcircuit packaging
5. Sputtering targets
6. High precision sealing, brazing, and metallizing fixtures
7. Microwave tubes
8. Horizontal caster break rings
9. Low friction seals
10. Plasma arc insulators
11. High temperature furnace fixtures and supports

Boron Nitride Properties

* Pyrolytic Boron Nitride: 99.99% Boron Nitride*
* UHB: >99.7% Boron Nitride
* HB: >99% Boron Nitride
* BC: >97.5% Boron Nitride
* BAN: Boron Nitride + Aluminum Nitride
* BMZ: Boron Nitride + Zirconium Oxide
* BMA: Boron Nitride + Zirconium Oxide + Aluminum Oxide
* BSC: Boron Nitride + Silicon Carbide
* BMS: Boron Nitride +Silicon Oxide+Aluminum Oxide
