Quick Details
-
Brand Name:
-
zhongxiang
-
Model Number:
-
LSY178
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
Customized Size
-
Certification:
-
ISO9001
-
Name:
-
Portable used stainless steel screw grain auger conveyor
-
Keyword:
-
used stainless steel screw auger conveyer
-
Warranty:
-
1 Year
-
Application:
-
fertilizer, cement, coal, grain, coal
-
Diameter:
-
100-1250mm
-
Feature:
-
Simple Operation
-
instalation:
-
Engineer's guide
-
Length:
-
2-15M
-
Height:
-
2-10M
-
Color:
-
as you required
Quick Details
-
Power:
-
2.2kW - 22kW
-
Load Capacity:
-
Strong
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
zhongxiang
-
Model Number:
-
LSY178
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
Customized Size
-
Certification:
-
ISO9001
-
Name:
-
Portable used stainless steel screw grain auger conveyor
-
Keyword:
-
used stainless steel screw auger conveyer
-
Warranty:
-
1 Year
-
Application:
-
fertilizer, cement, coal, grain, coal
-
Diameter:
-
100-1250mm
-
Feature:
-
Simple Operation
-
instalation:
-
Engineer's guide
-
Length:
-
2-15M
-
Height:
-
2-10M
-
Color:
-
as you required

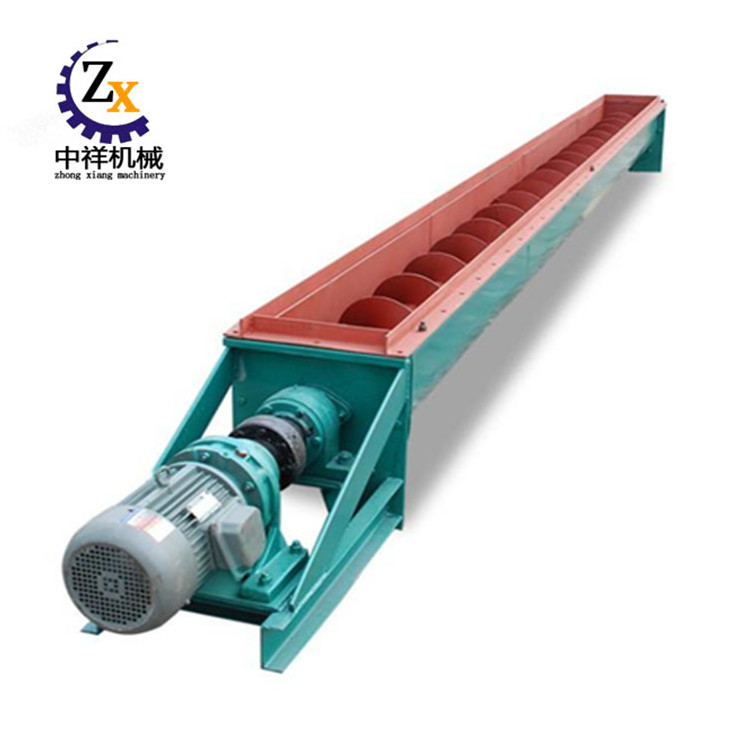

Portable used stainless steel screw grain auger conveyor
Portable used stainless steel screw grain auger conveyor introduction
As a custom-made type of screw conveyor, screw conveyor is made of carbon steel material. Its surface is fine processed and powder coated. ES screw conveyor is consist of a tubular tank which has at least one discharging hole and one feeding hole; the flanges on both ends of tubular tank; the screw blades welded on the central tube; joint bushings on both ends of central tube; two end bearings (one of them is connected with driver) which contain self-regulation enclosed unit; hanging bearing, whose number is depend on the overall length of screw conveyor. Besides, to satisfy users’ demand, CAO tubular screw conveyor is equipped with motor and gear box. ES screw conveyor is medium loading type machinery.
Portable used stainless steel screw grain auger conveyor application
Loose materials such as powder, granular and small piece material , which includes: clay powder, pulverized coal, cement, sand, grain, small piece of coal , cobble, and cast iron filings, etc.
It is widely used for the loose cement transportation from cement warehouse to mixer or from cement warehouse to mpounding machine in concrete mixing plant.
Kinds of screw conveyor:
Structure diagram:
Portable used stainless steel screw grain auger conveyor application
Portable used stainless steel screw grain auger conveyor blade
:
Portable used stainless steel screw grain auger conveyor parameter
| Model | LSY165 | LSY219 | LSY273 | LSY325 |
| Metric Diameter of Screw (mm) | 165 | 219 | 273 | 325 |
| Length of Screw Conveyor (m) | 2.5-6 | 4.5-12 | 6-9 | 6-9 |
| Rotary Speed of Main Axle (r/min) | 100 | 209 | 209 | 174 |
| External Case Diameter (mm) | φ165 | φ219 | φ273 | φ325 |
| Working Angle (°) | ≤20 | ≤35 | ≤35 | ≤35 |
| Conveying Capacity (t/h) | 25 | 35 | 50 | 75 |
| Motor Model | Y100L-4 | Y132M-4 | Y160M-4 | Y180M-4 |
| Motor Power (kW) | 3-7.5 | 7.5-11 | 11-18.5 | 22 |
