Quick Details
-
Application:
-
Office Building
-
Design Style:
-
Industrial
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
GD
-
Model Number:
-
LP-13
-
Material:
-
Steel
-
Surface:
-
Plain Black
-
Usage:
-
Concorete Formwork
-
Feature:
-
Easily Assembled
-
MOQ:
-
1000pcs
-
Package:
-
Pallet Plywood
-
Process:
-
Stamping
-
Size:
-
6"-24"
-
Accessories:
-
Snap tie wedge, A bracket
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Other
-
Project Solution Capability:
-
graphic design, Others
-
Application:
-
Office Building
-
Design Style:
-
Industrial
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
GD
-
Model Number:
-
LP-13
-
Material:
-
Steel
-
Surface:
-
Plain Black
-
Usage:
-
Concorete Formwork
-
Feature:
-
Easily Assembled
-
MOQ:
-
1000pcs
-
Package:
-
Pallet Plywood
-
Process:
-
Stamping
-
Size:
-
6"-24"
-
Accessories:
-
Snap tie wedge, A bracket

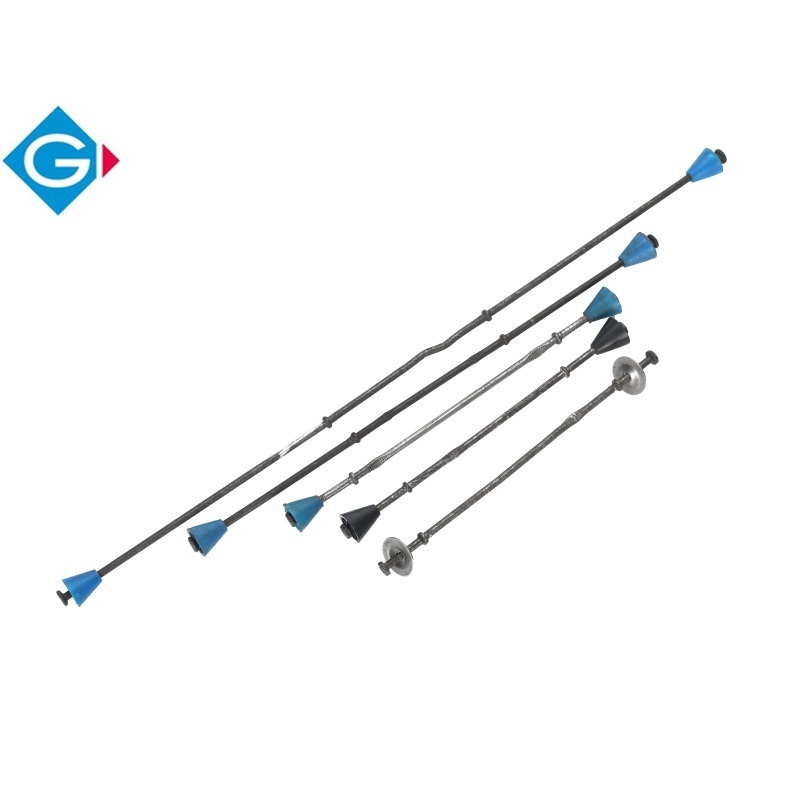

Plywood Formwork Snap Ties With Plastic Cone For Concrete Building Hardware
Snap Ties are manufactured with integral heads, both metal washer and plastic cone are available. Snap Tie is designed to easily tie concrete plywood forming systems. Each Tie incorporates an anti-turn device in order to properly break after use.
Snap tie and wedge
together used to hold the wood panel then to form a concrete wall for poured in place concrete, after the concrete is cured the snap tie ends can be snapped off and the wedges can be easily removed to strip the forms.
Plastic Cone Snap Ties are recommended, and customized sizes are available. Except the snap ties, we also supply
snap tie wedge and A & C brackets.
| Commodity | Photo | Size | Weight | Safe working load | Packing |
|
4-3/4'' short end snap tie |
|
6" | 0.093kg | 2250LBS |
100pcs/box
|
| 8" | 0.103kg | ||||
| 10" | 0.113kg | ||||
| 12" | 0.123kg | ||||
| 14" | 0.133kg | ||||
| 16" | 0.143kg | ||||
| 18" | 0.153kg | ||||
| 24" | 0.183kg |
| Commodity | Photo | Size | Weight | Safe working load | Packing |
|
8-1/4'' long end snap tie |
|
6" | 0.128kg | 2250LBS |
100pcs/box |
| 8" | 0.138kg | ||||
| 10" | 0.148kg | ||||
| 12" | 0.158kg | ||||
| 14" | 0.168kg | ||||
| 16" | 0.178kg | ||||
| 18" | 0.188kg | ||||
| 24" | 0.218kg |
| Commodity | Photo | Surface Treatment | Weight | Packing |
| Snap Tie Wedge |
|
Galvanized | 0.2115kg | 100pcs/box |
| Commodity | Photo | Surface Treatment | Weight | Packing |
| Jahn A Bracket |
|
Paint | 0.5780kg |
25pcs/box
|
| Jahn C Bracket | Paint | 0.4742kg |
OEM size and design is acceptable!
