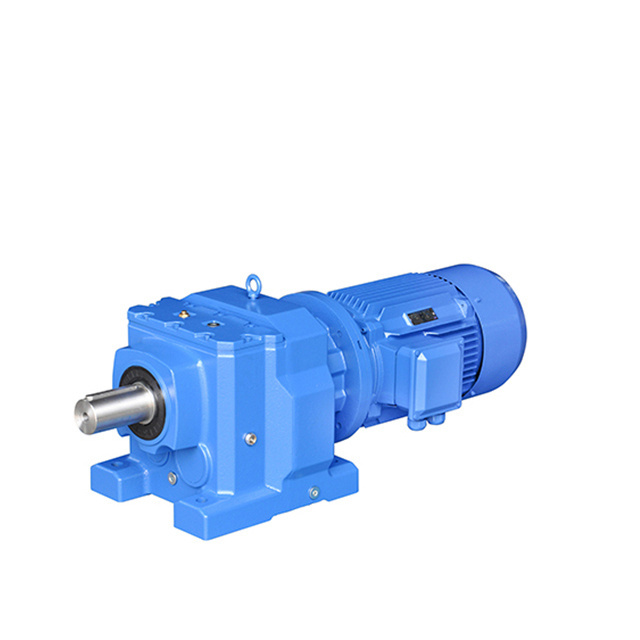

R57 helical inline reverse gearbox 40 1 gear motor

R57 helical inline reverse gearbox 40 1 gear motor

FOB Reference Price: Get Latest Price

≥9 Boxes

US $199

≥100 Boxes

US $190

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Output Speed:: 1200

Weight (KG):: 50

Place of Origin:: China

Gears:: Helical Gears Transmission Gear Box

Ratio:: 1.3~289.74

Application:: Power Transmission

Product name:: Gearbox

Color:: RAL5010(blue)

Mounting Position:: Horizontal (foot Mounted)

Packing:: Wooden Box

Customization:: Acceptable

Housing Material:: Iron Casting

Quick Details

Gearing Arrangement:: Hypoid

Output Torque:: 2300n.m

Input Speed:: 1200

Output Speed:: 1200

Weight (KG):: 50

Place of Origin:: China

Gears:: Helical Gears Transmission Gear Box

Ratio:: 1.3~289.74

Application:: Power Transmission

Product name:: Gearbox

Color:: RAL5010(blue)

Mounting Position:: Horizontal (foot Mounted)

Packing:: Wooden Box

Customization:: Acceptable

Housing Material:: Iron Casting

1. The structure scheme, appearance diagram and other attached diagrams in sample are examples,

there is no strict proportion requirement. If you need exact dimension of certain types, please contact

our sales dept.. (The unmarked dimension units are mm).

2. Gear unit has been tested before delivered, users should add lubrication oil before running.

3. We Ever-Power Group one of the biggest transmission suppliers in the world can only refer to the marked oil in the mannul. Actual oil filling level should be the same with

the mark on oil immersion lens.

4. Lubrication oil viscosity should be selected according to working conditions and ambient

temperature.

5. To prevent accidents, all the rotation parts should be added with protective covers according to

safety regulation of the nation and region.

6. The solid shaft input structure gear unit is not equipped with any motor.

7. Motors of Y series are supplied with protection grade of IP54 unless otherwise specified.

8. Unless otherwise specified, you will receive the terminal box at 0°.

Housing material	Cast iron/Ductile iron
Housing hardness	HBS190-240
Gear material	20CrMnTi alloy steel
Surface hardness of gears	HRC58°~62 °
Gear core hardness	HRC33~40
Input / Output shaft material	42CrMo alloy steel
Input / Output shaft hardness	HRC25~30
Machining precision of gears	accurate grinding, 6~5 Grade
Lubricating oil	GB L-CKC220-460, Shell Omala220-460
Heat treatment	tempering, cementiting, quenching, etc.
Efficiency	94%~96% (depends on the transmission stage)
Noise (MAX)	60~68dB
Temp. rise (MAX)	40°C
Temp. rise (Oil)(MAX)	50°C
Vibration	≤20µm
Backlash	≤20Arcmin
Brand of bearings	China top brand bearing, HRB/LYC/ZWZ/C&U. Or other brands requested, SKF, FAG, INA, NSK.
Brand of oil seal	NAK --- Taiwan or other brands requested

Q: Are you trading company or manufacturer ?
A: We Ever-Power Group one of the biggest transmission suppliers in the world are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock.

Q: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to accept trial order for quality testing.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.
If you have other question, freely to contact us,please.
