Quick Details
-
Max. Loading Capacity:
-
600ml
-
Weight (KG):
-
92 KG
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
TOB
-
Voltage:
-
AC 220V
-
Dimension(L*W*H):
-
400(W)*590(H)*580(D)
-
Power (kW):
-
1.35 kW
-
Applicable Industries:
-
Lithium Ion Battery
-
Core Components:
-
N/A
-
Maximum capacity:
-
300g * 2
-
Standard container:
-
300ml * 2
-
Maximum speed:
-
2000rpm
-
Drive mode:
-
750W motor
-
Vacuum flow:
-
165L/min
-
Vacuum pressure:
-
-98Kpa
-
Transmission mode:
-
Gear drive
Quick Details
-
Barrel Volume (L):
-
0.6
-
Max. Loading Volume (L):
-
0.6 L
-
Range of Spindle Speed(r.p.m):
-
0 - 2000 r.p.m
-
Max. Loading Capacity:
-
600ml
-
Weight (KG):
-
92 KG
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
TOB
-
Voltage:
-
AC 220V
-
Dimension(L*W*H):
-
400(W)*590(H)*580(D)
-
Power (kW):
-
1.35 kW
-
Applicable Industries:
-
Lithium Ion Battery
-
Core Components:
-
N/A
-
Maximum capacity:
-
300g * 2
-
Standard container:
-
300ml * 2
-
Maximum speed:
-
2000rpm
-
Drive mode:
-
750W motor
-
Vacuum flow:
-
165L/min
-
Vacuum pressure:
-
-98Kpa
-
Transmission mode:
-
Gear drive
Products Description

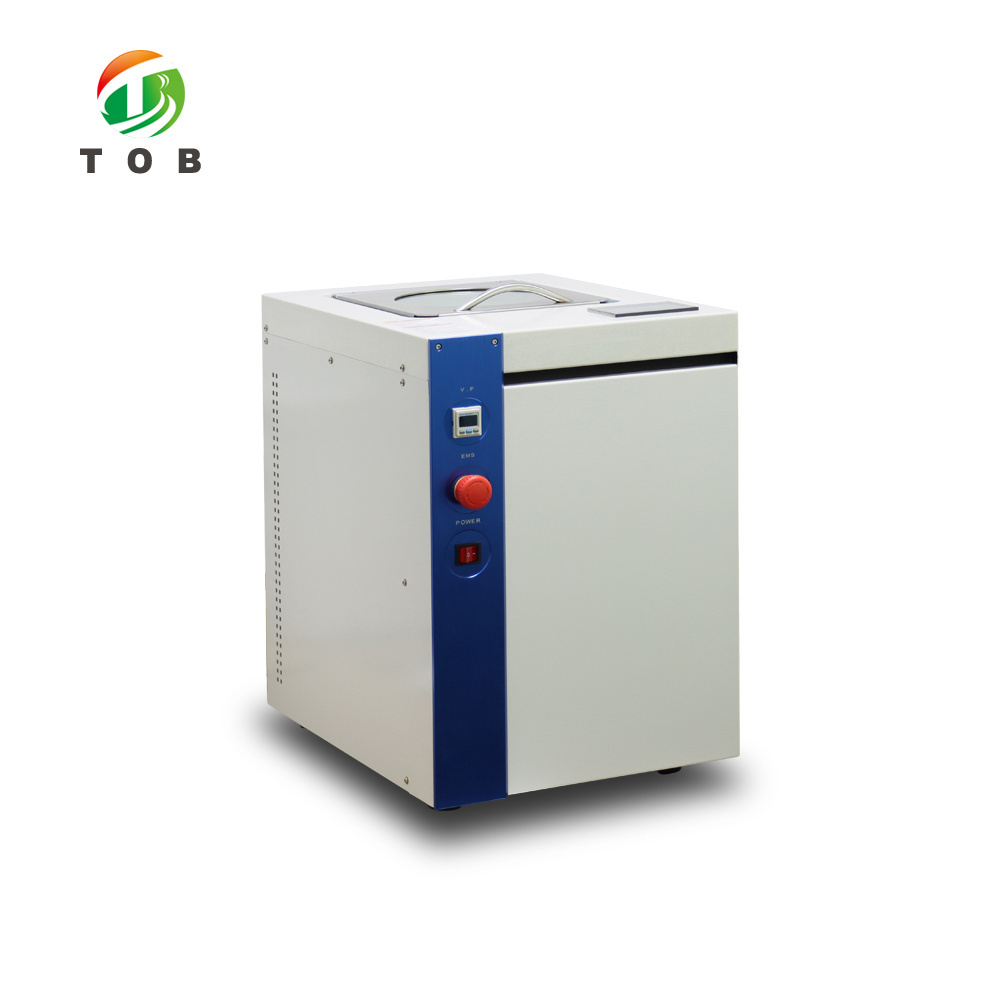

High Quality Low Speed Laboratory Planetary Vacuum Centrifuge Mixer
Adopting planetary vacuum mixing and de-bubbling, it is suitable for mixing all kinds of liquid or powder materials. Such as battery powder or slurry, carbon nanotubes, nanopowder, conductive ceramics, oxide powder and metal powder, etc., to ensure that the samples are mixed in a vacuum state to achieve better experimental results.
|
Standard container
|
300ml * 2, size ( Φ77 * H85mm), optional container 10ml, 30ml, 50ml, 100ml.
|
|
Maximum capacity
|
300g * 2
|
|
Working Principle
|
Planetary Gravity (Rotation / Rotation = 0.6 times fixed) Stirring / Defoaming
|
|
Rotation
|
stepless speed regulation (300~2000rpm); arbitrary input, accuracy 1rpm
|
|
Rotation
|
0.6 times of the rotational speed.
|
|
Maximum speed
|
2000rpm
|
|
Drive mode
|
750W motor
|
|
Vacuum flow
|
165L/min
|
|
Vacuum pressure
|
-98Kpa, accuracy 0.1Kpa, vacuum delay, vacuum arbitrary adjustment
|
|
Parameter storage capacity
|
6 groups
|
|
Balance adjustment
|
double-side counterweight balance adjustment
|
|
Setting time
|
(0~600s) / 3 sections (accuracy 1s, 200s/section)
|
|
Control system
|
double closed-loop PLC control, Chinese interface, touch screen operation.
|
|
Lubrication system
|
cup and sleeve splash-proof structure, passive lubrication, prevent bearing wear.
|
|
Main Alarm Function
|
Loss of Balance/Upper Cover Not Closed/Over Load
|
|
Main safety functions
|
automatic stop when error occurs/automatic locking of top cover during operation
|
|
Transmission mode
|
Gear drive
|
|
Power supply voltage
|
AC220V
|
|
Total power
|
1.35KW
|
|
Exterior dimensions
|
400(W)*590(H)*580(D) except protruding part.
|
|
Weight of the machine
|
92Kg
|
Main features:
* Intelligent window design, you can clearly observe the mixing part of the machine.
* Stronger wind power, rapid heat dissipation, high-speed mute.
* No contact without mixing blade, minimise pollution.
* High precision with low friction coefficient, durable, super quiet, high speed.
* Double-centre double-vessel mixing and defoaming device, more space.
* Touch screen man-machine control system, easy to operate, safe and practical.
* The centrifugal force of spinning and the rotation cause convection to homogenise the sample material.
* Using vacuum pressure can effectively eliminate sub-micron bubbles in the material.
* Intelligent window design, you can clearly observe the mixing part of the machine.
* Stronger wind power, rapid heat dissipation, high-speed mute.
* No contact without mixing blade, minimise pollution.
* High precision with low friction coefficient, durable, super quiet, high speed.
* Double-centre double-vessel mixing and defoaming device, more space.
* Touch screen man-machine control system, easy to operate, safe and practical.
* The centrifugal force of spinning and the rotation cause convection to homogenise the sample material.
* Using vacuum pressure can effectively eliminate sub-micron bubbles in the material.
