Quick Details
-
Connector:
-
SMA/N/BNC Customizable
-
Gain:
-
28dBi
-
Frequency Range:
-
1575.42MHz
-
VSWR:
-
≤1.5
-
Polarization:
-
Vertical
-
Cable Length:
-
3M(Customizable)
-
Impedance:
-
50ohm
-
Radiation:
-
Omin
-
Color:
-
Black White
Quick Details
-
Brand Name:
-
bfwireless
-
Model Number:
-
BFGNSSGWX128/96SL3000J
-
Place of Origin:
-
Guangdong, China
-
Connector:
-
SMA/N/BNC Customizable
-
Gain:
-
28dBi
-
Frequency Range:
-
1575.42MHz
-
VSWR:
-
≤1.5
-
Polarization:
-
Vertical
-
Cable Length:
-
3M(Customizable)
-
Impedance:
-
50ohm
-
Radiation:
-
Omin
-
Color:
-
Black White

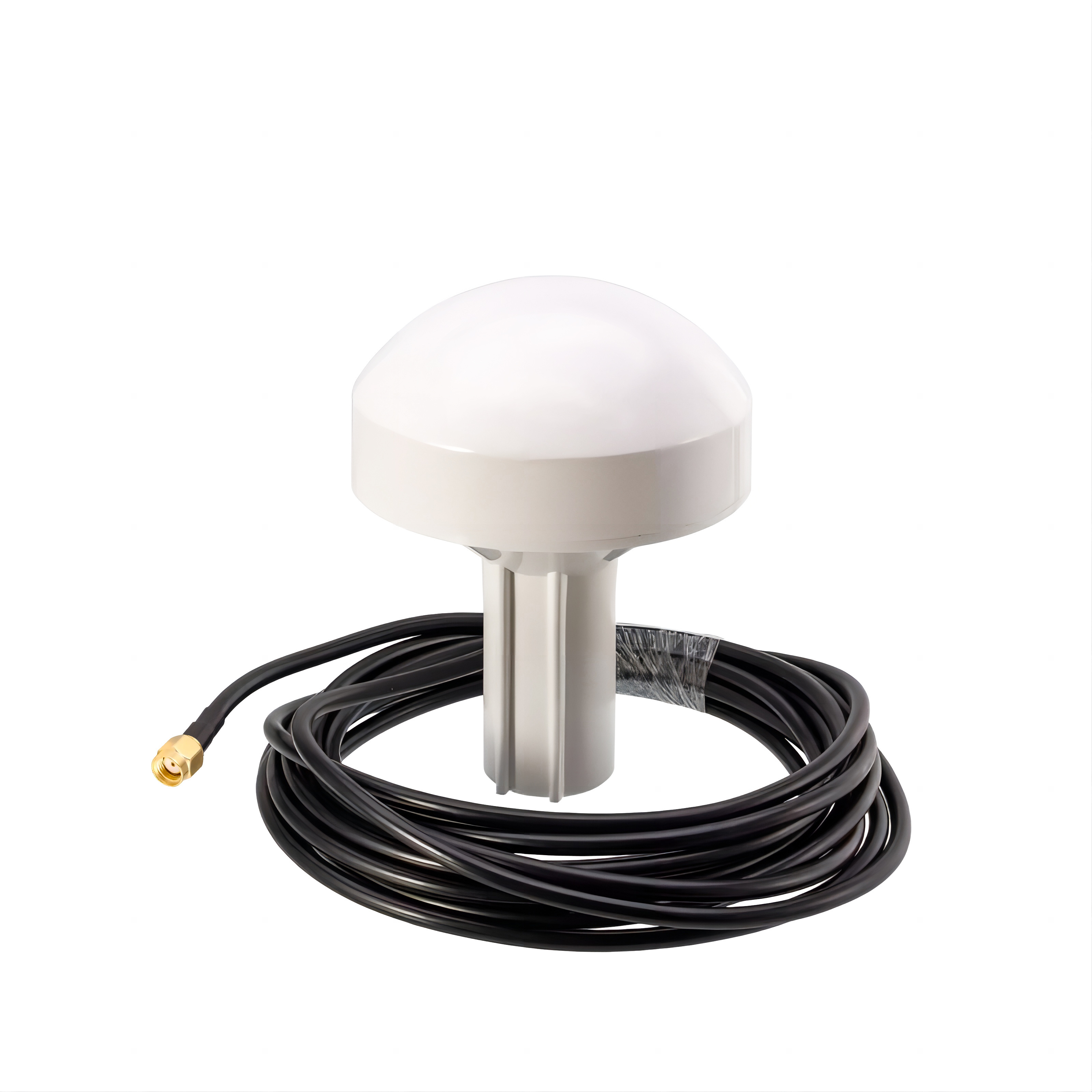

Product Description
Specification
|
Center Frequency
|
1575.42±1MHz
|
|
Band Width
|
CF±5MHZ
|
|
Polarization
|
RHCP
|
|
Gain
|
28dBi
|
|
V.S.W.R
|
<1.5
|
|
Impendance
|
50Ω
|
|
Type
|
GPS/GNSS Antenna
|
|
Noise Figure
|
<1.3
|
|
Filter Insertion Loss
|
<3dB
|
|
Ex-band Attenuation
|
12dB@CF+50MHz/16dB@CF-50MHz
|
|
Supply Voltage
|
3~5V DC
|
|
Current Consumption
|
18~35mA
|
|
V.S.W.R
|
<2.0
|
|
Cable
|
RG174 or others （Customization）
|
|
Connector
|
SMA or N others (Customization)
|
|
Radome Material
|
ABS
|
|
Mounting Method
|
Screw
|
|
Operating Temperature
|
-40℃~+85℃
|
|
Relative Humidity
|
Up to 95%
|
|
Ingress Protection
|
IP67
|
|
Vibration
|
10 to 55Hz with 1.5mm amplitude 2hours
|
|
Environmentally Friendly
|
ROHS Compliant
|
