Quick Details
-
Model Number:
-
TH-1000 Test Chamber
-
keywords:
-
Compact Climate Temperature Humidity Chamber
-
Workroom dimension(mm):
-
1000*1000*1000
-
Temperature range:
-
-70℃~+150 ℃
-
Humidity range:
-
20% ~ 98% RH
-
Controller:
-
Programmable color touch-screen type TEMI880
-
Cooling system:
-
French TECUMSEH compressor
-
Temperature fluctuations:
-
± 0.5 ℃
-
Temperature deviation:
-
± 2.0 ℃
-
Warranty:
-
3 years
-
Delivery time:
-
20 days
Quick Details
-
Power:
-
Electronic
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
LIB industry
-
Model Number:
-
TH-1000 Test Chamber
-
keywords:
-
Compact Climate Temperature Humidity Chamber
-
Workroom dimension(mm):
-
1000*1000*1000
-
Temperature range:
-
-70℃~+150 ℃
-
Humidity range:
-
20% ~ 98% RH
-
Controller:
-
Programmable color touch-screen type TEMI880
-
Cooling system:
-
French TECUMSEH compressor
-
Temperature fluctuations:
-
± 0.5 ℃
-
Temperature deviation:
-
± 2.0 ℃
-
Warranty:
-
3 years
-
Delivery time:
-
20 days

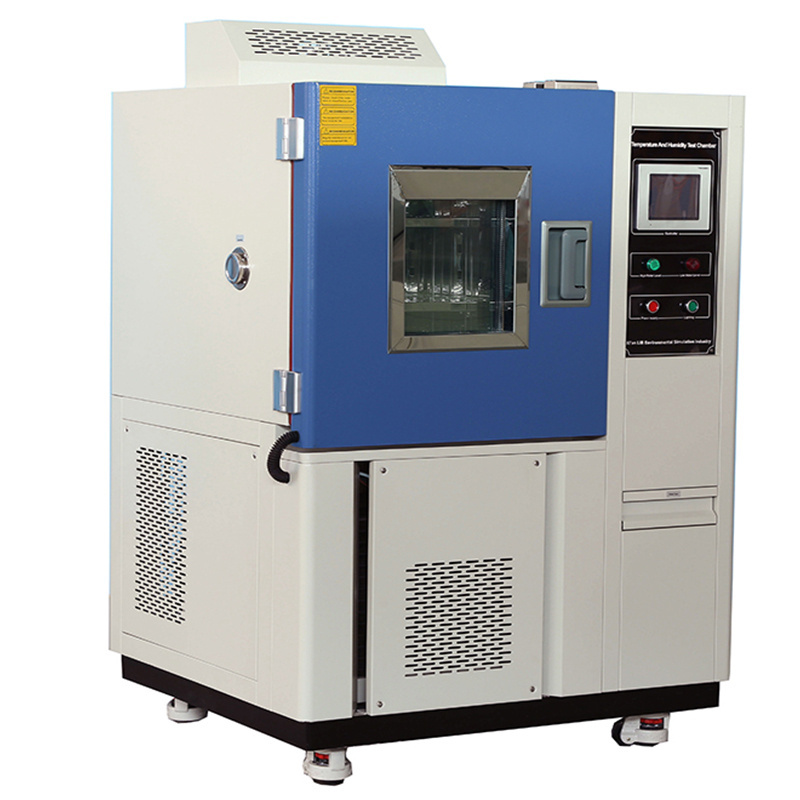

Environmentally R508b Refrigerant Compact Climate Temperature Humidity Chamber
Advantage of Environmentally R508b Refrigerant Compact Climate Temperature Humidity Chamber
●One machine, multiple functions
●Long time 85 °C / 85 % RH test
●Cold resistance test,
●Thermal cycle test,
●High and low temperature test,
●Storage condition,
●Calibration function.
● Wide temperature ranges and volume selection.
● Programmable touch screen controller.
|
Product Name
|
R508b Refrigerant Compact Climate Temperature Humidity Chamber
|
|
|
|
Model
|
TH-100
|
TH-225
|
|
|
Internal dimension (mm)
|
400*500*500
|
500*600*750
|
|
|
Overall dimension (mm)
|
860*1050*1620
|
960*1150*1860
|
|
|
Temperature range
|
-20℃ ~+150 ℃
|
|
|
|
Low type
|
Ⅰ: -40℃ Ⅱ:-70℃
|
|
|
|
Humidity range
|
20% ~ 98% RH
|
|
|
|
Temperature fluctuations
|
± 0.5 ℃
|
|
|
|
Temperature deviation
|
± 2.0 ℃
|
|
|
|
Humidity deviation
|
± 2.5% RH
|
|
|
|
Heating rate
|
3 ℃ / min
|
|
|
|
Cooling rate
|
1 ℃ / min
|
|
|
|
Temperature Sensor
|
PTR Platinum Resistance PT100Ω/MV A-class
|
|
|
|
Temperature Resolution
|
± 0.001 ℃
|
|
|
|
Humidity sensor
|
Dry and wet bulb sensor
|
|
|
|
Power Supply
|
AC220V 50HZ
|
|
|
|
Environmental conditional
|
5℃~+40 ℃ ≤85% RH
|
|
|
Test Area
● 2pcs 2.5mm SUS304 stainless steel shelf;
remove;
Control Panel
● 99 steps perprogram
● RS232 for PC link
● More option function:Multi-language display, PC link,USB, App
Cable Hole
● Internal diameters 50mm, 125mm or custom; Rubber sealing;
● Stainless steel cover;● Supply power to workroom's specimen, to better finish testing Beautiful
Large Viewing Window
● Size is 250*300mm W*H.
● Observe the sample changes more clearly
