Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Speedy Laser
-
Marking Head Brand:
-
Galvo scanner head
-
Weight (KG):
-
52 KG
-
Core Components:
-
Laser source
-
Product name:
-
mobile phone shell lighter printing machine with EZCAD software
-
Laser source:
-
Raycus
-
Laser Power:
-
20W/30W/50W
-
Applicable Material:
-
Metal Plastic
-
Keywords:
-
laser engraving machine portable
-
Laser wavelength:
-
1064nm
-
Marking Speed:
-
0-7000mm/s
-
Scanner head:
-
High speed Galvo scanner
-
Marking Depth:
-
0.01-1mm
-
Software:
-
Original JCZ EZCAD
Quick Details
-
Working Accuracy:
-
0.02mm
-
Graphic Format Supported:
-
AI, PLT, DXF
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Speedy Laser
-
Marking Head Brand:
-
Galvo scanner head
-
Weight (KG):
-
52 KG
-
Core Components:
-
Laser source
-
Product name:
-
mobile phone shell lighter printing machine with EZCAD software
-
Laser source:
-
Raycus
-
Laser Power:
-
20W/30W/50W
-
Applicable Material:
-
Metal Plastic
-
Keywords:
-
laser engraving machine portable
-
Laser wavelength:
-
1064nm
-
Marking Speed:
-
0-7000mm/s
-
Scanner head:
-
High speed Galvo scanner
-
Marking Depth:
-
0.01-1mm
-
Software:
-
Original JCZ EZCAD

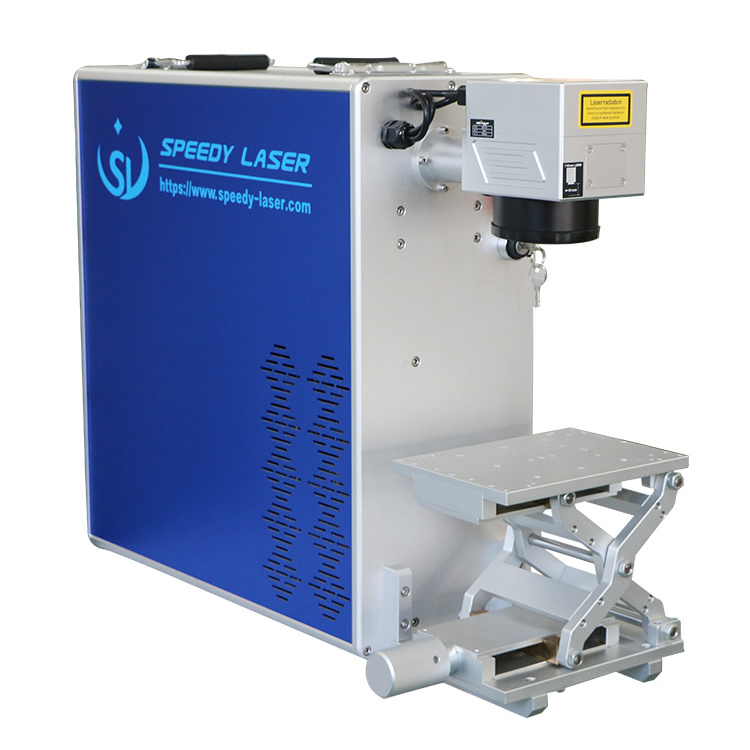

20Watt 30watt 50watt laser engraving machine portable mobile phone shell lighter printing machine with EZCAD software
Fiber laser marking machine can be used for marking logo, serial number, bar code and other beautiful patterns on any metallic materials such as stainless steel, titanium, brass, gold, silver, aluminum and lots of engineering plastic products such as mobile cover & charger, consume electronics housing and etc.
|
Item Name |
Technical Parameter |
||
|
Model |
SL-FP 20W |
SL-FP 30W |
SL-FP 50W |
|
Laser power |
20W |
30W |
50W |
|
Laser wavelength |
1064nm |
||
|
Laser type |
JPT/ Raycus /Germany IPG fiber laser |
||
|
Beam diameter |
7mm±1 |
||
|
Repeat frequency |
30KHz-60KHz |
50KHz-100KHz |
|
|
Pulse width |
131ns |
135ns |
|
|
Marking depth |
0.01-0.5mm |
||
|
Marking area |
110×110mm |
||
|
Rated power consumption |
500W |
800W |
1200W |
|
Operating voltage |
110V- 240V/50-60 Hz/15A |
||
|
Cooling |
Air Cooling |
||
|
Packing size |
80*34*77 cm (L*W*H) |
||
|
Gross weight |
52 KG |
||
|
Package |
Standard export wooden case |
||
