Quick Details
-
Production Capacity:
-
96%
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
xinhai
-
Dimension(L*W*H):
-
2500X2500mm
-
impeller:
-
double
-
Keywords:
-
leaching tank
-
Capacity:
-
50-2000t/d
-
Usage:
-
Mining
-
Material:
-
Stainless Steel
-
Installation:
-
Engineer Guide
-
Function:
-
Gold Extraction
-
Color:
-
Customer's Request
-
Effective Volume:
-
7.07-480m3
Quick Details
-
Weight (KG):
-
1740
-
Marketing Type:
-
Hot Product
-
Application:
-
mining, Ore
-
Production Capacity:
-
96%
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
xinhai
-
Dimension(L*W*H):
-
2500X2500mm
-
impeller:
-
double
-
Keywords:
-
leaching tank
-
Capacity:
-
50-2000t/d
-
Usage:
-
Mining
-
Material:
-
Stainless Steel
-
Installation:
-
Engineer Guide
-
Function:
-
Gold Extraction
-
Color:
-
Customer's Request
-
Effective Volume:
-
7.07-480m3

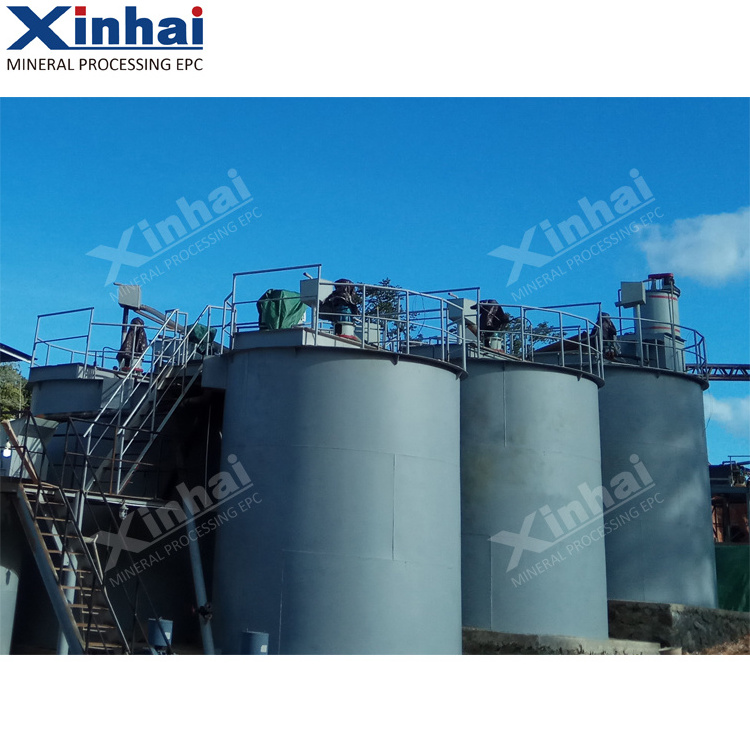

Cyanide Leaching Tank / Gold Leaching Equipment
- Cyanide Leaching Tank — Product Description
- [Introduction]:Leaching agitaion tank is a leaching equipment for cyanide leaching by referring the USA technical design.
- [Volume]:6-395m3
- [Improvement]:Leaching agitation tank for gold extraction with double impeller, uniform mixing, low energy consumption; the impeller coated by rubber, long service life; multi points to give gas, uniform inflation.
Cyanide Leaching Tank — Advantage
Smooth movement of ore flow, even pulp mixture, less power consumption;
The air enters the tank through the transmission hollow shaft, and the air disperse evenly with the blade agitation;
Compact structure, easy to maintain;
Hollow shaft is ventilated to the bottom end, and the air enters into the tank with uniform distribution and small bubbles;
Adopt two new impellers, the agitation tank is featured with large impeller diameter, low rotation speed, small power consumption, which can reduce the wear of carbon;
Moderate agitation intensity, and uniformly distribution in pulp concentration and fineness, which can improve the leaching rate of cyanidation and the adsorption rate of carbon.
The impeller of this leaching tank is lined with wear-resistant rubber, low rotation speed and long service life.
Cyanide Leaching Tank — Application
Dual impeller Gold Leaching Tanks is applicable to carbon process and rubber chemical process.
Cyanide Leaching Tank — Working principle
With dual impellers rotating and agitating, ore pulps move downward and then diffuse along damping plate. Air is fed in tank from the lower end of shaft, and blended with ore pulps to form uniform suspending mixed liquid.
In the gold cyaniding process, leaching agitation tank is applied to leach and carbon-absorb ore pulps whose fineness is -200 meshes and whose density is less than 45%. Under similar circumstance, it is also applied to agitation and leaching in metallurgy, chemical and light industry.
Cyanide Leaching Tank — Technical parameters
| Model |
Tank Spec.
(DX H) (mm) |
Effective
Volume (m3) |
Rotating Speed of Impeller (r/min) | Diameter of Impeller (mm) |
Motor
Model |
Motor
Power (kW) |
Reducer Model |
Tank
Weight (kg) |
Total
Weight (kg) |
| SJ2.0X2.5 | 2000X2500 | 7.07 | 52 | 909 | Y100L1-4 | 2.2 | XLD2.2-4-29 | 1609 | 2144 |
| SJ2.5X2.5 | 2500X2500 | 10.8 | 43 | 935 | Y112M-4 | 4 | XLD4-5-35 | 2159 | 2729 |
| SJ2.5X3.15 | 2500X3150 | 13.92 | 52 | 935 | Y100L1-4 | 2.2 | XLD2.2-4-29 | 2398 | 3095 |
| SJ3.0X3.0 | 3000X3000 | 19 | 43 | 1130 | Y112M-4 | 4 | XLD4-5-35 | 3480 | 4583 |
| SJ3X3.15 | 3000X3150 | 20 | 3480 | 4160.6 | |||||
| SJ3X3.5 | 3000X3500 | 22.97 | 3211 | 4334.6 | |||||
| SJ3.15X3.55 | 3150X3550 | 25.73 | 1260 | 3433.5 | 4322.8 | ||||
| SJ3.5X3.5 | 3500X3500 | 31.3 | 52 | 1310 | Y132S-4 | 5.5 | XLD5.5-5-29 | 3480 | 5025 |
| SJ3.5X4 | 3500X4000 | 35.6 | 4230 | 5429 | |||||
| SJ3.55X4.0 | 3550X4000 | 36.8 | 43 | 4 | XLD4-5-35 | 4260 | 5025 | ||
| SJ3.7X4.2 | 3700X4200 | 42 | 42 | Y112M-4 | XLD4-5-43 | 5266 | 6153 | ||
| SJ4.0X4.5 | 4000 X4500 | 52.78 | 35 | 1750 | Y132M-4 | 7.5 | XLD7.5-7-43 | 6397 | 7569 |
| SJ4.0X6 | 4000 X6000 | 71 | 33 | 1750 | Y160M-4 | 11 | GRF137-Y11-4P-44.65-M4 | 7681 | 9200 |
| SJ4.5X5.0 | 4500 X5000 | 74.75 | 35 | 1750 | Y132M-4 | 7.5 | XLD7.5-7-43 | 8614 | 10864 |
| SJ5.0X5.6 | 5000X5600 | 104.5 | 31 | 2046 | Y160M-4 | 11 | XLD11-8-47 | 8740 | 14291 |
| SJ5.5X6.0 | 5500X6000 | 135.42 | 2100 | 12467 | 18745 | ||||
| SJ6.5X7.0 | 6500X7000 | 215 | 21 | 2400 | Y180L-4 | 22 | GRF147-Y22-4P-70.87 | 17890 | 25978 |
| SJ7.0X7.5 | 7000 X7500 | 269 | 2400 | Y200L2-6 | 22 | XLD22-10-47 | 20505 | 29030 | |
| SJ7.5X8.0 | 7500 X8000 | 331 | 23 | 2900 | Y200L2-6 | 22 | BLD7-43-22L | 22552 | 32796 |
| SJ8.0X8.5 | 8000X8500 | 402 | 18.5 | 3300 | Y250M-8 | 30 | TPS315-3F | 30559.5 | 42467.3 |
| SJ8.5X9.0 | 8500X9000 | 480 | 18.5 | 3300 | Y250M-8 | 30 | TPS315-3F | 34130 | 46623 |
Laboratory: Strive for the best recovery for you with rigorous test, accurate data and detailed report
Institute: Certified grade A of mineral design institute, high quality drawing, simulate mineral plant with CAD and 3D, guarantee the construction period
F actory : We have three production factories, hundreds of suppliers . Some products reach the international leading level with own characteristic .
Shandong Xinhai Mining Technology & Equipment Inc has been committed to providing high quality and efficient mineral processing equipment for customers.In the past 20 years, our clients have spread all over the world .
