Quick Details
-
Application:
-
Automatic System
-
Length:
-
Customizable Length
-
Model:
-
FSL30E50300
Quick Details
-
Model Number:
-
SBR12UU
-
Material:
-
Aluminum
-
Type:
-
Linear Motion Rail
-
Application:
-
Automatic System
-
Length:
-
Customizable Length
-
Model:
-
FSL30E50300

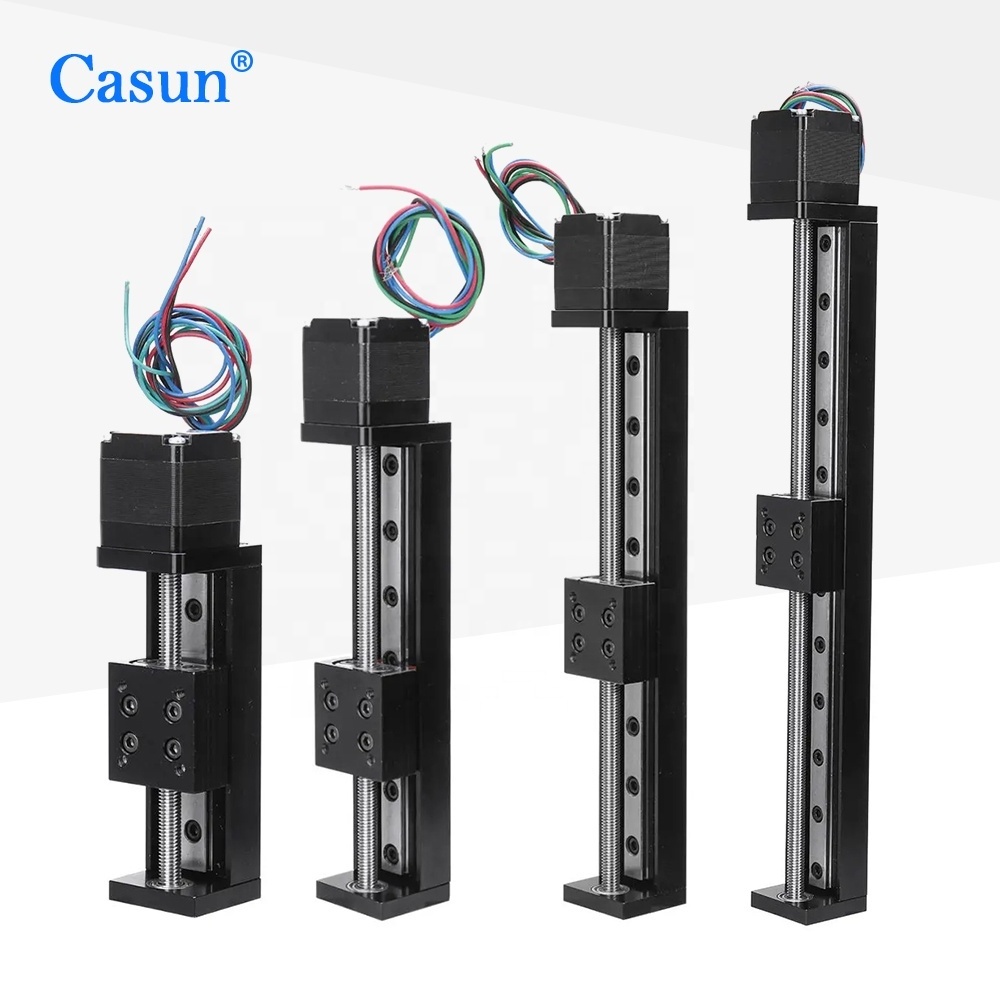

Mini Linear Guide Slide Rail CNC Small Stage Actuator Screw Lead Motion Table System Nema Robot Part Motorzied Stepper Motor
| Specifications | Screw Model | Tr8-2 | Tr8-4 | Tr8-6 | Tr8-8 | Tr8-12 |
| Slider Quantity | 1 Piece[single rail] | |||||
| Effective stroke[mm] | 0-300 | |||||
| Movement Life[Hours] | 10000 | |||||
|
Performance Parameter |
Position Accuracy[mm] | 0.05 | ||||
| Max Horizontal Loadings[kg] | 3 | |||||
| Max Horizontal Full Speed[mm/s] | 70 | 130 | 160 | 180 | 250 | |
| Max Vertical Loading[kg] | 1 | |||||
| Max Vertical Full Speed[mm/s] | 50 | 100 | 120 | 150 | 200 | |
| Without Loading Max Speed[mm/s] | 80 | 150 | 180 | 200 | 300 | |
| Nosie[db] | 65[within 1m] | |||||
