Quick Details
-
Brand Name:
-
JUBAO Intelligent
-
Voltage:
-
220V/380V or client's required
-
Dimension(L*W*H):
-
customized
-
Weight:
-
100 KG
-
Product name:
-
food grade sieving machine
-
Keyword:
-
vibratory sifter sieve machine
-
Motor:
-
Vertical Vibrating Motor
-
Color:
-
Customers' Request
-
Layer(s):
-
1-5 Layers
-
Material:
-
Carbon Steel/Stainless Steel 304/316L
-
Advantage:
-
Long Working Life
-
Feature:
-
High Screening Efficiency
-
Surface treatment:
-
Mirror Polishing/Sandblasting/drawing
-
Cleaning system:
-
Bouncing Ball/Ultrasonic system/scraper
Quick Details
-
Type:
-
Circular
-
Marketing Type:
-
New Product 2024
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
JUBAO Intelligent
-
Voltage:
-
220V/380V or client's required
-
Dimension(L*W*H):
-
customized
-
Weight:
-
100 KG
-
Product name:
-
food grade sieving machine
-
Keyword:
-
vibratory sifter sieve machine
-
Motor:
-
Vertical Vibrating Motor
-
Color:
-
Customers' Request
-
Layer(s):
-
1-5 Layers
-
Material:
-
Carbon Steel/Stainless Steel 304/316L
-
Advantage:
-
Long Working Life
-
Feature:
-
High Screening Efficiency
-
Surface treatment:
-
Mirror Polishing/Sandblasting/drawing
-
Cleaning system:
-
Bouncing Ball/Ultrasonic system/scraper
Product Overview

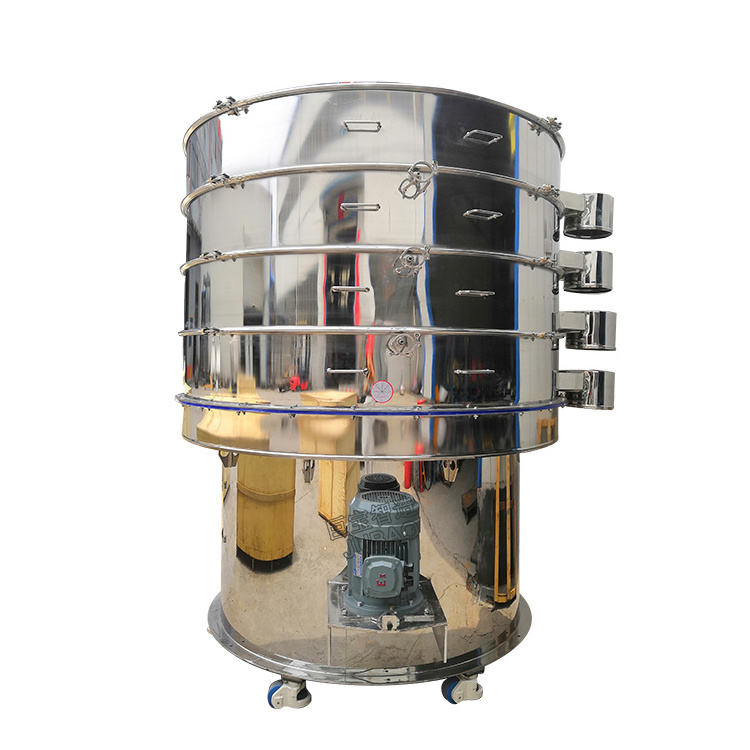

Stainless steel circular vibrating screen sifter
flour sieving machine for beans
Vibrating sieve machine
is a kind of high-precision sieving equipment, widely used in food, chemical, metallurgy, mining, building materials and other industries. It is characterized by its screen opening of 0.2-10mm, the feeding capacity of 1-2 tons/hour, the screen angle of 15-30 degrees, and the noise level of less than 75dB. It is made of 304/316L stainless steel or carbon steel material which is abrasion-resistant and corrosion-resistant, making it suitable for long-term use in harsh environments. This vibrating screen sieve and vibrating filter sieve has the advantages of high screening accuracy, good sealing performance, simple structure and convenient maintenance. The screen frame of the screening machine is specially designed, which can be disassembled and replaced to facilitate the cleaning of the screen surface.
Features of
Vibrating sieve machine
1. High screening accuracy, high efficiency, any powder, granules, mucous can be applied.
2. Parts have no dead corners, easy to clean and disinfect effectively.
3. New mesh structure, effective screen life, only 3-5 minutes to change the net.
4. It can be used with single layer and multi-layer screen.
5. Small size does not take up space, easy to move, outlet can be adjusted 360 degrees.
6. All parts in contact with the material are made of stainless steel.
7. Automatic discharge of materials, continuous operation.
8. Fully sealed dust does not fly, liquid does not leak, mesh is not blocked, screening up to 500 mesh, filtration up to 5μm.
Jubao B series
Vibrating sieve machine
suitable for screening and filtering of particles,high precision powder,mucus and so on .
We are committed to providing vibrating screen machines with the highest possible quality and reliability.
Tip:we accept any reasonable customization.
For example, color, size, material, layers,net cleaning device or whether to add observation holes and so on
|
Model No.
|
Screen Diameter（mm）
|
Power（kw）
|
Sizing Accuracy（%）
|
Capacity （kg/hour）
|
||||
|
B-600
|
560
|
0.25~0.55
|
85~95
|
200
|
||||
|
B-800
|
760
|
0.55~0.75
|
85~95
|
500
|
||||
|
B-1000
|
950
|
0.75~1.1
|
85~95
|
800
|
||||
|
B-1200
|
1150
|
1.1~1.75
|
85~95
|
1200
|
||||
|
B-1500
|
1450
|
1.5
|
85~95
|
1600
|
||||
|
B-1800
|
1750
|
3~4.5
|
85~95
|
2000
|
||||
|
More models can be customized
|
|
|
|
|
||||
The picture below is a production line we once designed for a customer: * American company grinding and screening chemical powder. *
Contact us
today to design your drawings.
Detail display
Application
The above are some application of our company's customers.We can provide material sieving equipment which can be customized for different industries, and can help you design production lines or provide intelligent powder solutions. If you have related needs, please
contact us
, we will send professional engineers to communicate with you.
