Quick Details
-
ANSI MORTISE LOCK:
-
SECTIONAL TYPE
-
Certification:
-
U.L, ANSI grade 1
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KEYMAN
-
Model Number:
-
QM707 8001 Mortise Lockset, F07 Storeroom
-
ANSI MORTISE LOCK:
-
SECTIONAL TYPE
-
Certification:
-
U.L, ANSI grade 1
Product Description
Specification
|
Spec.
|
Description
|
|

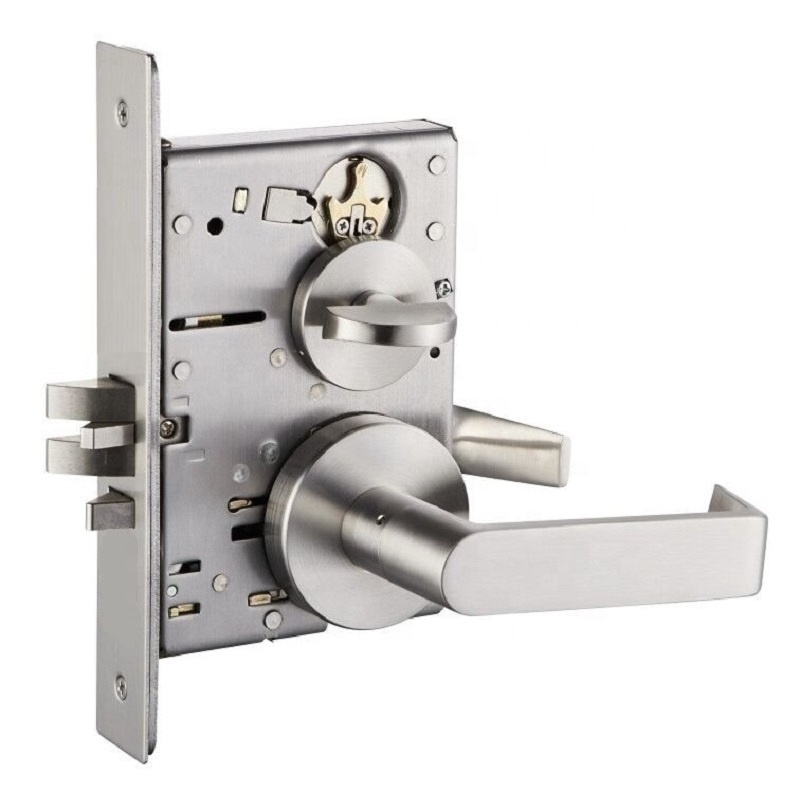

ANSI Mortise Lockset
|
Sectional Type, Completset
|
|
Mortise
|
Function: ANSI no.
F07 Storeroom Lock
|
|
|
Keyman: FC729A
- Length: 1-1/8" (29mm)
- Solid Brass
- Keyway: Schlage "C"
- 6 pin, 3pcs key
Standard: Key Different
|
|
Door Thickness
|
1-3/4" (45mm)
|
|
Lockset Surface
|
SUS304
|
|
Finish (Color)
|
630 , 32D, Satin Stainless
|
|
Fire Rated
|
YES.
|
|
Panic Exit
|
YES. Inside Handle Always Free for Emergency.
|
|
Certificate
|
ANSI Grade 1, Mortise Lock / UL R27775
|
|
Standard
|
ANSI/BHMA A156.13-2017 for MORTISE LOCKS & LATCHES
|
Packing & Delivery
Box for Complete Lockset
Box Inside
Content Pack
