- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
LEFOO
-
Model Number:
-
LF32
-
Max. Current:
-
1.5A
-
Max. Working Pressure:
-
10KPA
-
Power Supply:
-
250VAC
-
Switch Type:
-
SPDT
-
Protection rating:
-
IP54
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LEFOO
-
Model Number:
-
LF32
-
Max. Current:
-
1.5A
-
Max. Working Pressure:
-
10KPA
-
Power Supply:
-
250VAC
-
Switch Type:
-
SPDT
-
Protection rating:
-
IP54
Product Description
APPLICATION:
Controlling fire protection flaps in ventilation ducts.Monitoring air filters in cooling and heating systems.

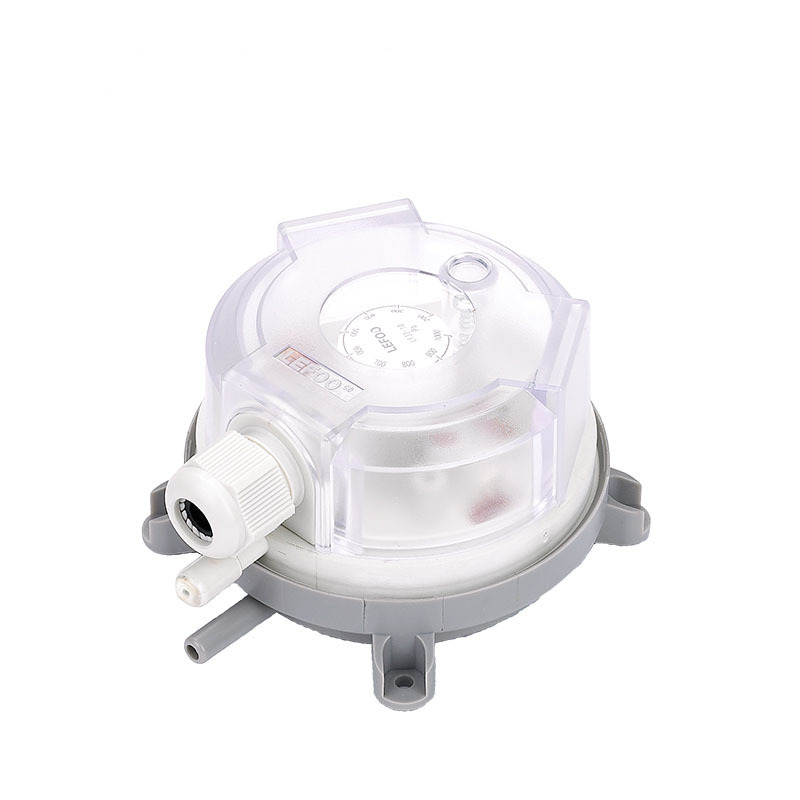

LF32
is an
a
djustable differential pressure switch
capable of detecting miniscule changes in pressure due to the size and proven design. The switch set point or switching point can be field adjustable without the need of a manometer by simply using the adjust ment knob and the built in calibrated visual scale. This switch is equipped a clear cover that not only protects the adjustment knob to be move involuntary but also provides class IP54 protection.
LF32 Pressure Range
|
Model
|
Pressure Range
|
Differential
|
Tolerances
|
|
LF32-02
|
20-200(Pa)
|
10(Pa)
|
≤±15%
|
|
LF32-03
|
30-300(Pa)
|
10(Pa)
|
≤±15%
|
|
LF32-04
|
40-400(Pa)
|
20(Pa)
|
≤±15%
|
|
LF32-05
|
50-500(Pa)
|
20(Pa)
|
≤±15%
|
|
LF32-10
|
200-1000(Pa)
|
100(Pa)
|
≤±15%
|
|
LF32-25
|
500-2500(Pa)
|
150(Pa)
|
≤±15%
|
|
LF32-11
|
100-1000(Pa)
|
50(Pa)
|
≤±15%
|
|
LF32-50
|
1000-5000(Pa)
|
250(Pa)
|
≤±15%
|
Specification
|
Model
|
LF32
|
|
Media
|
Air, non-combustible and ono-aggressive gass
|
|
Max Operating Pressure
|
10kPa
|
|
Mounting Position
|
Diaphragm in any vertical Plane
|
|
Degree of protection
|
IP54(with cover), IP00(without cover)
|
|
Operating Temperature
|
-40℃ to +85℃
|
|
Contact Arrangement
|
SPDT
|
|
Electrical Rating
|
Resistance: initial<100 milliohms
Current: 1.5A(0.4A)/250V |
|
Termimnal
|
6.3mm×0.8 blade or screw terminal
|
|
Connection
|
Φ6.4mm for tube connection
|
Conversion: 1in W.C.=249Pa 1mbar=100Pa
