14hp air-cooled diesel engine type yangdong diesel engine 192
14hp air-cooled diesel engine type yangdong diesel engine 192
14hp air-cooled diesel engine type yangdong diesel engine 192
14hp air-cooled diesel engine type yangdong diesel engine 192
14hp air-cooled diesel engine type yangdong diesel engine 192
14hp air-cooled diesel engine type yangdong diesel engine 192
14hp air-cooled diesel engine type yangdong diesel engine 192
14hp air-cooled diesel engine type yangdong diesel engine 192

14hp air-cooled diesel engine type yangdong diesel engine 192

FOB Reference Price: Get Latest Price
≥5 Sets
US $360
≥100 Sets
US $250
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
China
Brand Name:
Hi-earns/OEM
Dimension(L*W*H):
520*520*565mm
Weight:
50
Rated power/speed:
9.3kw/3600rpm
color:
optional
Engine power:
14HP diesel engine
Start system:
Recoil or electric start
Speed:
3000/3600 RPM
Output type:
Keyway, spline, camshaft optional
BORE*STROKE:
92x75
Color:
Optional
Product name:
yangdong diesel engine 192
After Warranty Service:
Spare parts

Quick Details

Displacement:
498cc, 498cc
Emission Standard:
EURO 5
Power:
14hp
Place of Origin:
China
Brand Name:
Hi-earns/OEM
Dimension(L*W*H):
520*520*565mm
Weight:
50
Rated power/speed:
9.3kw/3600rpm
color:
optional
Engine power:
14HP diesel engine
Start system:
Recoil or electric start
Speed:
3000/3600 RPM
Output type:
Keyway, spline, camshaft optional
BORE*STROKE:
92x75
Color:
Optional
Product name:
yangdong diesel engine 192
After Warranty Service:
Spare parts

14hp air-cooled diesel engine copy yangdong diesel engine 192

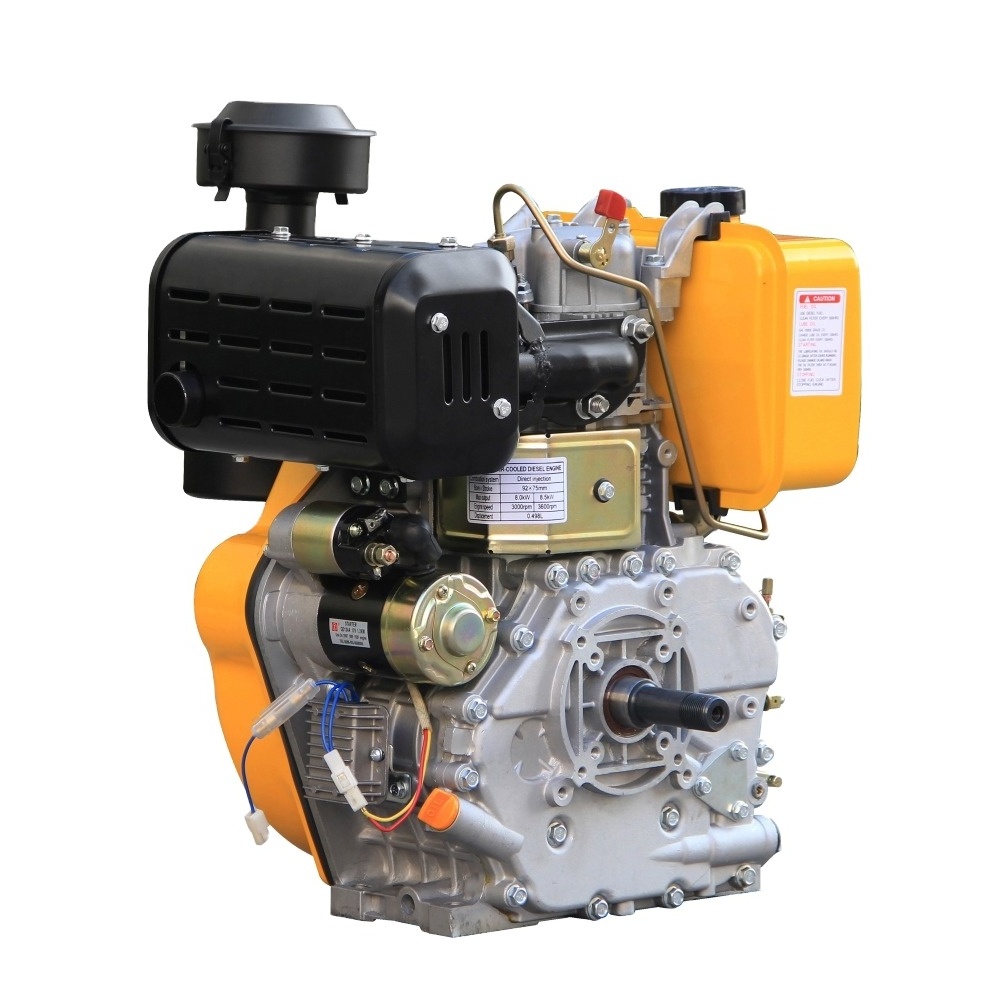

HR192FDE model: 14HP rated output, Air-cooled 4-stroke small diesel engine.

Keyway shaft, spline shaft, camshaft and so on output type are optional.

Recoil or Electric start also optional ensure easy starting.

Related Products

Model HR192FD
Bore × stroke(mm) 92×75
Displacement(cc) 498
Engine speed(rpm) 3000 3600
Max.output(kw) 8.8 9.3
Continuous output(kw ) 8.0 8.5
Power output Crankshaft or camshaft(Camshaft PTO rpm is 1/2)
Starting system Recoil or electric
Fuel tank capacity(L) 5.5
Rube oil capacity(L) 1.65
Dimension(mm) 417×470 ×494
Net weight(kg) 49/52
Product Description

Field of Application

♦ Our products are widely used in various fields, such as generators,water pumps, rotavator,concrete cutter,plate compactor,high pressure washer
