Quick Details
-
Number of Row:
-
Single row
-
Model Number:
-
6205VA201
-
Seals Type:
-
ZZ
-
Place of Origin:
-
China
-
Product name:
-

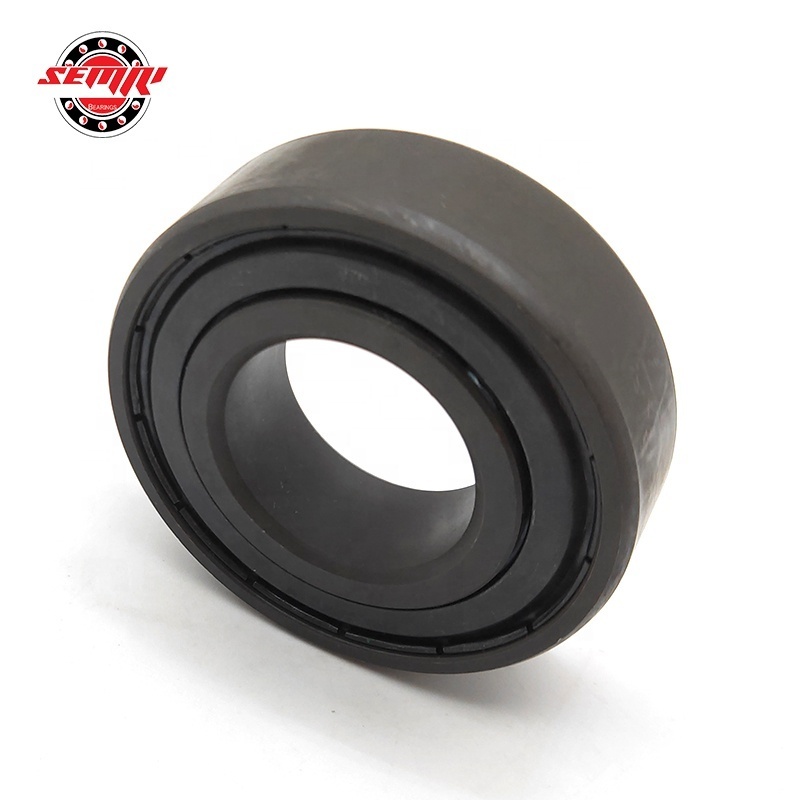

SWEDEN Heat Resistant High Temperature Deep Groove Ball Bearing
-
Material:
-
High Temperature Steel
-
Dimension:
-
25X52X15mm
-
Color:
-
Black
-
Basic dynamic load rating:
-
14.8 kN
-
Basic static load rating:
-
7.8 kN
-
Limiting speed:
-
230 r/min
-
Limiting Temputure:
-
250 ℃
-
Mass bearing:
-
0.13 kg
-
Keywords:
-
High Temperature Bearing
Quick Details
-
Applicable Industries:
-
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Industry
-
Bore Size:
-
25 - 25.001 mm
-
Precision Rating:
-
P0 P2 P4 P5 P6
-
Number of Row:
-
Single row
-
Model Number:
-
6205VA201
-
Seals Type:
-
ZZ
-
Place of Origin:
-
China
-
Product name:
-
SWEDEN Heat Resistant High Temperature Deep Groove Ball Bearing
-
Material:
-
High Temperature Steel
-
Dimension:
-
25X52X15mm
-
Color:
-
Black
-
Basic dynamic load rating:
-
14.8 kN
-
Basic static load rating:
-
7.8 kN
-
Limiting speed:
-
230 r/min
-
Limiting Temputure:
-
250 ℃
-
Mass bearing:
-
0.13 kg
-
Keywords:
-
High Temperature Bearing
SWEDEN Heat Resistant High Temperature Deep Groove Ball Bearing 6205ZZ/C4VA201 6205 C3 VA201 6205VA201
| d | 25 | mm |
| D | 52 | mm |
| B | 15 | mm |
SEMRI ball bearings for high as well as low temperatures correspond in design to the appropriate standard single row deep groove ball bearings. They have no filling slots and are able to accomodate moderate axial loads in addition to radial loads.
A feature of these bearings include large radial internal clearance which is four times the C5 clearance preventing them from seizing even when they are rapidly cooled. All surfaces of the bearing are manganese phosphated, providing protection against corrosion and improving running properties.
- Protective shieds on both sides to prevent ingress of solid contaminants
- Pressed steel cage
- Lubricated with twice the amount of polyalkylene glycol/graphite mixture than the open VA201 design and can be used at temperatures between -40 and +250°C
- At temperatures above +200°C, dry lubrication pertains
- Loctite Bearing Retainer
