Quick Details
-
Structure:
-
Other
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Lanyi
-
Voltage:
-
220V/380v
-
Dimension(L*W*H):
-
Customer Request
-
Weight (KG):
-
200 kg
-
Product name:
-
2019 top sale vertical hopper powder screw auger conveyor
-
Color:
-
Customer Request
-
Application:
-
,Powder,Food,corn, flour,suger,rice
-
Usage:
-
Inclined Conveyor
-
Motor brand:
-
China famous brand
-
Frame Material:
-
SUS304/Carbon Steel
-
Feature:
-
High Efficiency
-
Diameter:
-
140mm
-
Function:
-
Conving Equipment
-
After Warranty Service:
-
Video technical support
Quick Details
-
Power:
-
2.2KW
-
Warranty:
-
1 Year
-
Width or Diameter:
-
140
-
Structure:
-
Other
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Lanyi
-
Voltage:
-
220V/380v
-
Dimension(L*W*H):
-
Customer Request
-
Weight (KG):
-
200 kg
-
Product name:
-
2019 top sale vertical hopper powder screw auger conveyor
-
Color:
-
Customer Request
-
Application:
-
,Powder,Food,corn, flour,suger,rice
-
Usage:
-
Inclined Conveyor
-
Motor brand:
-
China famous brand
-
Frame Material:
-
SUS304/Carbon Steel
-
Feature:
-
High Efficiency
-
Diameter:
-
140mm
-
Function:
-
Conving Equipment
-
After Warranty Service:
-
Video technical support

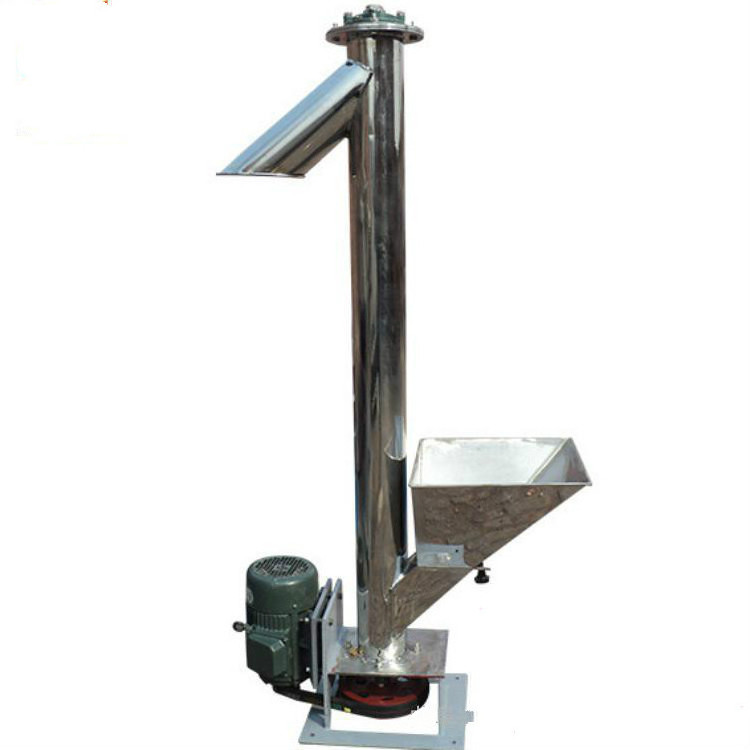

Small stainless steel 316 mobile hopper vertical flour screw feeder conveyor manufacturer for grain agriculture bulk material
T he vertical screw conveyor model can be reasonably selected according to the material size , conveying capacity and conveying distance . We will offer the parameter list and drawing for free.
|
Model |
LS-3 |
LS-5 |
LS-6 |
LS-8 |
LS-10 |
|
Capacity (m3/h) |
3 |
5 |
6 |
8 |
12 |
|
Screw roating speed(rpm) |
20-140 |
20-140 |
20-140 |
20-140 |
20-140 |
|
Screw diameter(mm) |
114 |
141 |
159 |
168 |
219 |
|
Motor Power(KW) |
1.5 |
2.2 |
3 |
4 |
5.5 |
|
Hopper Volume(L) |
200 |
200 |
200 |
400 |
600 |
|
Weight(kg) |
130 |
170 |
200 |
220 |
270 |
Details Image
Compared with other conveying equipment, the vertical screw conveyor has the advantages of simple structure, small cross-sectional size, good sealing performance, It can be loaded and unloaded in multiple places, safe and convenient to operate, and low in manufacturing cost.
Application scenario
1) The structure is simple, compact, low cost in production, easy maintenance and low in cost;
2) Because it is made of seamless pipe, the sealing effect is good, so it is suitable for easy flying, hot materials, toxic and odorous materials;
3) It is possible to feed more material and big discharge.
4) It has stirring, mixing and cooling operations;
Vertical Screw conveyor machine is widely used in various industries, such as building materials, chemical industry, electric power, metallurgy, coal charcoal, grain and other industries. It is suitable for conveying powdery, granular and small block materials with horizontally or inclined, such as coal, ash, slag, cement and grain. Etc., the material temperature is less than 200 °C. Screw conveyor machines are not suitable for conveying materials that are prone to deterioration, viscous, and agglomerate. In the concrete mixing station, the role of the screw conveyor is the biggest manifestation.
Related Productions
| Pipe screw conveyor | U shape screw conveyor | Inclined screw conveyor |
Packing & Shipping
