Quick Details
-
Material:
-
Metal
-
Application:
-
Outdoor, Commercial, Household
-
Power Source:
-
Electric
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XUFENG
-
Model Number:
-
XFFS-1
-
Power (W):
-
1.5kW
-
Voltage (V):
-
380V
-
Max diameter:
-
7.3m (24ft)
-
Wind speed:
-
53-75rpm
-
Wind load:
-
5800-13200m3/min
-
Full load current:
-
1.89-3.23A/380v
-
Voltage:
-
380V
-
Power:
-
1.5kW
-
MOQ:
-
1 Set
-
Packing:
-
Wooden Box
-
Delivery Time:
-
15-25days
-
Certification:
-
ce
Quick Details
-
After-sales Service Provided:
-
Onsite Installation
-
Warranty:
-
2 years
-
Type:
-
Ventilation Fan
-
Material:
-
Metal
-
Application:
-
Outdoor, Commercial, Household
-
Power Source:
-
Electric
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XUFENG
-
Model Number:
-
XFFS-1
-
Power (W):
-
1.5kW
-
Voltage (V):
-
380V
-
Max diameter:
-
7.3m (24ft)
-
Wind speed:
-
53-75rpm
-
Wind load:
-
5800-13200m3/min
-
Full load current:
-
1.89-3.23A/380v
-
Voltage:
-
380V
-
Power:
-
1.5kW
-
MOQ:
-
1 Set
-
Packing:
-
Wooden Box
-
Delivery Time:
-
15-25days
-
Certification:
-
ce
X possibilities & F lexible solutions-- XuFeng Door

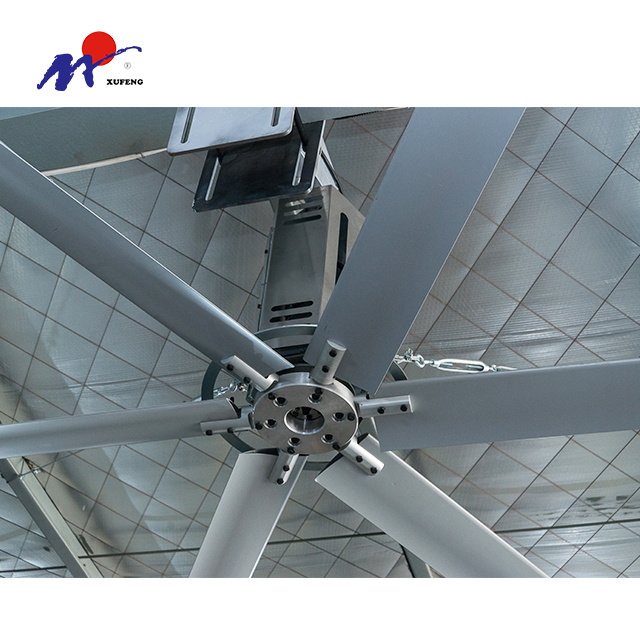

HVLS Industrial Ceiling Fans is made up of high quality leaves, hardware and motor. We have 30+ Years Production Experience. We strictly control all details to ensure outputting high quality products. We had cooperated many customers from over 30 countries . And OEM for CASTCORMA, OBI, LORRYMERILIN, RONA and so on.
| Models | XF-F7 | XF-F 6 | XF-F5 | XF-F 4 | XF-F 3 |
| Fan diameter ( m ) ft | 7.3( 24ft ) | 6.1( 20ft ) | 5.5 (18 ft ) | 4.9 ( 16ft ) | 3.7 ( 12ft ) |
| Fan weight ( kg ) | 112 | 105 | 100 | 95 | 85 |
| Max speed ( rpm ) | 53 | 53 | 64 | 64 | 75 |
| Noise( dBA ) | 45 | 45 | 45 | 45 | 45 |
| Full load current ( A ) 380V | 3.23 | 2.52 | 2.32 | 1.97 | 1.89 |
| Power ( kW ) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Max wind load ( m 3 /min ) | 13200 | 11200 | 9200 | 7600 | 5800 |
Safety Protection
1.Safety Ring: to avoid any components fall if fan is broken
2.Anti-falling loop-shaped device: to connect all the fan blades with the fan hub tightly.
3.12.9 level fasteners: all using high-strength industrial bolts
4.Stainless wire protection: the strength intensity of EACH stainless wire is up to 1000KGS.
5.The fan will alarm & stopped working automatically in emergency situation, which is controlled by Danfoss Control Unit.
Can I Have More Styles and More Color?
Of Course, Please Click Here and Contact Our Advisor.
Why choose XUFENG industrial electric fans?
Saving electricity cost
--1 KW/H power consumption for ONE fan.
--Application space: 500-1000m2, with outstanding advantage for saving electricity cost by comparing with traditional fans or Air conditioners.
High Air-convection efficiency
--High quality Aluminum streamline fan blade by adopting advanced manufacturing technique in accordance with aerodynamics.
--1.5 KW power can agitate 13,200 m3 breeze draughts to lower the air temperature.
Comprehensive solution
--Optional fan diameter from 3.7m to 7.3m (Air-convection space: 500-1000m2)
-- Multi-applications: factories, Steel-structure buildings, Machining workshop, Warehouses, 4S Shop, Parking, and Tennis court etc.
Our servies:
1. Every details we can concern: place order, manufacture, delivery, you just accept them.
2. 3-year warranty for each fan to guarantee
3. Can customize as your reqiurements
4. Free maintenance for the fan
5. 24-hour per day service (on line)
