Quick Details
-
Brand Name:
-
SOKE
-
Voltage:
-
380V/50HZ
-
Power:
-
15KW
-
Dimension(L*W*H):
-
2700x1500x1000mm
-
Weight:
-
2300 kg
-
Features:
-
flat pushing
-
Name:
-
Concrete hollow core slab machine
-
Product name:
-
Mobile Concrete Hollow Core Slab Machine Price /100*900precast Concret
-
Usage:
-
Precast Buildings
-
Keywords:
-
Prestressed Concrete Hollow Slab Forming Machine
-
Type:
-
Sandwich Wall Panel Forming Machine
-
Use:
-
Concrete Hollow Core Slab Used
-
Main process:
-
Forming Demoulding
-
Finished products:
-
Hollow Core Wall Panel
-
Wall panel Type:
-
Acotec Wall Panels
-
Use1:
-
Lightweight Hollow Core Wall Panel Machine
Quick Details
-
Application:
-
produce concrete hollow core slab
-
Production Capacity:
-
1.3-1.5m/min
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SOKE
-
Voltage:
-
380V/50HZ
-
Power:
-
15KW
-
Dimension(L*W*H):
-
2700x1500x1000mm
-
Weight:
-
2300 kg
-
Features:
-
flat pushing
-
Name:
-
Concrete hollow core slab machine
-
Product name:
-
Mobile Concrete Hollow Core Slab Machine Price /100*900precast Concret
-
Usage:
-
Precast Buildings
-
Keywords:
-
Prestressed Concrete Hollow Slab Forming Machine
-
Type:
-
Sandwich Wall Panel Forming Machine
-
Use:
-
Concrete Hollow Core Slab Used
-
Main process:
-
Forming Demoulding
-
Finished products:
-
Hollow Core Wall Panel
-
Wall panel Type:
-
Acotec Wall Panels
-
Use1:
-
Lightweight Hollow Core Wall Panel Machine

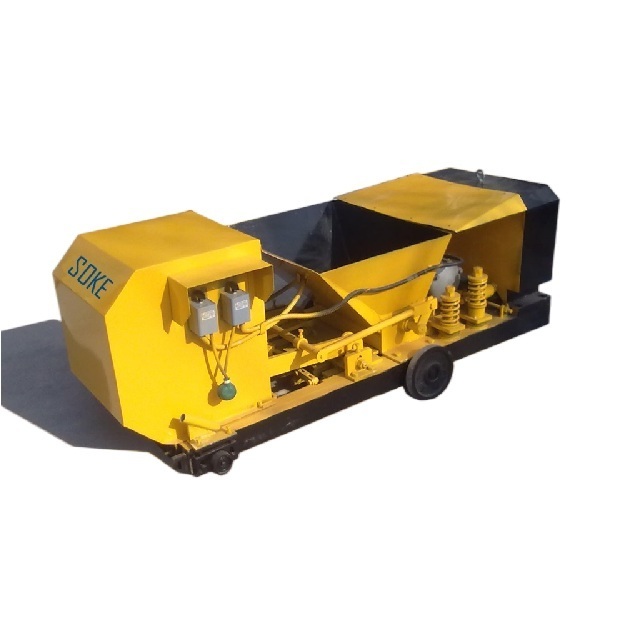

Prestressed concrete hollow core slab machine
Feature of prestressed concrete hollow core slab machine
The prestressed concrete hollow core slab machine is used for the production of 90mm-380mm thick prestressed precast concrete hollow core slab.Hollow core slabs are precast slabs of pre-stressed concrete typically used in the construction of floors in multi-storey residential, commercial, office, and industrial buildings. It is also possible to use hollow core slabs in vertical or horizontal installations as walls or noise barriers.
Prestressed concrete hollow core slab machine descrition
1. The machine is used for the production of prestressed concrete hollow core slab.
2. The machine uses slipformer and extruder technology.
3. The raw materials are cement, sand and aggregate.
4. The machine can make 1.4-1.6m/min hollow core slab.
5. The prestressing system can prestress the steel wire.
6. The machine can make different sizes of hollow core slab.
2. The machine uses slipformer and extruder technology.
3. The raw materials are cement, sand and aggregate.
4. The machine can make 1.4-1.6m/min hollow core slab.
5. The prestressing system can prestress the steel wire.
6. The machine can make different sizes of hollow core slab.
Prestressed concrete hollow core slab machine specification
Specification of TW prestressed concrete hollow core slab machine
|
Concrete Hollow Core Slab Machine
|
Motor power (kw)
|
Vibrator power (kw)
|
Weight (kg)
|
Forming speed (m/min)
|
Holes No.
|
Dia. of holes
|
Dimension LxWxH (m)
|
|||||||
|
50x500
|
3.0
|
0.8
|
700
|
1.2-1.4
|
8
|
Φ25
|
1.80x0.75x0.65
|
|||||||
|
50x500+80x500
|
4.0
|
1.5
|
930
|
1.2-1.4
|
6
|
Φ25(Φ42)
|
2.03x0.73x0.66
|
|||||||
|
60x500+80x500
|
4.0
|
1.5
|
910
|
1.2-1.4
|
7
|
Φ25 (Φ42)
|
2.03x0.83x0.66
|
|||||||
|
90x600
|
4.0
|
2.2
|
955
|
1.2-1.4
|
6
|
Φ50
|
2.10x0.84x0.73
|
|||||||
|
100x600
|
4.0
|
2.2
|
975
|
1.2-1.4
|
6
|
Φ60
|
2.10x0.85x0.73
|
|||||||
|
120x600
|
5.5
|
3.0
|
1050
|
1.2-1.4
|
5
|
Φ76
|
2.10x0.85x0.75
|
|||||||
|
120x900
|
7.5
|
3.0
|
1580
|
1.2-1.4
|
8
|
Φ76
|
2.50x1.30x0.90
|
|||||||
|
120x1200
|
7.5
|
3.0
|
1650
|
1.2-1.4
|
11
|
Φ76
|
2.50x1.70x0.90
|
|||||||
|
120x600
|
5.5
|
3.0
|
1150
|
1.2-1.4
|
5
|
Φ76
|
2.30x1.10x0.90
|
|||||||
|
180x600
|
7.5
|
3.0
|
1290
|
1.2-1.4
|
3
|
Φ130
|
2.30x1.10x0.95
|
|||||||
|
180x900
|
7.5
|
3.0
|
1900
|
1.2-1.4
|
5
|
Φ130
|
2.80x1.50x1.40
|
|||||||
|
The prestressed concrete hollow core slab machine can be customized according to the hollow core slab thickness required by the customer. The normal thickness range is 50-200mm, and the width range is 300-1500mm
|
|
|
|
|
|
|
|
|||||||
Specification of HTY prestressed concrete hollow core slab machine
|
Concrete Hollow Core Slab Machine
|
Motor power (kw)
|
Vibrator power (kw)
|
Weight (kg)
|
Forming speed (m/min)
|
Holes No.
|
Holes
|
Weight(KG)
|
|||||||
|
200x900
|
11
|
3.6
|
0.8
|
1-1.2
|
6
|
Round or Peach
|
2600
|
|||||||
|
250x900
|
11
|
4.7
|
0.8
|
1-1.2
|
6
|
Round or Peach
|
3700
|
|||||||
|
300x900
|
11
|
4.7
|
1.1
|
1-1.2
|
5
|
Round or Peach
|
4500
|
|||||||
|
200x1200
|
11
|
11
|
1.1
|
1-1.2
|
8
|
Round or Peach
|
3100
|
|||||||
|
200x1200
|
11
|
11
|
1.1
|
1-1.2
|
8
|
Round or Peach
|
3100
|
|||||||
|
250x1200
|
15
|
11
|
1.1
|
1-1.2
|
8
|
Round or Peach
|
4500
|
|||||||
|
300x1200
|
18.5
|
15
|
1.5
|
1-1.2
|
6
|
Round or Peach
|
5100
|
|||||||
|
The prestressed concrete hollow core slab machine can be customized according to the hollow core slab thickness required by the customer. The normal thickness range is 200-380mm, and the width range is 600-1500mm
|
|
|
|
|
|
|
|
|||||||
Other precast elements can be produced
Concrete Beam,Lintel,H beam,T beam machine
Our slipform machine can produce solid slabs, boundary wall panels,fence panels, concrete beams, concrete lintels, concrete H beams,concrete T beam, we can design the machines according to your drawings of elements.
Finished product
Our services
* The technical supporting all the time 7x24hours
* One year warranty for whole machine
* Free quick wear parts
* Free training to end-users and online training
* Low charge continue maintenance
* One year warranty for whole machine
* Free quick wear parts
* Free training to end-users and online training
* Low charge continue maintenance
