Quick Details
-
Showroom Location:
-
Other
-
Brand Name:
-
Powersen
-
Place of Origin:
-
Shandong China
-
Pressure:
-
16-300
-
Structure:
-
Piston rod
-
Weight:
-
20
-
Power:
-
Hydraulic
-
Dimension(L*W*H):
-
Depends on the model
-
Rod Diameter:
-
Depends on the model
-
Outer Tube Diameter:
-
Depends on the model
-
Product name:
-

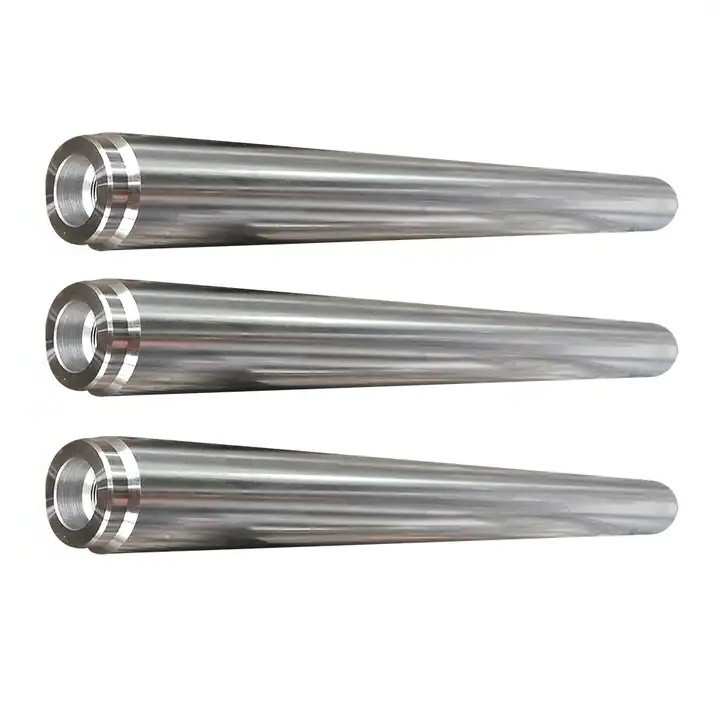

Piston Rod For Hydraulic Cylinder
-
Material:
-
CK45, 40Cr, 42CrMo4, 316, 304 etc
-
Chrome Thickness:
-
10micron-100micron
-
Roughness:
-
Ra 0.2 M(max)
-
Tolerance:
-
ISO F7
-
Application:
-
Machinery
-
Keyword:
-
Chrome Bar Rod
-
Size:
-
Customer's requirement
-
Heat treatment:
-
Nope, Q+T, Inductioned
-
Sample:
-
Available
Quick Details
-
Warranty:
-
5 years
-
Maximum Stroke:
-
Other
-
Inner Tube Diameter:
-
Other
-
Showroom Location:
-
Other
-
Brand Name:
-
Powersen
-
Place of Origin:
-
Shandong China
-
Pressure:
-
16-300
-
Structure:
-
Piston rod
-
Weight:
-
20
-
Power:
-
Hydraulic
-
Dimension(L*W*H):
-
Depends on the model
-
Rod Diameter:
-
Depends on the model
-
Outer Tube Diameter:
-
Depends on the model
-
Product name:
-
Piston Rod For Hydraulic Cylinder
-
Material:
-
CK45, 40Cr, 42CrMo4, 316, 304 etc
-
Chrome Thickness:
-
10micron-100micron
-
Roughness:
-
Ra 0.2 M(max)
-
Tolerance:
-
ISO F7
-
Application:
-
Machinery
-
Keyword:
-
Chrome Bar Rod
-
Size:
-
Customer's requirement
-
Heat treatment:
-
Nope, Q+T, Inductioned
-
Sample:
-
Available
Product Description
|
Item
|
Chrome Plated Rod
|
|
Place of Origin
|
Shandong China
|
|
Brand Name
|
Powersen
|
|
Section Shape
|
Round
|
|
Certificate
|
API, JIS, GS, ISO9001
|
|
Grade
|
45# steel, CK45, 1045, 40Cr, 42CrMo, 316, 304, or Customized steel by your requirements.
|
|
Tolerance
|
±5%, ±1%
|
|
OD & ID & Length
|
OEM
|
|
Roughness
|
Ra0.2 max
|
|
Chrome Thickness
|
Customized
|
Custom-made Service
We can custom your piston rod according to your drawing and requirements.
Hollow Chrome plated piston rod , Chrome plated solid rod , Piston rod with special customization
Specification
|
Piston Rod Parameter
|
|
|
|
|||
|
Specification
|
Φ6---Φ12
|
Φ16---Φ25
|
Φ28---Φ75
|
|||
|
Length
|
800mm---2000mm
|
1200mm---3000mm
|
1500mm---3000mm
|
|||
|
OD Tolerance
|
Nation Standard f7
|
|
|
|||
|
Surface Roughness
|
Ra0.4-0.1
|
|
|
|||
|
Straightness(mm/m)
|
0.15/1000mm
|
|
|
|||
|
Full-Length Size Tolerance
|
GB1100IT Grade
|
|
|
|||
|
Roundness Tolerance(mm)
|
GB1184 9Grade
|
|
|
|||
|
Chrome Thickness
|
It is customized thickness according to client's requirements
|
|
|
|||
|
Material
|
40Cr, 42CrMo4, 316, 304,45# Steel(CK45) Or Customized steel grade
|
|
|
|||
|
We can custom Piston Rod according to your drawing and requirements.
|
|
|
|
|||
|
Piston Rod Specifications
|
|
|
|
|
||||
|
Φ10
|
Φ32
|
Φ70
|
Φ125
|
Φ19.05
|
||||
|
Φ12
|
Φ35
|
Φ75
|
Φ130
|
Φ25.4
|
||||
|
Φ14
|
Φ36
|
Φ80
|
Φ140
|
Φ31.75
|
||||
|
Φ16
|
Φ40
|
Φ85
|
Φ150
|
Φ38.1
|
||||
|
Φ18
|
Φ45
|
Φ90
|
Φ200
|
Φ44.45
|
||||
|
Φ20
|
Φ50
|
Φ95
|
|
Φ50.8
|
||||
|
Φ22
|
Φ55
|
Φ100
|
|
Φ63.5
|
||||
|
Φ25
|
Φ60
|
Φ105
|
|
Φ76.2
|
||||
|
Φ28
|
Φ63
|
Φ110
|
|
Φ88.9
|
||||
|
Φ30
|
Φ65
|
Φ120
|
|
Φ101.6
|
||||
|
Mechanical Properties
|
|
|
|
|
||||
|
Steel Grade
|
Tensile strength
σ b N/mm²
|
Yield strength
σ s N/mm²
|
Elongation
δ %
|
Hardness
HB
|
||||
|
20#
|
≥520
|
≥470
|
≥12
|
175
|
||||
|
45#(CK45)
|
≥600
|
≥520
|
≥12
|
207
|
||||
|
16Mn(ST52)
|
≥600
|
≥520
|
≥15
|
190
|
||||
|
25Mn
|
≥600
|
≥520
|
≥15
|
195
|
||||
|
27Simn
|
≥800
|
≥720
|
≥10
|
230
|
||||
|
...
|
...
|
...
|
...
|
...
|
||||
