Quick Details
-
Battery cell:
-
LiFePO4
-
Features:
-
Stackable
-
Application:
-
Solar Energy Storage Systems/Electric Power Systems
-
Certification:
-
CE/RoHS/UN38.3/MSDS/ISO
-
OEM/ODM:
-
Support customization
-
Communication:
-
CANBUS and RS485
-
BMS:
-
48V 16S 100A/150A/200A BMS
-
Warranty:
-
5 years
-
230Ah size:
-
550*410*260mm
-
280Ah size:
-
680*410*260mm
Quick Details
-
Model Number:
-
EEL 16S 48V box
-
Brand Name:
-
EEL
-
Place of Origin:
-
Guangdong, China
-
Battery cell:
-
LiFePO4
-
Features:
-
Stackable
-
Application:
-
Solar Energy Storage Systems/Electric Power Systems
-
Certification:
-
CE/RoHS/UN38.3/MSDS/ISO
-
OEM/ODM:
-
Support customization
-
Communication:
-
CANBUS and RS485
-
BMS:
-
48V 16S 100A/150A/200A BMS
-
Warranty:
-
5 years
-
230Ah size:
-
550*410*260mm
-
280Ah size:
-
680*410*260mm
Product Parameters
|
Item
|
General Parameters
|
|
|
|
|||
|
Model
|

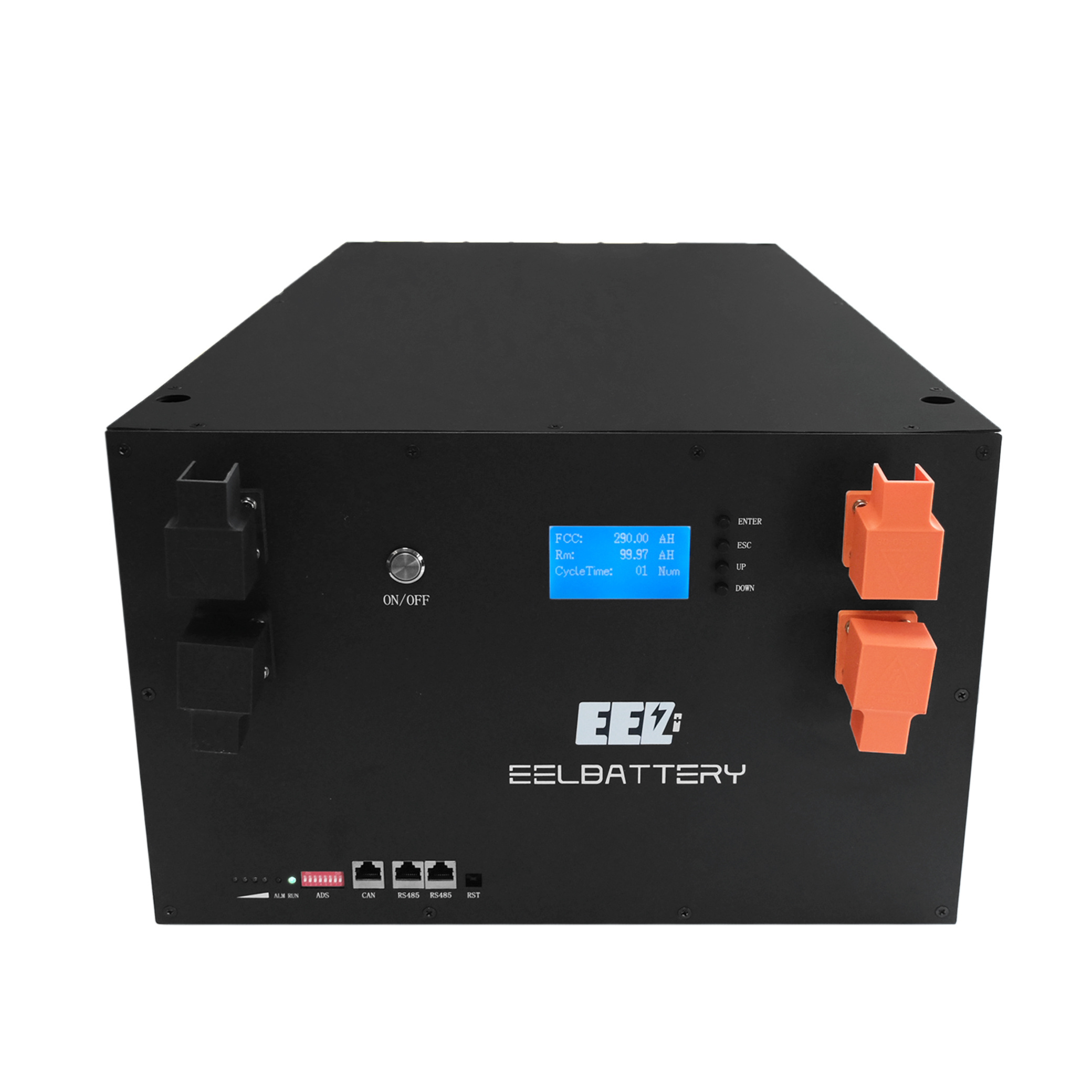

EEL 48V 230AH/280AH Lifepo4 Battery Case
|
|
|
|
|||
|
Nominal Voltage
|
51.2V
|
|
|
|
|||
|
Nominal Capacity
|
230AH/280AH
|
|
|
|
|||
|
Supported battery models
|
CATL/CALB/E-VE 280AH/302AH/304AH
|
|
|
|
|||
|
Max Charge Voltage
|
58.4V
|
|
|
|
|||
|
Cut-off Discharge Voltage
|
40V
|
|
|
|
|||
|
Standard Charge Float Voltage
|
55.2V
|
|
|
|
|||
|
Max 10sec. Pulse Current
|
380A
|
|
|
|
|||
|
Max. Continuous Discharge Current
|
200A
|
|
|
|
|||
|
Max Charge Current
|
200A
|
|
|
|
|||
|
Recommended Current
|
140A (25±2℃)
|
|
|
|
|||
|
Weight (Approximate)
|
25KG/29KG
|
|
|
|
|||
|
Dimensions (L*W*H)
|
L68*W41*H26cm
|
|
|
|
|||
|
Operating Temperature
|
Charging: -20~60℃/Discharging: -30~60℃
|
|
|
|
|||
|
Application
|
Power Storage System, Electric vehicles, Golf carts and so on
|
|
|
|
|||
Battery Accessories
Packing List:
1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover)
1 * 16S 48V (100A/150A/ 200A) LiFePO4 Battery BMS
4 * Handle
2 * PCB Board for BMS and Cell Connection
3 * Upper and Lower Latch lock
1 * LCD Display
1 * LCD Screen Sticker
4 * Button Cap
3 * Wires (LCD Screen wire, PCB board and PCB board Connector)
2 * Battery Terminals (P+ Terminal and P- Terminal)
1 * RS485 USB adapter to connect upper computer
Other components included:
6 * Copper busbars (BMS connection)
15 * Flexible busbars (Cell connection)
10 * Epoxy sheet (Between cell and the case)
26 * EVA Tape (Between cells)
1 * PC sheet (Top cover)
