PET Expandable Braided sleeving Split Sleeve Wire loom wrap cable management protector 1/4

PET Expandable Braided sleeving Split Sleeve Wire loom wrap cable management protector 1/4" 1/8"

FOB Reference Price: Get Latest Price

≥100 Meters

US $0.08

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: Braided Tube

Product Name:: PET Braided tube

Colors:: support custom colors

Usage:: Protector Cable

Sample:: Freely Supplied

MOQ:: 1 Roll

Expandable:: 150%

Certificate:: SGS, UL, RoHS

Working temperature:: -50C~+150C

Melting point:: 250C +/- 5C

OD:: 6mm/8mm/10mm/12mm/14mm/20mm Optional(customized)

Quick Details

Material:: PET

Place of Origin:: Jiangsu, China

Brand Name:: WWC

Model Number:: Braided Tube

Product Name:: PET Braided tube

Colors:: support custom colors

Usage:: Protector Cable

Sample:: Freely Supplied

MOQ:: 1 Roll

Expandable:: 150%

Certificate:: SGS, UL, RoHS

Working temperature:: -50C~+150C

Melting point:: 250C +/- 5C

OD:: 6mm/8mm/10mm/12mm/14mm/20mm Optional(customized)

Product Description

PET Expandable Sleeve

PET(polyethylene terephthalate ) material, excellent application for various bundle wires, wiring harness and hoses protection, etc

✦ Good flexibility, easy to bend

✦ Excellent abrasion resistance

✦. Convenient installation

✦. Continuous operating temperature :-50℃ ～ 150℃

✦ Fusing point : 240℃±10℃

✦. Flame retardant rating :VW-1

✦ UL certification : E490480

✦ Environmental protection standard: RoHS

✦ Standard color: Black( other colors are available upon request )

Model	Nominal size ( mm )	Application range ( mm )			Packaging ( M / Roll )
Model	Nominal size ( mm )			Min	Packaging ( M / Roll )	Max
PET—002	∅2	1	5	500
PET—003	∅3	1	6	500
PET—004	∅4	2	8	500
PET—005	∅5	3	10	500
PET—006	∅6	4	12	500
PET—007	∅7	5	14	500
PET—008	∅8	6	15	500
PET—010	∅10	7	20	500
PET—012	∅12	8	24	250
PET—015	∅15	10	28	250
PET—018	∅18	11	32	250
PET—020	∅20	12	35	250
PET—025	∅25	14	39	250
PET—028	∅28	15	42	150
PET—032	∅32	16	46	150
PET—035	∅35	18	50	150
PET—038	∅38	20	57	100
PET—040	∅40	22	60	100
PET—045	∅45	25	70	100
PET—050	∅50	30	85	50
PET—060	∅60	35	95	50
PET—070	∅70	40	110	50

PET Braided Sleeve

PET braided self-wrap is braided of environmentally friendly PET filament and tetoron filament. It is lightweight and has flame resistance, abrasion resistance and heat insulation. The 40% edge overlap allows coverage around inline plugs, connectors and splices. Compared with other cable sleeves, S7 PET braided self-wrap sleeves are more convenient to install any cables or wires and allow for the addition or removal of wires without disassembly.

Applications: PP woven wrap/ Velcro / Zipper sleeve is widely used in the field of protecting cables, wiring harnesses and tubes. Such as; automobile wire harnesses, electronic devices, and railways.

Material	PET Filament + Tetoron Filament
Working temperature	﹣50℃-+150℃
Melting ponit	250±5℃
Fire rating	VW-1
Certification	ROHS, Halogen-free
Standard color	black, whtie, orange, green , red, blue, gray, carbon color
Cutting tool	Hot cutting

Model	Size	Inner diameter ( mm)	Outer diameter ( mm )	Overlap ratio	Packaging ( M / Roll )
PET—3.0	∅3	3.2±1.0	5.5±1.0	45%±5%	500
PET—5.0	∅5	4.8±1.0	7.5±1.0	45%±5%	500
PET—6.4	∅6.4	6.4±1.0	8.5±1.0	45%±5%	400
PET—8.0	∅8.0	8.0±1.0	10.0±1.0	45%±5%	200
PET—10	∅10	9.5±1.0	11.5±1.0	45%±5%	200
PET—13	∅13	12.7±1.5	15.0±1.5	45%±5%	200
PET—16	∅16	16.0±1.5	18.5±1.5	45%±5%	100
PET—19	∅19	19.0±1.5	21.0±1.5	45%±5%	100
PET—22	∅22	22.0±2.0	23.5±2.0	45%±5%	100
PET—25	∅25	25.4±2.0	27.5±2.0	45%±5%	50
PET—32	∅32	31.5±2.0	35.0±2.0	45%±5%	30
PET—38	∅38	38.1±2.0	41.0±2.0	45%±5%	25
PET—50	∅50	50.8±3.0	54.0±3.0	45%±5%	20

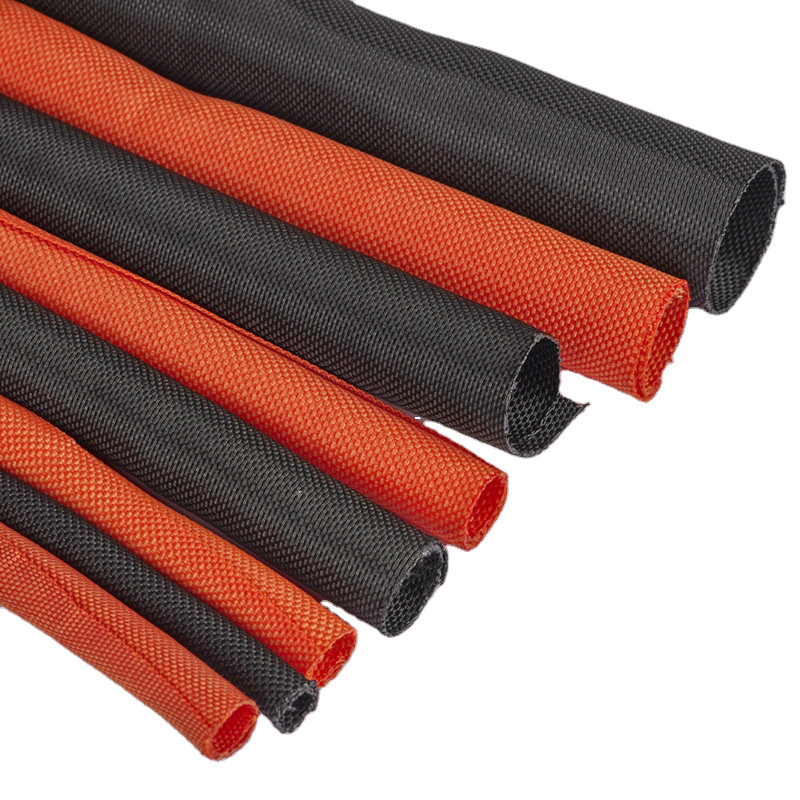

Self-rolling Braided Sleeving

Self-rolling braided sleeving is finely braided from environmentally friendly PET and Teflon yarns with 1/4 diameter overlap, good flame resistance, abrasion resistance, heat dissipation, and allows for covering around in-line plugs, connectors and splices. Its inherent elasticity makes it easy to fold, bend and its open design allows it to be used on any harness assembly and allows the addition or removal of wires, bundles, wire equipment, various tubes without disassembly, while providing strong protection in automobiles, machinery, railways, light railways, etc.

✦ Material: PET

✦. Excellent softness, easy to bend, loose or tight

✦. Good stretchability, elasticity and wear resistance

✦ Operating temperature: -50℃～150℃

✦ Melting point: 250±5℃

✦ Flame retardant grade: self-extinguishing

✦ Environmental standards: RoHS

✦ Standard color: Black

Material	Polyester Monofilament + polyester compound silk
Overlap rater	≥25%
Working temperature	﹣50℃-+150℃
Melting ponit	240±10℃
Fire rating	Meet N5510, NFPA130
Abrasion resistance level	ISO6722, load 7N, scratching times more than 5000 times
Certification	ROHS
Standard color	Black (special color, can be customized according to customer requirements)
Cutting tool	Hot cutting

Model	Inner diameter ( mm )	Max diameter of the cover object ( mm )	Expanding width ( mm )
WPET-SCG-005	5.0	6.0	28±2
WPET-SCG-008	8.0	9.0	40±2
WPET-SCG-010	10.0	11.0	50±5
WPET-SCG-013	13.0	14.0	60±5
WPET-SCG-016	16.0	17.0	80±5
WPET-SCG-019	19.0	20.0	105±5
WPET-SCG-025	25.0	27.0	125±8
WPET-SCG-029	29.0	31.0	145±8

Dual-layer Braided Sleeve

✦ Product name: orange dual layer warning self-rolling pipe ✦ Material : Polyester monofilament, polyester multifilament ✦ Working temperature : -50℃∼150℃ ✦ Melting point: 240℃±10℃ ✦ Flame retardant grade: UL94 meets grade V-1 ✦ Wear resistance : ≥ grade 8 ✦ Colors : black+ orange ✦ Certification: RoHS, halogen-free ✦ Cutting tool: hot knife ✦ Usage: the products are widely used in wires, cables, flat harnesses and hoses of high-speed railways, automobiles, automation equipment and instruments, especially in the field of irregular harnesses.

Model	Inner diameter ( mm )	Max harness diameter ( mm )	Packaging ( M / Roll )
WWC—8.0	8	9	100
WWC—10.0	10	11	100
WWC—13.0	13	14	100
WWC—16.0	16	17	50
WWC—19.0	19	20	25
WWC—25.0	25	26	25
WWC—29.0	29	30	25

Shielded self-wind sleeve Tinned Copper

Tinned copper braided mesh is braided by tinned copper wires, and the mesh tube is flexible, wear-resistant and conductive. It can easily tighten various irregular shaped objects, it is not only convenient for threading but also conducts electricity, and it can also maintain softness in a large temperature range. The surface of the product is smooth, the color is bright, and the patterns are various.

Application

Suitable for protecting the cables and wires of electronics, automobiles, aircrafts and household appliances.,etc.

Material	Tinned copper
Working temperature	﹣60℃-+200℃
Melting ponit	232℃
Fire rating	Non-flammable
Certification	ROHS
Standard color	Sliver
Cutting tool	Scissors
