Quick Details
-
Brand Name:
-
HBAN
-
Model Number:
-
HBS1-AGQ19F-22X/31/J/S
-
Mounting hole size:
-
19mm
-
Rating value:
-
5A/250V AC
-
Head type:
-
Selector Switch
-
Operation type:
-
Latching
-
Contact configuration::
-
2NO2NC
-
Operation Position::
-
3position(45°)
-
Base material:
-
PBT
-
Terminal type:
-
Pin terminal
-
Crust material:
-
Stainless steel
-
Certification:
-
UL
Quick Details
-
Max. Current:
-
5A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HBAN
-
Model Number:
-
HBS1-AGQ19F-22X/31/J/S
-
Mounting hole size:
-
19mm
-
Rating value:
-
5A/250V AC
-
Head type:
-
Selector Switch
-
Operation type:
-
Latching
-
Contact configuration::
-
2NO2NC
-
Operation Position::
-
3position(45°)
-
Base material:
-
PBT
-
Terminal type:
-
Pin terminal
-
Crust material:
-
Stainless steel
-
Certification:
-
UL
Product Paramenters
|

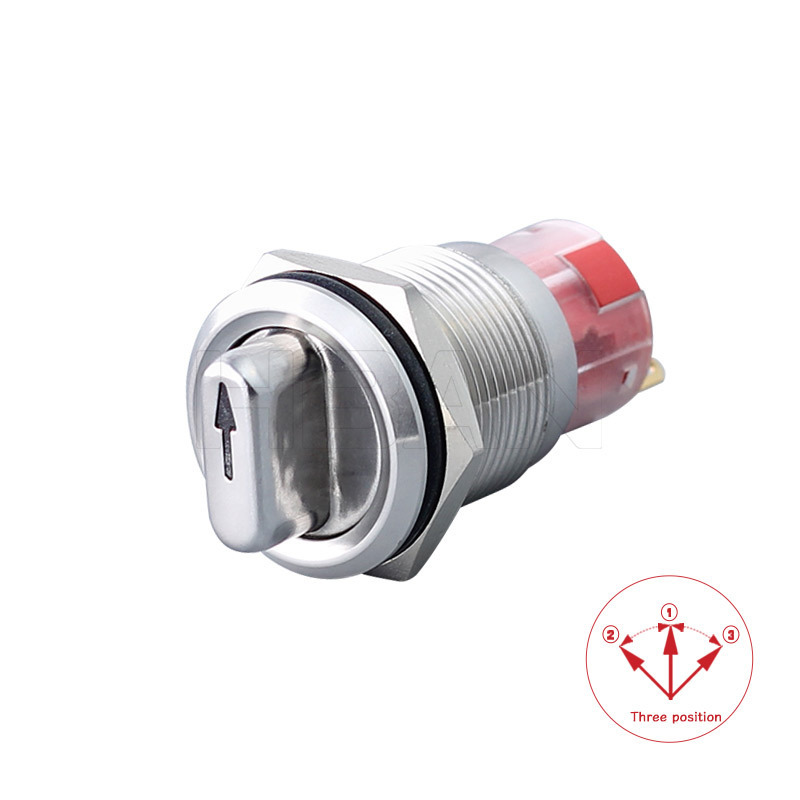

Metal Selector Switch
|
|
|
|
Mounting hole size:
|
19mm
|
|
|
Switch value:
|
5A/250V AC
|
|
|
Operation type:
|
Maintained
|
|
|
Contact configuration:
|
2NO2NC
|
|
|
Type:
|
Selector Switch
|
|
|
Operation Position:
|
2position /3position
|
|
|
Illumination Type:
|
No led/Arrow Indicator
|
|
|
Lamp Color:
|
R G B O W Y
|
|
|
Led voltage:
|
6V 12V 24V 36V 110V 220V
|
|
|
Led life:
|
50,000 hours
|
|
|
Crust material:
|
Stainless steel
|
|
|
Contact material:
|
Silver alloy
|
|
|
Electrical life :
|
≥50,000 times
|
|
|
Mechanical life:
|
≥1，000,000 times
|
|
|
Contact Resistance:
|
≤50mΩ
|
|
|
Insulation Resistance:
|
≥1000mΩ
|
|
|
Operation stroke:
|
0.5mm,3mm
|
|
|
Common problems
|
1.Which mounting hole switch buttons can be produced？
A: metal button mounting hole:(10mm,12mm,16mm,19mm,22mm,25mm,28mm,30mm)Plastic switch pushbutton mounting: (16mm,22mm); Metal indicator light mounting hole:6mm,8mm,10MM,12mm,14mm,16mm,19mm,22mm,25mm;Plastic indicator light mounting hole: 16mm,22mm,30mm,
2.What rated voltage push button switches can be produced?
A: 0.1A/12V,50mA/12V,1A/125V,2A/36V,3A/250V,5A/250V,10A/440V,20A/440V,10A/6-48V;
3.What is the difference between a momentary pushbutton switch and a latching pushbutton switch?
A: Momentary button: Release button immediately recover;Latching button: Need to press the switch again to restore;
4.What is the rating voltage of common push button switch?
A: Usually the push-button switch is 5A/250V and the metal signal light is 20mA/220V;
5.Do knob switches or key switches have any product functions?
A: There are two position types: two-position or three-position;There are only fixed options[Latching];
|
Products Description
Company information
Other imformation
1) Wide product catagory:metal anti vandal push button switch,ip67 waterproof push button switch,push button switch with
illumination,plastic pUsh button switch,indicator light,peizoelectric switch,micro travel switch,buzzer.
2) over 19 years experience of manufacture and selling
3) lowest price from factory
4) up to 5 years product quality warranty
5) safety payment methods including paypal,western union,T/T,moneygram
6) specially customizing products as per your requests
7) products with CCC CE ROHS UL ISO9001 SGS TUV certification
8) reliable shipping means,such as international express(DHL,FEDEX,UPS,TNT EMS),sea-freight,air-freight
1) Wide product catagory:metal anti vandal push button switch,ip67 waterproof push button switch,push button switch with
illumination,plastic pUsh button switch,indicator light,peizoelectric switch,micro travel switch,buzzer.
2) over 19 years experience of manufacture and selling
3) lowest price from factory
4) up to 5 years product quality warranty
5) safety payment methods including paypal,western union,T/T,moneygram
6) specially customizing products as per your requests
7) products with CCC CE ROHS UL ISO9001 SGS TUV certification
8) reliable shipping means,such as international express(DHL,FEDEX,UPS,TNT EMS),sea-freight,air-freight
Product packaging
We pack 40 pieces diameter 19mm rotary into 1 foam box to protect them.Then we packed this foam box into a plastic bag,it will packed into a small box with 3 layers corrugated .Finally ,we packed 20 boxes / 25 boxes into a 5 layers corrugated export carton.
①
Foam box packaging
②
Kraft paper outer box
③
③
Labeling
④
Packaging complete
1.We ship to worldwide
2.Generally,items will be shipped within 3-7 business day on payment received.
3. Delivery time depends on destination and other factors. it may takes up to 3-8
2.Generally,items will be shipped within 3-7 business day on payment received.
3. Delivery time depends on destination and other factors. it may takes up to 3-8
business days.
